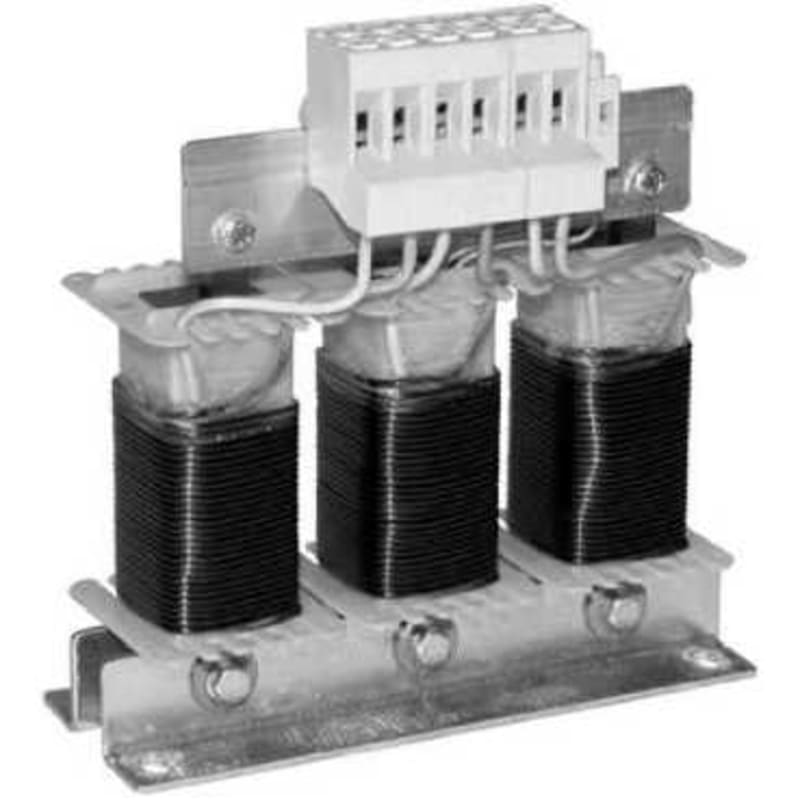

Motordrossel 215A (X3)
Part numberVW3A5104EAN / GTIN3389118065727HS code8504.50
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5104 Motordrossel 215A (X3).
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5104
- EAN / GTIN
- 3389118065727
- Sales unit
- pcs
- Product or component type
- Motor choke
- Range compatibility
- Altivar 61Q; Altivar 71Q; Altivar 212; Altivar 71; Altivar Process ATV600; Altivar Process ATV900; Altivar 61
- Product specific application
- Output filter
- [In] rated current
- 215 A
- Product compatibility
- ATV61HD11N4; ATV61HD15N4; ATV61HD18N4; ATV61HU22S6X; ATV61HU30S6X; ATV61HU40S6X; ATV61HU55N4; ATV61HU55S6X; ATV61HU75N4; ATV61HU75S6X; ATV61WD11N4; ATV61WD11N4C; ATV61WD15N4; ATV61WD15N4C; ATV61WD18N4; ATV61WD18N4C; ATV61WU55N4; ATV61WU55N4C; ATV61WU75N4; ATV61WU75N4C; ATV71HD11N4; ATV71HD11Y; ATV71HD15N4; ATV71HD18N4; ATV71HU15S6X; ATV71HU22S6X; ATV71HU30S6X; ATV71HU40S6X; ATV71HU55N4; ATV71HU55S6X; ATV71HU75N4; ATV71HU75S6X; ATV71PD11N4Z; ATV71PU55N4Z; ATV71PU75N4Z; ATV71WD11N4; ATV71WD15N4; ATV71WD18N4; ATV71WU55N4; ATV71WU75N4; ATV212HU15N4; ATV61HD15Y; ATV61HD18Y; ATV61HD22N4; ATV61HD22Y; ATV61HD30N4; ATV61HD30Y; ATV61HD37N4; ATV61WD22N4; ATV61WD22N4C; ATV61WD30N4; ATV61WD30N4C; ATV61WD37N4; ATV61WD37N4C; ATV71HD15Y; ATV71HD18Y; ATV71HD22N4; ATV71HD22Y; ATV71HD30Y; ATV71HD37N4; ATV71WD30N4; ATV71WD37N4; ATV630 variable speed drive - 2.2 kW, 500...690 V three phase; ATV630 variable speed drive - 3 kW, 500...690 V three phase; ATV630 variable speed drive - 4 kW, 500...690 V three phase; ATV630 variable speed drive - 5.5 kW, 500...690 V three phase; ATV630 variable speed drive - 7.5 kW, 500...690 V three phase; ATV630 variable speed drive - 11 kW, 500...690 V three phase; ATV930 variable speed drive - 2.2 kW, 500...690 V three phase; ATV930 variable speed drive - 3 kW, 500...690 V three phase; ATV930 variable speed drive - 4 kW, 500...690 V three phase; ATV930 variable speed drive - 5.5 kW, 500...690 V three phase; ATV930 variable speed drive - 7.5 kW, 500...690 V three phase; ATV930 variable speed drive - 11 kW, 500...690 V three phase; ATV630 variable speed drive, 3 hp, 600 V three phase; ATV630 variable speed drive, 5 hp, 600 V three phase; ATV630 variable speed drive, 7.5 hp, 600 V three phase; ATV630 variable speed drive, 10 hp, 600 V three phase; ATV630 variable speed drive, 15 hp, 600 V three phase; ATV930 variable speed drive, 3 hp, 600 V three phase; ATV930 variable speed drive, 5 hp, 600 V three phase; ATV930 variable speed drive, 7.5 hp, 600 V three phase; ATV930 variable speed drive, 10 hp, 600 V three phase; ATV930 variable speed drive, 15 hp, 600 V three phase; ATV212HD15M3X; ATV212WD15N4; ATV212WD15N4C; ATV61HC11Y; ATV61HC13Y; ATV61HC16Y; ATV61HD30M3X; ATV61HD37M3X; ATV61HD37Y; ATV61HD45M3X; ATV61HD45N4; ATV61HD45Y; ATV61HD55N4; ATV61HD55Y; ATV61HD75N4; ATV61HD75Y; ATV61HD90N4; ATV61HD90Y; ATV61QC11N4; ATV61QC13Y; ATV61WD45N4; ATV61WD45N4C; ATV61WD55N4; ATV61WD55N4C; ATV61WD75N4; ATV61WD75N4C; ATV61WD90N4; ATV61WD90N4C; ATV71HC11Y; ATV71HC13Y; ATV71HD30M3X; ATV71HD37M3X; ATV71HD37Y; ATV71HD45M3X; ATV71HD45N4; ATV71HD45Y; ATV71HD55N4; ATV71HD55Y; ATV71HD75N4; ATV71HD75Y; ATV71HD90N4; ATV71HD90Y; ATV71QC11Y; ATV71QD90N4; ATV71WD45N4; ATV71WD55N4; ATV71WD75N4; ATV630 variable speed drive - 15 kW, 500...690 V three phase; ATV630 variable speed drive - 18.5 kW, 500...690 V three phase; ATV630 variable speed drive - 22 kW, 500...690 V three phase; ATV630 variable speed drive - 30 kW, 500...690 V three phase; ATV630 variable speed drive - 37 kW, 500...690 V three phase; ATV630 variable speed drive - 45 kW, 500...690 V three phase; ATV630 variable speed drive - 55 kW, 500...690 V three phase; ATV630 variable speed drive - 75 kW, 500...690 V three phase; ATV630 variable speed drive - 90 kW, 500...690 V three phase; ATV930 variable speed drive - 15 kW, 500...690 V three phase; ATV930 variable speed drive - 18.5 kW, 500...690 V three phase; ATV930 variable speed drive - 22 kW, 500...690 V three phase; ATV930 variable speed drive - 30 kW, 500...690 V three phase; ATV930 variable speed drive - 37 kW, 500...690 V three phase; ATV930 variable speed drive - 45 kW, 500...690 V three phase; ATV930 variable speed drive - 55 kW, 500...690 V three phase; ATV930 variable speed drive - 75 kW, 500...690 V three phase; ATV930 variable speed drive - 90 kW, 500...690 V three phase; ATV630 variable speed drive, 20 hp, 600 V three phase; ATV630 variable speed drive, 25 hp, 600 V three phase; ATV630 variable speed drive, 30 hp, 600 V three phase; ATV630 variable speed drive, 40 hp, 600 V three phase; ATV630 variable speed drive, 50 hp, 600 V three phase; ATV630 variable speed drive, 60 hp, 600 V three phase; ATV630 variable speed drive, 75 hp, 600 V three phase; ATV630 variable speed drive, 100 hp, 600 V three phase; ATV930 variable speed drive, 20 hp, 600 V three phase; ATV930 variable speed drive, 25 hp, 600 V three phase; ATV930 variable speed drive, 30 hp, 600 V three phase; ATV930 variable speed drive, 40 hp, 600 V three phase; ATV930 variable speed drive, 50 hp, 600 V three phase; ATV930 variable speed drive, 60 hp, 600 V three phase; ATV930 variable speed drive, 75 hp, 600 V three phase; ATV930 variable speed drive, 100 hp, 600 V three phase
- nedded quantity
- 3
- Electrical connection
- Tag connector M10
- Maximum motor cable length
- 150 m shielded cable P motor 30…45 kW at 200...240 V 1; 300 m unshielded cable P motor 30…45 kW at 200...240 V 1; 200 m shielded cable P motor 5.5…18.5 kW at 380...480 V 1; 300 m unshielded cable P motor 5.5…18.5 kW at 380...480 V 1; 150 m shielded cable P motor 22…30 kW at 380...480 V 1; 300 m unshielded cable P motor 22…30 kW at 380...480 V 1; 150 m shielded cable P motor 45…75 kW at 380...480 V 1; 300 m unshielded cable P motor 45…75 kW at 380...480 V 1; 150 m shielded cable P motor 2.2…7.5 kW at 500...600 V 1; 250 m unshielded cable P motor 2.2…7.5 kW at 500...600 V 1; 250 m shielded cable P motor 2.2…7.5 kW at 500...600 V 2; 400 m unshielded cable P motor 2.2…7.5 kW at 500...600 V 2; 100 m shielded cable P motor 2.2…30 kW at 500...690 V 2; 150 m unshielded cable P motor 2.2…30 kW at 500...690 V 2; 150 m shielded cable P motor 11…30 kW at 500...690 V 2; 250 m unshielded cable P motor 11…30 kW at 500...690 V 2; 150 m shielded cable P motor 30…160 kW at 500...690 V 1; 250 m unshielded cable P motor 30…160 kW at 500...690 V 1; 250 m shielded cable P motor 30…160 kW at 500...690 V 2; 300 m unshielded cable P motor 30…90 kW at 500...690 V 2; 400 m unshielded cable P motor 90…160 kW at 500...690 V 2; 200 m shielded cable P motor 37 kW at 380...480 V 1; 300 m unshielded cable P motor 37 kW at 380...480 V 1; 200 m shielded cable P motor 90 kW at 380...480 V 1; 300 m unshielded cable P motor 90 kW at 380...480 V 1
- dv/dt
- 500 V/µs max at 400 V; 750 V/µs max at 500 V; 1000 V/µs max at 690 V
- Thermal losses
- 430 W
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C
- Product weight
- 15.5 kg
- IP degree of protection
- IP20 (with kits VW3A9612,613); IP00
- Ambient air temperature for storage
- -25…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 40.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 40.000 cm
- Package 1 Weight
- 18.000 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 2
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 44.500 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Reactance coil
- Accessory
- Yes
- Spare part
- No
