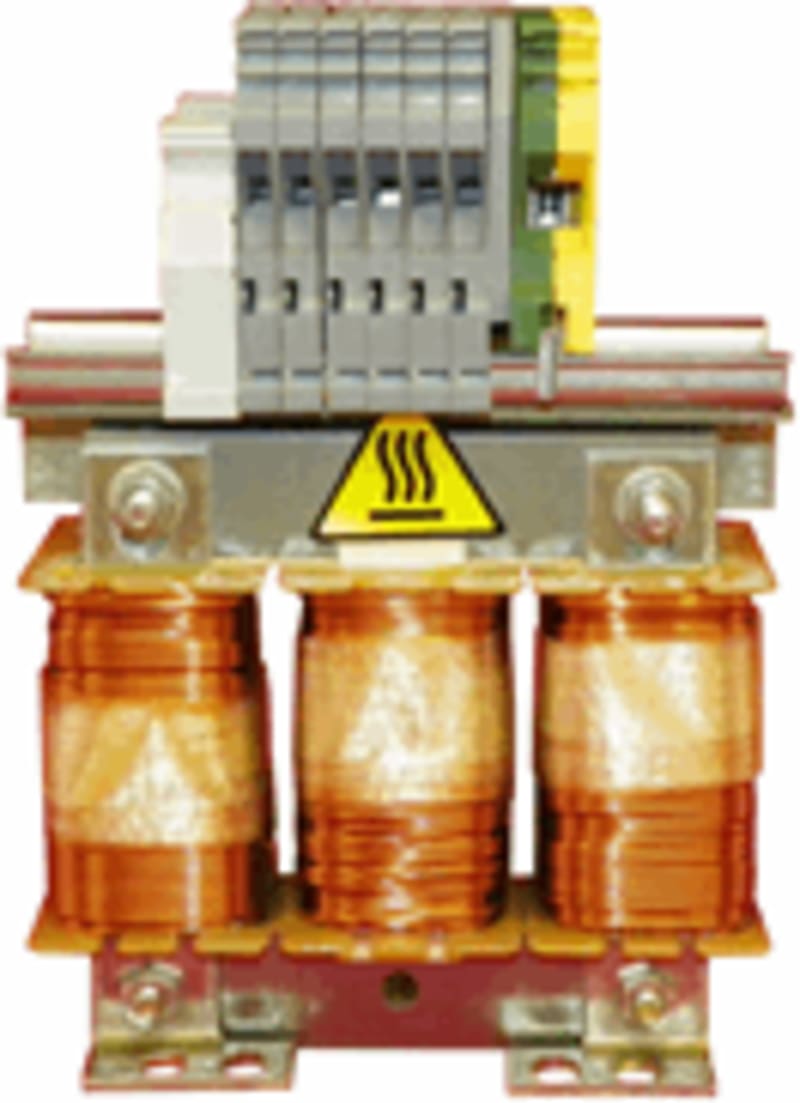

AC Nettdrossel 2MH 16A

Schneider Electric VW3A4553 AC nettdrossel 2MH 16A.

Manufacturer part number (MPN)

VW3A4553 EAN / GTIN: 3389118066038 Sales unit: pcs Package quantity: 12 pcs Rated current: 16 A Range of product: Altivar Product or component type: Line/motor choke Product compatibility: Variable speed drive ATV340 motor: 4 kW 380...480 V - line choke - 1 per drive; ATV31CU22M2 - motor choke - 1 per drive; ATV31CU55N4 - line choke - 1 per drive; ATV31CU55N4 - motor choke - 1 per drive; ATV31CU75N4 - line choke - 1 per drive; ATV61HD11Y - line choke - 1 per drive; ATV61HD15Y - line choke - 1 per drive; ATV61HU30M3 - line choke - 1 per drive; ATV61HU55N4 - line choke - 1 per drive; ATV61HU75N4 - line choke - 1 per drive; ATV61WU55N4 - line choke - 1 per drive; ATV61WU55N4C - line choke - 1 per drive; ATV61WU75N4 - line choke - 1 per drive; ATV61WU75N4C - line choke - 1 per drive; ATV71HD11Y - line choke - 1 per drive; ATV71HD15Y - line choke - 1 per drive; ATV71HU30M3 - line choke - 1 per drive; ATV71HU55N4 - line choke - 1 per drive; ATV71HU75N4 - line choke - 1 per drive; ATV71PU55N4Z - line choke - 1 per drive; ATV71PU75N4Z - line choke - 1 per drive; ATV71WU55N4 - line choke - 1 per drive; ATV71WU75N4 - line choke - 1 per drive; LXM05D42M3X - line choke - 1 per drive; ATV12HU22M2 - motor choke - 1 per drive; ATV12HU22M3 - motor choke - 1 per drive; ATV312HD11S6 - line choke - 1 per drive; ATV312HU22M3 - line choke - 1 per drive; ATV312HU30M3 - line choke - 1 per drive; ATV312HU55N4 - line choke - 1 per drive; ATV312HU75N4 - line choke - 1 per drive; ATV312HU75S6 - line choke - 1 per drive; ATV71HU75S6X - line choke - 1 per drive; ATV312HU22M3 - motor choke - 1 per drive; ATV312HU30M3 - motor choke - 1 per drive; ATV312HU55N4 - motor choke - 1 per drive; ATV312HU75S6 - motor choke - 1 per drive; ATV312HU22M2 - motor choke - 1 per drive; ATV12HU30M3 - motor choke - 1 per drive; ATV12PU22M3 - motor choke - 1 per drive; ATV12PU30M3 - motor choke - 1 per drive; ATV61HU75S6X - line choke - 1 per drive; ATV32HU55N4 - line choke - 1 per drive; ATV32HU75N4 - line choke - 1 per drive; ATV32HU22M2 - motor choke - 1 per drive; ATV32HU55N4 - motor choke - 1 per drive; LXM32.D12N4 - line choke - 1 per drive; LXM32.U60N4 - line choke - 1 per drive; Variable speed drive ATV310 motor: 4 kW - line choke - 1 per drive; Variable speed drive ATV310 motor: 5.5 kW - line choke - 1 per drive; Variable speed drive ATV310 motor: 5.5 kW - motor choke - 1 per drive; Variable speed drive ATV340 motor: 5.5 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV340 motor: 7.5 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 380...500 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 2.2 kW 200...240 V - single phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 5.5 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - motor choke - 1 per drive; Variable speed drive ATV630 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 10 hp - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 15 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 10 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 15 hp - 1 per drive; Variable speed drive ATV310L motor: 0.75 kW; Variable speed drive ATV310L motor: 1.5 kW; Variable speed drive ATV310L motor: 2.2 kW; Variable speed drive ATV310L motor: 3.0 kW; Variable speed drive ATV310L motor: 4.0 kW; Variable speed drive ATV310L motor: 5.5 kW number of phases: Three phase Range compatibility: Altivar 61; Altivar Process ATV900; Lexium 05; Altivar 312 Solar; Altivar Process ATV600; Altivar 32; Altivar 71; Lexium 62; Easy Altivar 310; Altivar 12; Altivar 31C; Lexium 52; Altivar 312; Lexium 32; Altivar Machine ATV320; Altivar Machine ATV340; Easy Altivar 310L Device application: Reduction of current harmonics; Reduction of overvoltages at motor terminals Value of inductance: 2 mH [In] rated current: 17 A Thermal losses: 75 W Electrical connection: Terminal 6 mm² / 8 AWG, 0.8…1 N.m power supply frequency: 50...60 Hz Max current: 1.65 x nominal current (duration = 60 s) Maximum voltage drop at rated load: 5 % Electrical insulation class: Class F minimum clearance distance: 5.5 mm IEC 60664 Leakage distance: 11.5 mm conforming to IEC 60664 Product weight: 3.5 kg Width: 130 mm Height: 155 mm Depth: 90 mm Standards: VDE 0160 level 1; EN 50178; IEC 60076 (with HD398) IP degree of protection: Choke: IP00; Terminals: IP20 Environmental characteristic: 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3 Pollution degree: 2 conforming to EN 50178 Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 0…95 % Ambient air temperature for operation: 45…55 °C (with current derating of 2 % per °C); 0…45 °C (without current derating) Ambient air temperature for storage: -25…70 °C Operating altitude: <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m Country of origin: CZ Warranty (in months): 18 Suitable as interference suppression reactance coil: No Suitable as net reactance coil: Yes Suitable as commutation reactance coil: No Suitable as ripple filter choke: No Suitable as output reactance coil: Yes Number of poles, primary side: 3 Rated operating frequency: 50–60 Hz Max. rated operation voltage Ue: 690 V Rated current AC: 17 A Rated inductance: 2 mH Degree of protection (IP): IP00 Relative short circuit voltage: 0 %

HS Code

8504.50

• EAN 3389118066038
• SAP 1000086169
