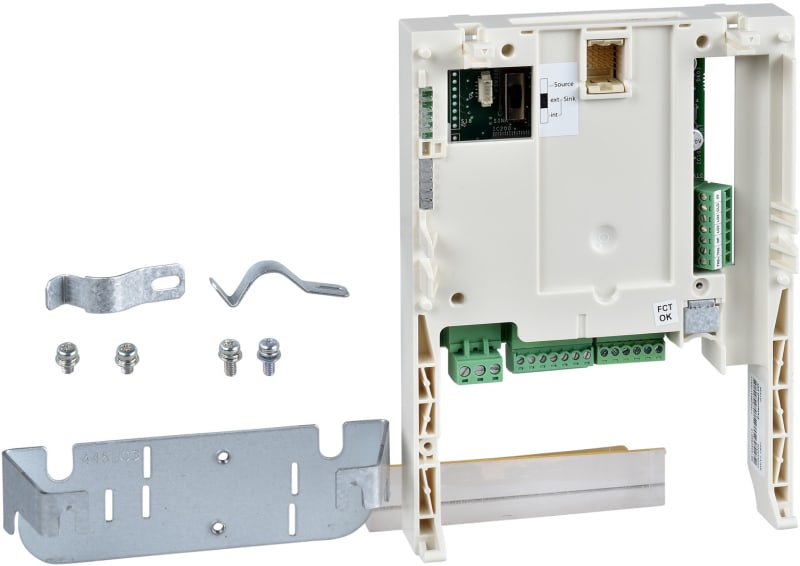

analogue/Logic UTV.SHORT (VW3A3202)

Schneider Electric extended In/O card - for ATV61/ATV71.

Manufacturer part number (MPN)

VW3A3202 EAN / GTIN: 3389118067110 Sales unit: pcs Package quantity: 7 pcs Product or component type: Extended I/O card Range compatibility: Altivar 61Q; Altivar Lift; Altivar 71Q; Altivar 71; Altivar 61 Supply: Internal supply for reference potentiometer, 10.5 V DC (10…11 V) , <0.01 A, impedance: 1…10 kOhm for overload and short-circuit protection; Internal supply, 24 V DC (21…27 V) , <0.2 A for overload and short-circuit protection Analogue input number: 2 Analogue input type: AI3-/Al3+ differential current programmable: 0...20 mA, impedance: 250 Ohm, sampling time: 4…6 ms, resolution: 11 bits + sign; AI4 software-configurable current: 0...20 mA, impedance: 250 Ohm, sampling time: 4…6 ms, resolution: 11 bits; AI4 software-configurable voltage: 0...10 V DC, 24 V max, impedance: 30000 Ohm, sampling time: 4…6 ms, resolution: 11 bits Analogue output number: 2 Analogue output type: AO2 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4…6 ms, resolution: 10 bits; AO2 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4…6 ms, resolution: 10 bits; AO3 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4…6 ms, resolution: 10 bits; AO3 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4…6 ms, resolution: 10 bits Discrete output number: 5 Discrete output type: (LO3, LO4) assignable logic, sampling time: 4…6 ms, compatible with level 1 PLC; (R4A, R4B, R4C) configurable relay logic Discrete output logic: (LO3, LO4) negative; (LO3, LO4) positive Discrete input number: 6 Discrete input type: (RP) frequency control, sampling time: 4…6 ms; (LI11...LI14) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 4…6 ms Discrete input logic: Negative (LI11...LI14), >= 16 V (state 0), = 11 V (state 1); Positive (RP), = 3.5 V (state 1) Electrical durability: 100000 cycles for configurable relay logic Discrete output voltage: 24 V DC (voltage limits: <= 30 V) assignable logic Maximum output current: 0.2 A, assignable logic minimum switching current: 3 mA at 24 V DC for configurable relay logic Maximum switching current: Configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1; Configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1; Configurable relay logic 1.5 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms; Configurable relay logic 1.5 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms PTC probe input: TH2+, TH2- trip resistance, impedance: 3 kOhm; TH2+, TH2- reset resistance, impedance: 1.8 Ohm; TH2+, TH2- short circuit protection, impedance: < 0.05 Ohm; TH2+, TH2- for 6 PTC probe, impedance: <= 1.5 Ohm Discrete input voltage: 24 V DC (voltage limits: <= 30 V) for programmable Discrete input frequency: 0...30 kHz frequency control Electrical connection: Terminal, 1.5 mm² / 16 AWG, 0.25 N.m Product weight: 0.3 kg Number of Units in Package 1: 1 Number of Units in Package 2: 7 Country of origin: ID Warranty (in months): 18 Accessory: Yes Spare part: No

HS Code

8537.10

• EAN 3389118067110
• SAP 1000069183
• Code 8764507
