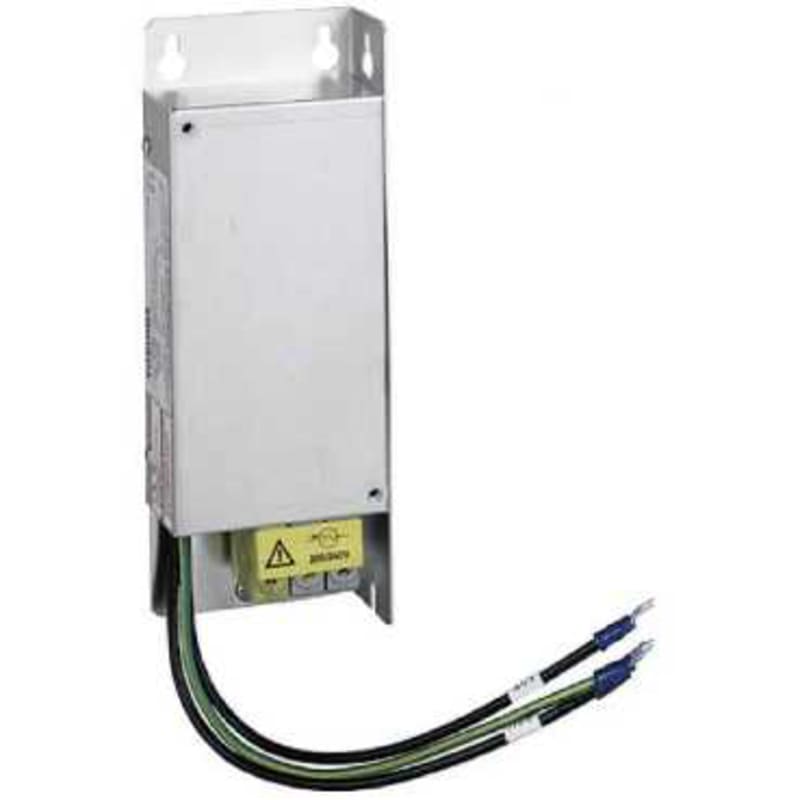

Schneider Electric additionnal EMC input filter - 3-Phase supply - 47 A VW3A31407
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A31407 EMC filter ATV31, 3 X 230/400V, 47A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A31407
- EAN / GTIN
- 3389110690729
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Voltage
- 230/400 V
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Lexium 05; Lexium 23 Plus; Altivar Machine ATV320; Altivar 212; Altivar 312; Altivar 31C; Altivar 312 Solar
- Product compatibility
- Servo drive LXM23 motor: 7.5 kW; ATV212HD11N4; ATV212HU55M3X; ATV212HU75M3X; ATV212HU75N4; ATV31CU55N4; ATV31CU75N4; LXM05AD57N4; LXM05BD57N4; LXM05CD57N4; ATV312HU55M3; ATV312HU75M3; ATV312HU55N4; ATV312HU75N4; Variable speed drive ATV320...C motor: 5.5 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 7.5 kW, 200...240 V three phase
- Product specific application
- Radio interference input filter
- [In] rated current
- 47 A
- Thermal losses
- 1.9 W for ATV21HU75N4; 19.3 W for ATV31CU55N4; 3.7 W for ATV21HU55M3X; 3.9 W for ATV21HD11N4; 6.8 W for ATV21HU75M3X
- Network number of phases
- Three phase
- Electrical connection
- Terminal 25 mm² 2 AWG
- Tightening torque
- 4.5 N.m
- maximum earth leakage current
- 45 mA 50 Hz; 20.6 mA at 480 V 60 Hz; 42.8 mA at 480 V 60 Hz
- power supply voltage
- 200…240 V; 380…500 V
- Tolerance
- 10 %
- Product weight
- 3.15 kg
- IP degree of protection
- IP20; IP41 (upper part)
- Relative humidity
- 0…93 % conforming to IEC 68-2-3
- Ambient air temperature for operation
- -10…50 °C
- Ambient air temperature for storage
- -25…70 °C
- Operating altitude
- <= 1000 m without current derating; <= 1000 m without derating; 1000...3000 m with current derating 1 % per 100 m
- Vibration resistance
- 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Standards
- IEC 61800-3
- Country of origin
- TH
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3389110690729
- SAP 1000257615
- Code 8141304
Product Documentation
