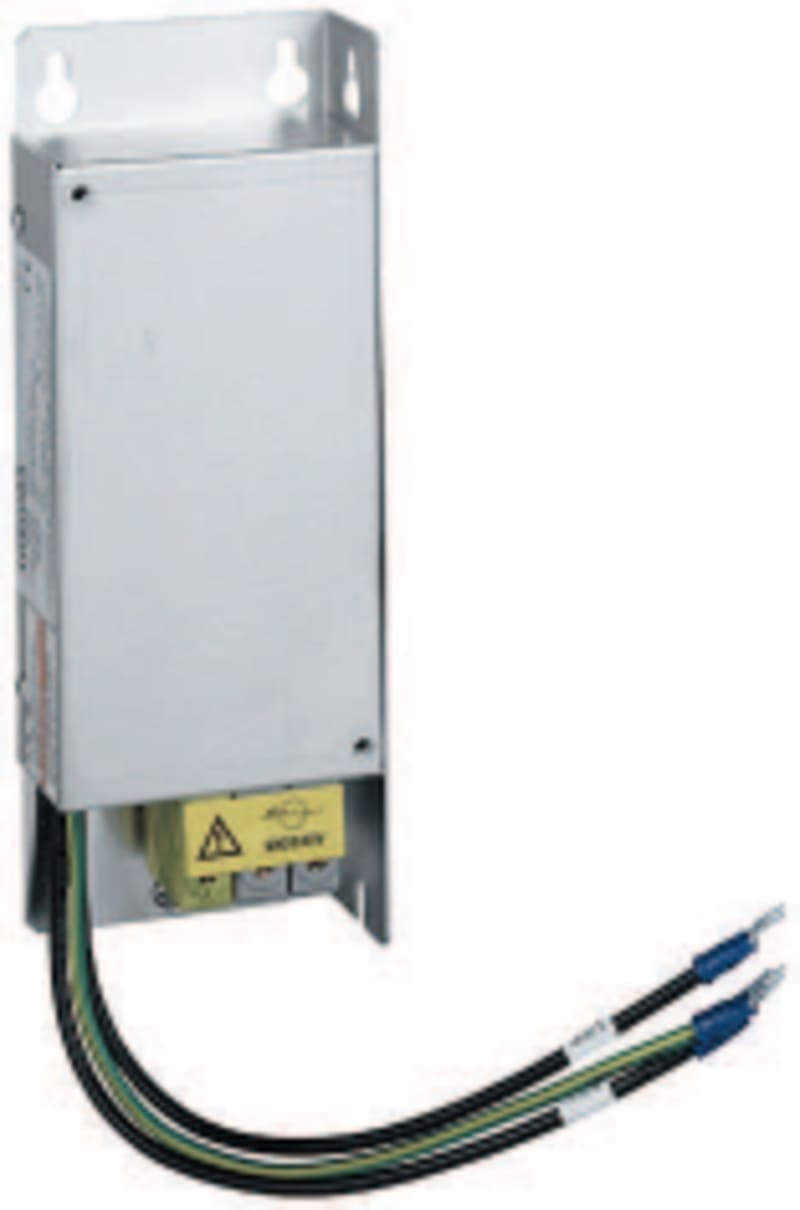

Schneider Electric additionnal EMC filter S6 M2 - 1-Phase supply - 16 A VW3A31403

Schneider Electric VW3A31403 EMC filter ATV31, 1 X 230V,16A.

Manufacturer part number (MPN)

VW3A31403

EAN / GTIN

3389110689075

Sales unit

pcs

Package quantity

7 pcs

Voltage

230 V

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Lexium 05; Altivar 312; Altivar 31C; Lexium 23 Plus; Altivar 312 Solar; Altivar Machine ATV320

Product compatibility

Servo drive LXM23 motor: 0.75 kW; Servo drive LXM23 motor: 1 kW; Servo drive LXM23 motor: 1.5 kW; ATV312HU11M2; ATV312HU15M2; ATV31CU11M2; ATV31CU15M2; LXM05AD17F1; LXM05AD17M2; LXM05BD17F1; LXM05BD17M2; LXM05CD17M2; Variable speed drive ATV320...C motor: 1.1 kW, 200...240 V single phase; Variable speed drive ATV320...C motor: 1.5 kW, 200...240 V single phase; Variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 200...240 V single phase; Variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 200...240 V single phase

Product specific application

Radio interference input filter

[In] rated current

16 A

Thermal losses

6.9 W for ATV31CU11M2

Network number of phases

Single phase

maximum earth leakage current

150 mA 50 Hz

power supply voltage

200…240 V

Tolerance

10 %

Product weight

0.775 kg

IP degree of protection

IP20; IP41 (upper part)

Relative humidity

0…93 % conforming to IEC 68-2-3

Ambient air temperature for operation

-10…50 °C

Ambient air temperature for storage

-25…70 °C

Operating altitude

<= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Standards

IEC 61800-3

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

7326.90
