SOFT Starter 12A 110-480V

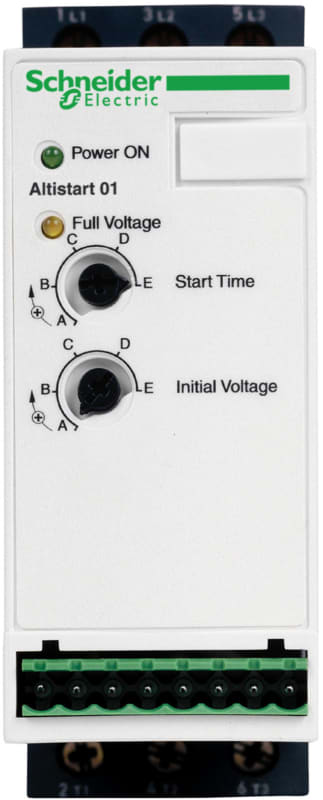

Schneider Electric ATS01N112FT Soft starter 12A 110-480V.

Manufacturer part number (MPN)

ATS01N112FT

EAN / GTIN

3389110667165

Sales unit

pcs

Package quantity

14 pcs

Voltage

110-480 V

Rated current

12 A

Range of product

Altistart 01

Product destination

Asynchronous motors

Product or component type

Soft starter

Product specific application

Simple machine

Device short name

ATS01

Network number of phases

1 phase

[Us] rated supply voltage

110...480 V - 10...10 %

Motor power kW

2.2 kW, 3 phases at 230 V; 5.5 kW, 3 phases at 400 V; 1.5 kW, 1 phase at 230 V

Motor power hp

3 hp, 3 phases at 230 V; 1.5 hp, 3 phases at 210 V; 7.5 hp, 3 phases at 460 V

IcL starter rating

12 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current consumption

60 A at nominal load

Type of start

Start with voltage ramp

Power dissipation in W

1 W at full load and at end of starting; 61 W in transient state

Assembly style

With heat sink

Function available

Integrated bypass

Supply voltage limits

99…528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

output voltage

<= power supply voltage

[Uc] Control circuit voltage

110 V AC +/- 10 % at 35 mA; 24 V AC/DC +/- 10 % at 30 mA; 240 V AC +/- 10 % at 80 mA

Starting time

1 s / 100; 5 s / 20; Adjustable from 1 to 5 s

Starting torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete output current

2 A DC-13; 3 A AC-15

Tightening torque

1.9…2.5 N.m; 0.5 N.m

Electrical connection

4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit; Screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuit; Screw connector - rigid 2 0.5...1 mm² 17 AWG control circuit; Screw connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit; 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit; Screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuit; 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit; Screw connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit

Marking

CE

Operating position

Vertical +/- 10 degree

Height

124 mm

Width

45 mm

Depth

131 mm

Product weight

0.28 kg

Compatibility code

ATS01N1

Power range

1.1…2 kW at 200…240 V 1 phase; 2.2…3 kW at 200…240 V 3 phases; 4…6 kW at 380…440 V 3 phases

Motor starter type

Soft starter

Electromagnetic compatibility

Conducted and radiated emissions level B conforming to CISPR 11; Conducted and radiated emissions level B conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-2; EMC immunity level 3 conforming to EN 50082-1; EMC immunity level B conforming to EN 50082-2; Harmonics level 3 conforming to IEC 1000-3-2; Harmonics level 3 conforming to IEC 1000-3-4; Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11; Voltage/current impulse level 3 conforming to IEC 61000-4-5

Standards

EN/IEC 60947-4-2

Product certifications

C-Tick; CCC; UL; CSA; GOST

IP degree of protection

IP20

Pollution degree

2 conforming to EN/IEC 60947-4-2

Vibration resistance

1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Relative humidity

5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

Ambient air temperature for operation

-10…40 °C (without derating); 40…50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25…70 °C conforming to EN/IEC 60947-4-2

Operating altitude

1000 m with current derating of 2.2 % per additional 100 m

Country of origin

DE

Warranty (in months)

18

Function

Single direction

With display

No

Rated operating voltage Ue

110–480 V

Rated control supply voltage AC 50 Hz

110–240 V

Rated control supply voltage AC 60 Hz

110–240 V

Rated control supply voltage DC

24 V

Degree of protection (IP)

IP20

Rated operation current Ie at 40 °C Tu

12 A

Rated power three-phase motor, inline, at 230 V

2.2 kW

Rated power three-phase motor, inline, at 400 V

5.5 kW

Rated surrounding temperature without derating

40 °C

Integrated motor overload protection

No

Voltage type for actuating

AC/DC

Internal bypass

Yes

Torque control

No

HS Code

8537.10
