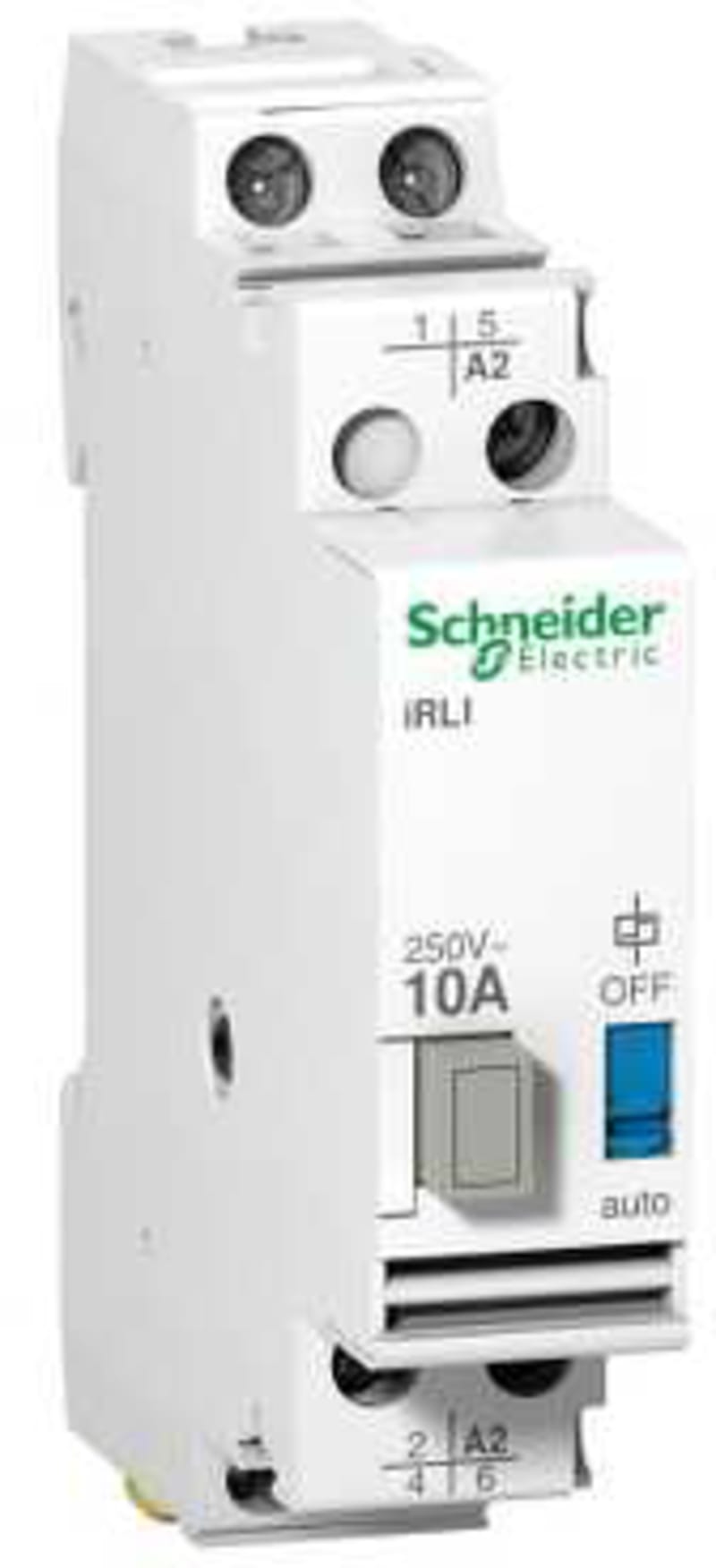

Schneider Electric Changeover relay iRLI 10A 2P Uc 230V-240VAC Ue 250VAC A9E15535

Schneider Electric A9E15535 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Hjelperelè iRLI 10A 1NC+1CO 240VAC.

Manufacturer part number (MPN)

A9E15535

EAN / GTIN

3606480377310

Sales unit

pcs

Package quantity

12 pcs

Voltage

240 V AC

Rated current

10 A

Contact configuration

1 NC

range of product

Acti9

Product name

Acti9 iRLI

Product or component type

Relay

Device short name

iRLI

Device application

Changeover relay

Signal contacts composition

1 C/O + 1 NO

[Uc] control circuit voltage

230...240 V AC 50/60 Hz

[Ie] rated operational current

10 A at 230 V AC (cos Phi = 1)

[Ui] rated insulation voltage

250 V AC

Supply holding power

4 VA

Supply inrush power

4 VA

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Height

88 mm

Width

18 mm

Depth

70 mm

Product weight

0.112 kg

Colour

White

Electrical durability

AC-21: 100000 cycles

Connections - terminals

Tunnel type terminals 0.5…6 mm²

Standards

NF C 45-250; IEC 255

IP degree of protection

IP20

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…70 °C

Warranty (in months)

18

Function

Mechanical

Mounting method

DIN rail

Width in number of modular spacings

1

Built-in depth

65.5 mm

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Control voltage 1

230–240 V

Type of control voltage 1

AC

Frequency control voltage 1

50–60 Hz

Type of control voltage 2

AC

Supply voltage

230 V

Voltage type (supply voltage)

AC

Max. incandescent lamp load

2300 W

Country of origin

Belgium

HS Code

8536.49
