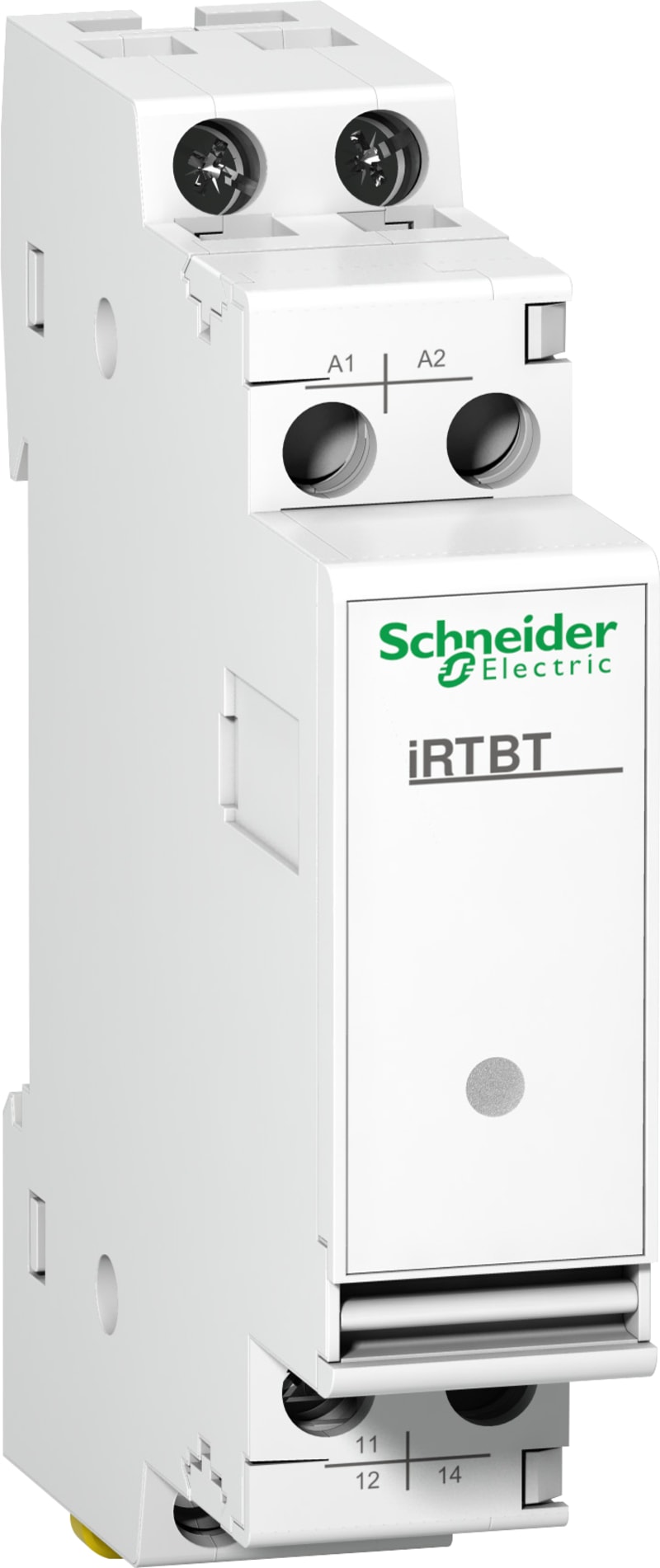

Schneider Electric Extra low voltage relay iRTBT - 10MA/10VDC - 5A/250VAC - 12...24 VAC/DC A9A15416

Schneider Electric A9A15416 Gr.snittrelè iRTBT 12-24/5mA 5V.

Manufacturer part number (MPN)

A9A15416

EAN / GTIN

3606480097720

Sales unit

pcs

Package quantity

12 pcs

Range

Acti9

Product name

Acti9 iRTBT

Product or component type

Relay

Device short name

iRTBT

Device application

Extra low voltage interface relay

Function available

Actuation of LV circuits based on an extra low voltage order

Signal contacts composition

1 C/O

[Uc] control circuit voltage

12...24 V AC; 12...24 V DC

[Ie] rated operational current

5 A at 250 V AC; 0.01 A at 10 V DC

[Ui] rated insulation voltage

4000 V

Local signalling

LED green for power ON

Supply holding power

0.22 W

Supply inrush power

0.11 W

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Colour

White

Electrical durability

100000 cycles

Connections - terminals

Tunnel type terminals

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

108

Warranty (in months)

18

Function

Partially electronic

Mounting method

DIN rail

Width in number of modular spacings

2

Built-in depth

65.5 mm

Number of contacts as change-over contact

1

Control voltage 1

12–24 V

Type of control voltage 1

AC

Frequency control voltage 1

50–60 Hz

Control voltage 2

12–24 V

Type of control voltage 2

DC

Rated current

5 A

Supply voltage

10–250 V

Voltage type (supply voltage)

AC

Max. switching current (cos phi = 0.6)

5 A

Country of origin

France

HS Code

8536.49

• EAN 3606480097720
• SAP 1000419412
• Code 8503162
