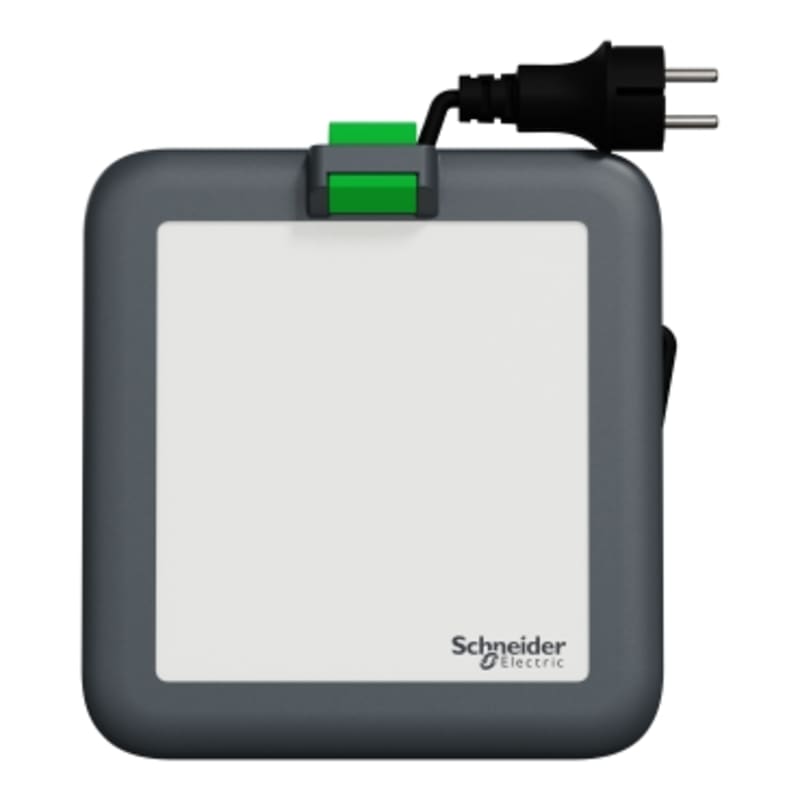

Schneider Electric Worklamp, Thorsman, 18W, 2100 lumen, 4000K, 2 Pin Plug without earth IMT47270
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT47270 Work Light, Thorsman, LED, 18W, 2100lm, 4000K, IP65.
Technical Specifications
- Manufacturer part number (MPN)
- IMT47270
- EAN / GTIN
- 3606482183896
- Sales unit
- pcs
- Package quantity
- 7 pcs
- IP rating
- IP65
- Power
- 18 W
- Range
- Thorsman
- Range of product
- Thorsman Worklights
- Product or component type
- Work lamp
- Device application
- Lighting
- Light source
- LED 18 W
- [Ue] rated operational voltage
- 220...240 V
- Network type
- AC
- Network frequency
- 50...60 Hz
- Operational power in W
- 18 W
- Plug pole configuration
- 2P
- Plug standard
- Schuko
- Luminous flux
- 2100 lm
- Bulb lifespan
- 50000 h
- Colour rendering index
- R a =80
- Colour temperature
- 4000 K
- Housing material
- PC + rubber
- Height
- 210 mm
- Width
- 200 mm
- Depth
- 64.5 mm
- Product weight
- 1.2 kg
- IP degree of protection
- IP65
- Ambient air temperature for operation
- -25…40 °C
- Warranty (in months)
- 18
- Conductor cross section
- 1 mm²
- Suitable for lamp power
- 18 W
- With socket outlet
- No
- Colour rendering index CRI
- 80-89
- Number of poles
- 2
- Lamp type
- LED not exchangeable
- Connection cable length
- 3 m
- Impact strength
- IK08
- Nominal voltage
- 3.7 V
- Degree of protection (IP)
- IP65
- With protective cover
- No
- With light source
- Yes
- With stand holder
- No
- Rated luminous flux according to IEC 62722-2-1
- 2100 lm
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Colour of stand
- Green
- With stand
- Yes
- With wheels
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606482183896
- SAP 1200634756
- Code 83047907
Product Documentation
