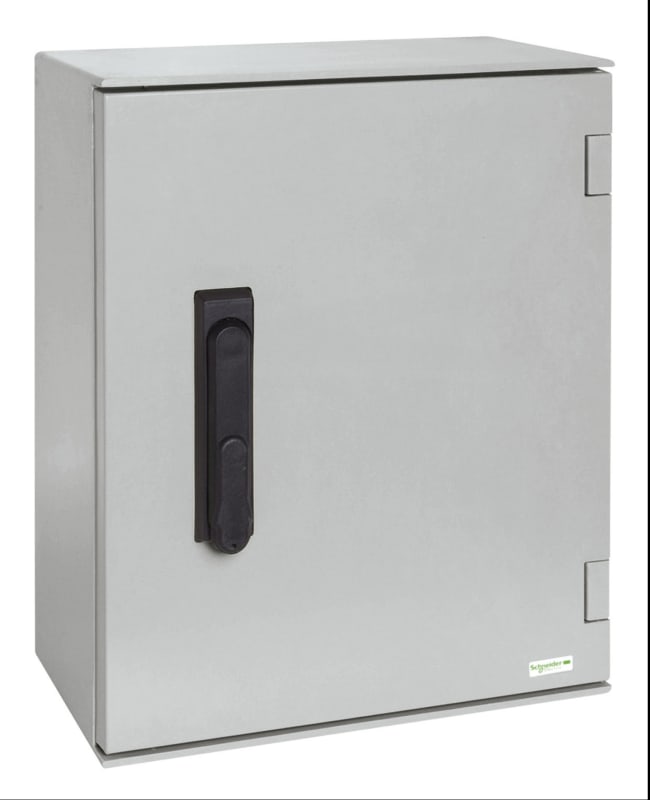

Schneider Electric wall-mounting enclosure polyester monobloc IP66 H747XW536XD300MM 3POINTS lock NSYPLM75VG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLM75VG — wall-mounting enclosure polyester monobloc IP66 H747xW536xD300mm 3points lock.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLM75VG
- EAN / GTIN
- 3606480776748
- Sales unit
- pcs
- Dimensions
- 745×536×300
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 747 mm
- Nominal width
- 536 mm
- Nominal depth
- 300 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 1 handle lock
- Door type
- Plain
- Lock type
- 3 points lock, handle with 1242E key lock
- Number of locks
- 1
- Mounting plate description
- Without mounting plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 33.000 cm
- Package 1 Width
- 56.000 cm
- Package 1 Length
- 81.000 cm
- Package 1 Weight
- 15.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 8
- Package 2 Height
- 124.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 134.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 536 mm
- Height
- 747 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of doors
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 706 N
- Max. permitted load of the door(s) according to IEC 62208
- 143 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776748
- SAP 1000752644
- Code 8489633
Product Documentation
More from Schneider Electric
Schneider Electric

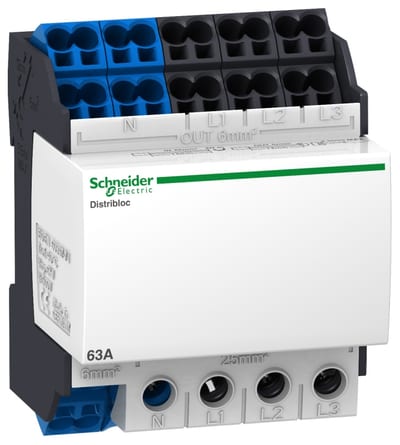

Schneider Electric Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connect bottom LVS04041
Schneider Electric

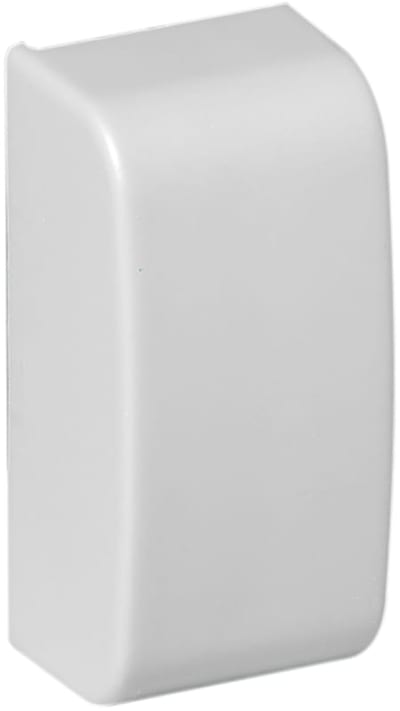

OL MINI 1820 L-Piece Pure white
ISM14304P
Schneider Electric
Interpact INS125, 4P
28911
Schneider Electric

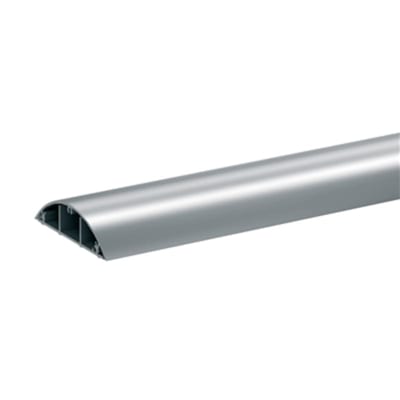

Schneider Electric OptiLine 50 - floor feeder with cover and floor fixing element - 18X75 ISM20857
Schneider Electric
Wall bracket 10 MM, SET À 4 PCS.
NSYAEFPFSC
Schneider Electric

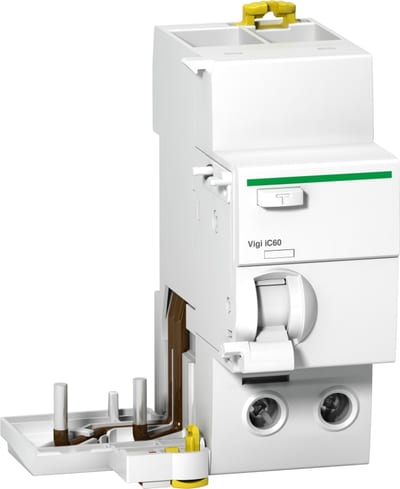

VIGI IC60 2P 25A 30MA A
