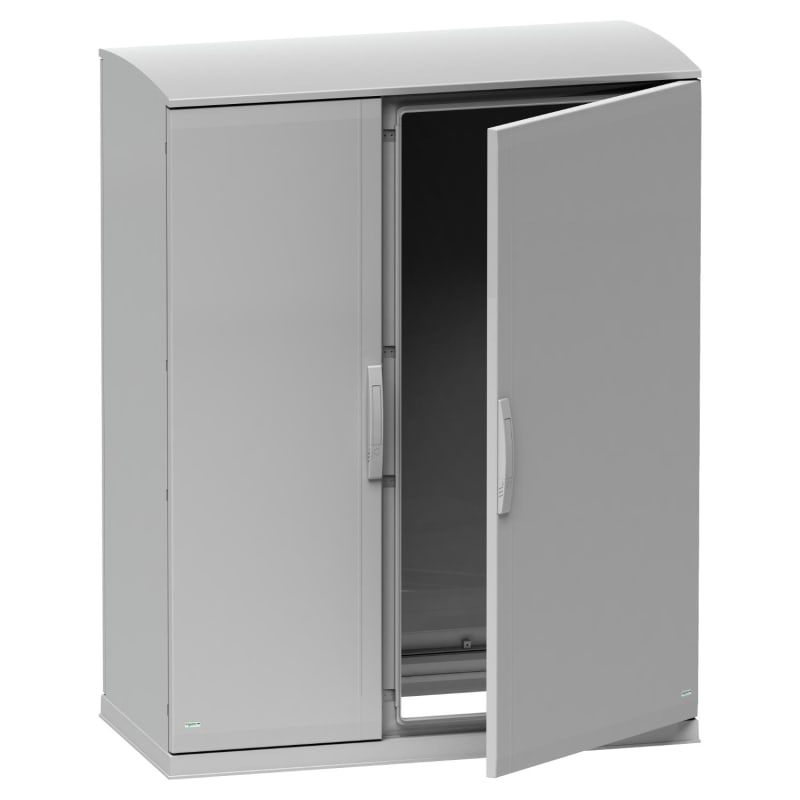

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500X1000X420 IP44 NSYPLAZT15104G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLS REGNT TO.SOK 7035 1500X1000X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT15104G
- EAN / GTIN
- 3606480776120
- Sales unit
- pcs
- Package quantity
- 2 pcs
- IP rating
- IP44
- Dimensions
- 1500×1000×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1500 mm
- Nominal width
- 1000 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Bottom; Top; Front; Rear
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1500 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1755 N
- Max. permitted load of the door(s) according to IEC 62208
- 431 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776120
- SAP 1000752582
- Code 8486568
Product Documentation
More from Schneider Electric
Schneider Electric
Sign Frame flush grey with sign (ZBYF2304C0)
Schneider Electric
Schneider Electric PanelSet SF external fixing side panels - 1400X400 mm NSY2SP144
Schneider Electric
Schneider Electric controller M221 24 IO transistor PNP Ethernet TM221CE24T
Schneider Electric
Cross-arm F.19" Frame (NSYRCKS6)
Schneider Electric

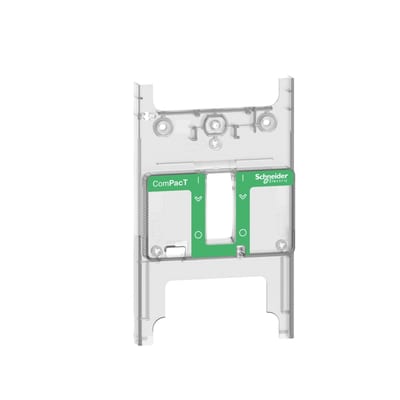

Retrofit Front Cover 3P NSXm (LV426946T)
Schneider Electric

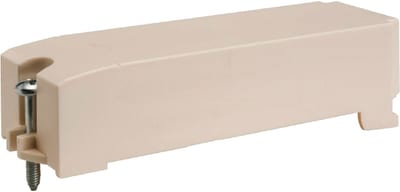

M340 Cover plate EMPTY KORTPL,5 ST
BMXXEM010
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160H, 70KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 125A, EverLink lugs C12H4TM125L
Schneider Electric

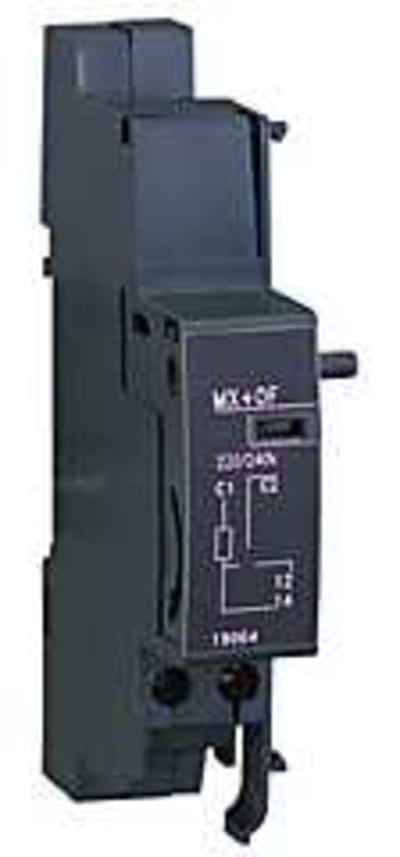

Mx+of 24VAC/DC UTL.F/NG125
