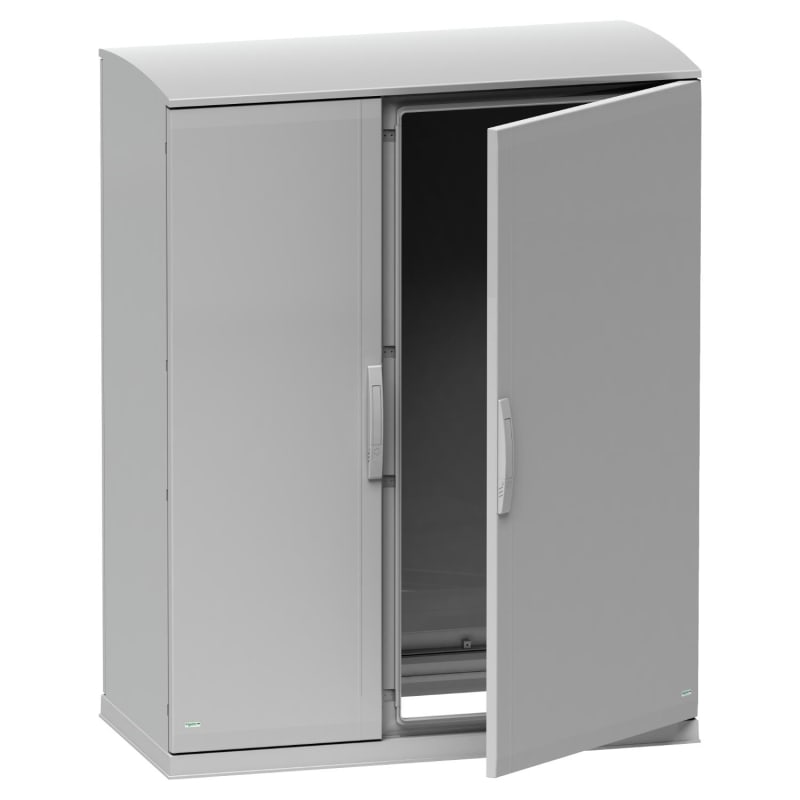

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X1000X420 IP44 NSYPLAZT10104G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLS REGNT TO.SOK 7035 1000X1000X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT10104G
- EAN / GTIN
- 3606480775963
- Sales unit
- pcs
- Package quantity
- 2 pcs
- IP rating
- IP44
- Dimensions
- 1000×1000×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1000 mm
- Nominal width
- 1000 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Rear; Front; Top; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1295 N
- Max. permitted load of the door(s) according to IEC 62208
- 294 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775963
- SAP 1000752566
- Code 8487497
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Vigi IC60 - earth leakage add-on block - 4P - 25A - 30MA - SI type A9V61425
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 3 poles, MicroLogic 6.2E trip unit 160A C25R36E160
Schneider Electric
Pilot Light Head,WHITE
ZA2BV01
Schneider Electric

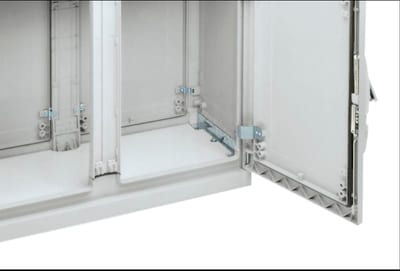

Cablepl. 7035 FOR750X420 PLA
NSYECPLAZ74G
Schneider Electric

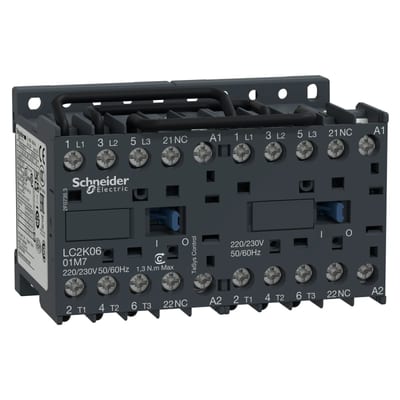

Schneider Electric reversing Contactor, TeSys K, 3P, AC-3/AC-3E,440V 6A, 1NC, 24V AC coil, screw clamp terminals LC2K0601B7
Schneider Electric

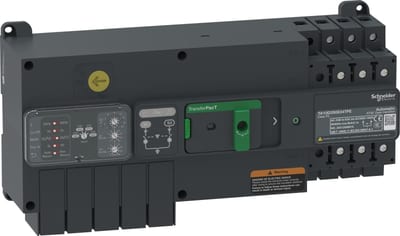

Schneider Electric transfer switch, TransferPacT automatic, 32A, 400V, 3P, rotary, frame 100A TA10D3S0324TPE
Schneider Electric

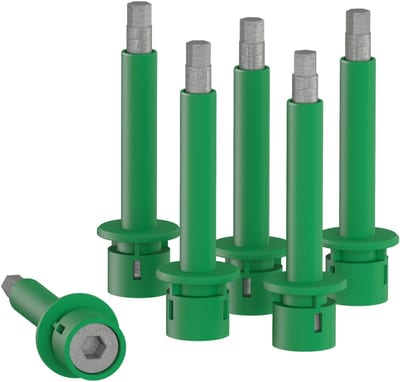

Schneider Electric torque limiting breakaway bit - installation accessories - 9 N.m - set of 6 LV426990
