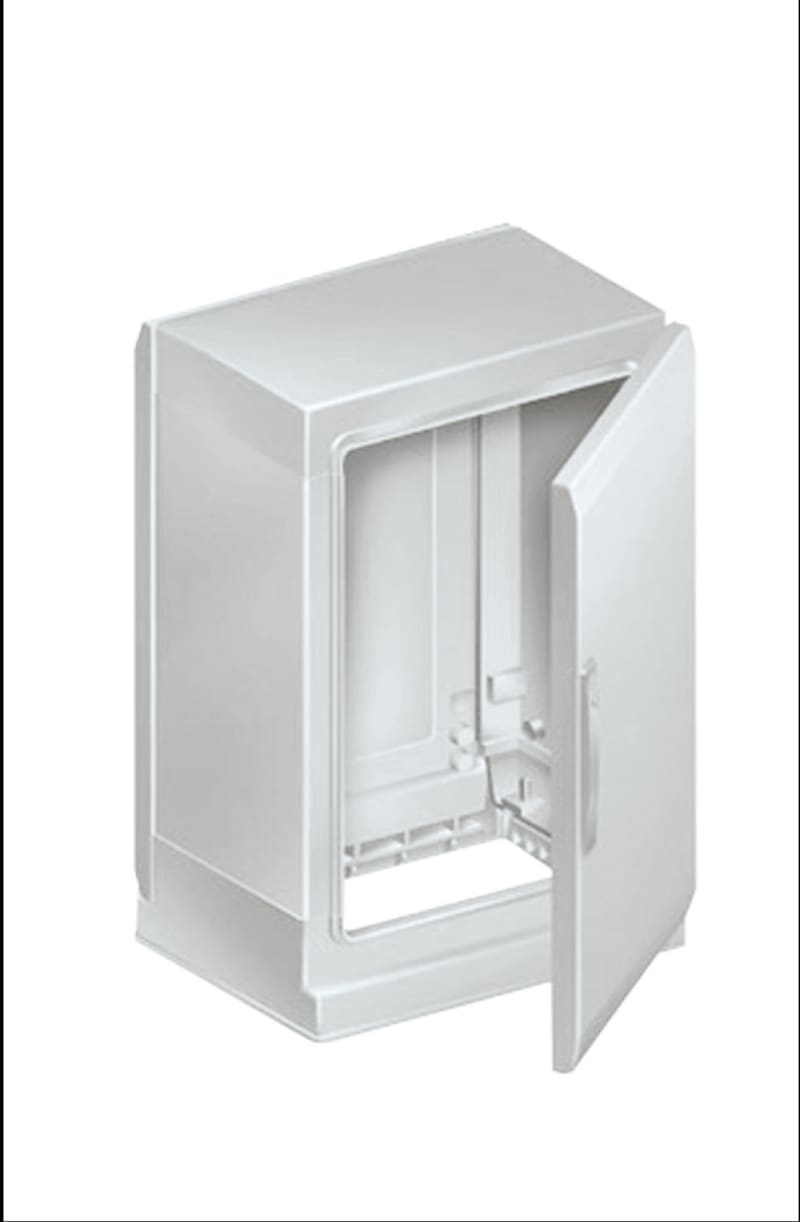

Schneider Electric Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500X750X320 IP54 NSYPLAZ573G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLAZ573G THLSA OPEN SOK 7035 500X750X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZ573G
- EAN / GTIN
- 3606480775857
- Sales unit
- pcs
- Dimensions
- 500×750×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZ
- Nominal height
- 500 mm
- Nominal width
- 750 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 plinth
- Body type
- Sealed top and open bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP54 conforming to IEC 60529 (plinth type open bottom)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 500 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 422 N
- Max. permitted load of the door(s) according to IEC 62208
- 108 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775857
- SAP 1000752555
- Code 8488691
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting Kit Y/D (LA9D8017)
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 275A, standard version, 48…130V wide band AC/DC coil LC1G1504EHEN
Schneider Electric
Schneider Electric Trip unit TM200DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, 200A rating C253TM200D
Schneider Electric
PLA75 DLPMod insert 7035 57M
NSYDLP57G
Schneider Electric
Vertikaltilk top MTZ 25/32 3P
LV848134
Schneider Electric
Schneider Electric PanelSeT SFN Reinforced Coupling Kit 4-Piece
NSYSFBKR
Schneider Electric

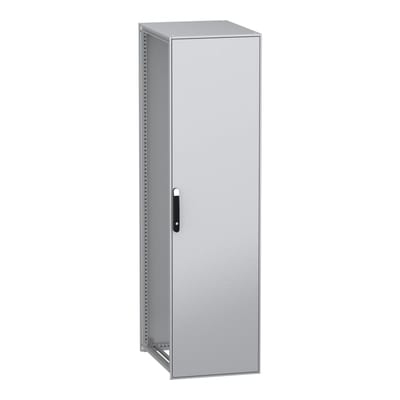

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2200X600X800MM, IP55 NSYSFN22680
