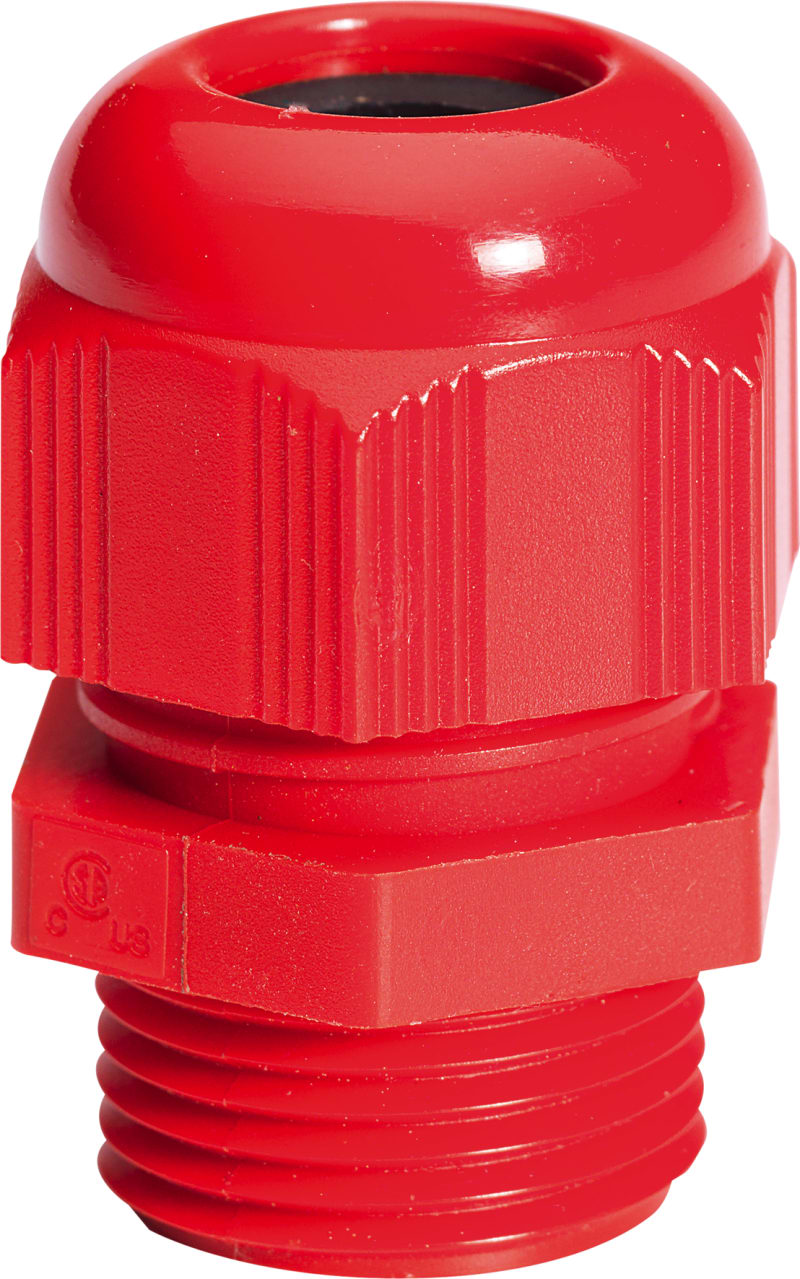

Schneider Electric IMT36150 Thorsman Cable Gland M20 6-12 mm IP68 Red
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT36150 is a Thorsman security cable gland with M20 metric thread, accepting cable outer diameters from 6 to 12 mm and rated IP68. Body is glass-fibre reinforced polyamide (PA6) in red (RAL 3000) with a membrane seal, locknut and strain relief; halogen-free construction. Suitable for demanding installation environments including damp locations and outdoor cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36150
- EAN / GTIN
- 3606480163494
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP68
- Flow rate
- 128 l/h
- product range
- Thorsman Glands
- product type
- Security cable gland
- colour
- Red (RAL 3000)
- quantity per package
- Set of 20
- Material
- PA6
- ISO thread
- M20
- Cable outer diameter
- 6…12 mm
- IP-Class
- IP68
- glow wire temperature
- 960 °C
- Warranty (in months)
- 18
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Pitch thread
- 2.5 mm
- Thread length
- 9 mm
- Wrench width
- 20 mm
- Hexagon angular dimension
- 10 mm
- Suitable for cable diameter
- 6–12 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- Yes
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 3000
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Membrane
- Separable screw gland
- Yes
- Operating temperature
- 0–960 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480163494
- SAP 1000090367
- Code 8893903
Product Documentation
