Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 1250X1250X320 IP44 NSYPLAT12123G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLAT12123G THLSA RAIN HOOD 7035 1250X1250X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAT12123G
- EAN / GTIN
- 3606480775253
- Sales unit
- pcs
- Dimensions
- 1250×1250×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAT
- Nominal height
- 1250 mm
- Nominal width
- 1250 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy
- Body type
- Open top and sealed bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (120 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Top; Rear; Front
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1250 mm
- Height
- 1250 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 2511 N
- Max. permitted load of the door(s) according to IEC 62208
- 176 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775253
- SAP 1000752495
- Code 8486440
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys D control relay - 5 NO - <= 690 V - 24 V DC standard coil CAD503BD
Schneider Electric
Schneider Electric PrismaSeT G/P Front Plate Locking Screws, Set of 20
LVS01094
Schneider Electric
Transparent door PrismaSeT G wall 24MOD
LVS08138
Schneider Electric
Schneider Electric Straight length, Canalis KBB, 25 A, 1 circuit 3L+N+PE, remote control circuit, 3 tap-off units, 3 m, white KBB25ED4303TW
Schneider Electric

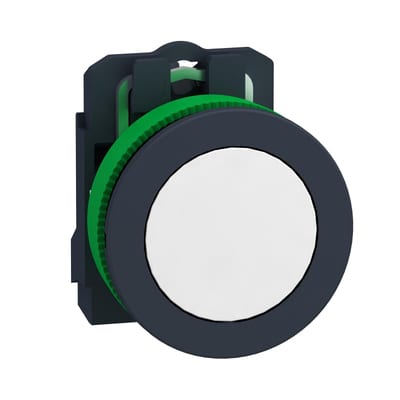

Schneider Electric Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, plain lens, 24V AC DC XB5FVB1
Schneider Electric

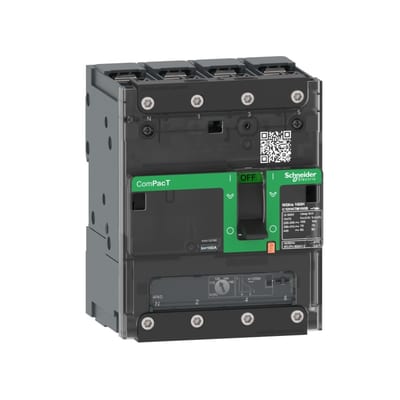

Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 160A, lugs/busbars C12B4TM160B
Schneider Electric

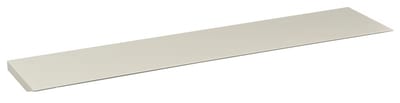

CEILING-IP31-FOR PrismaSeT G-B850MM+300mm
LVS08837
Schneider Electric

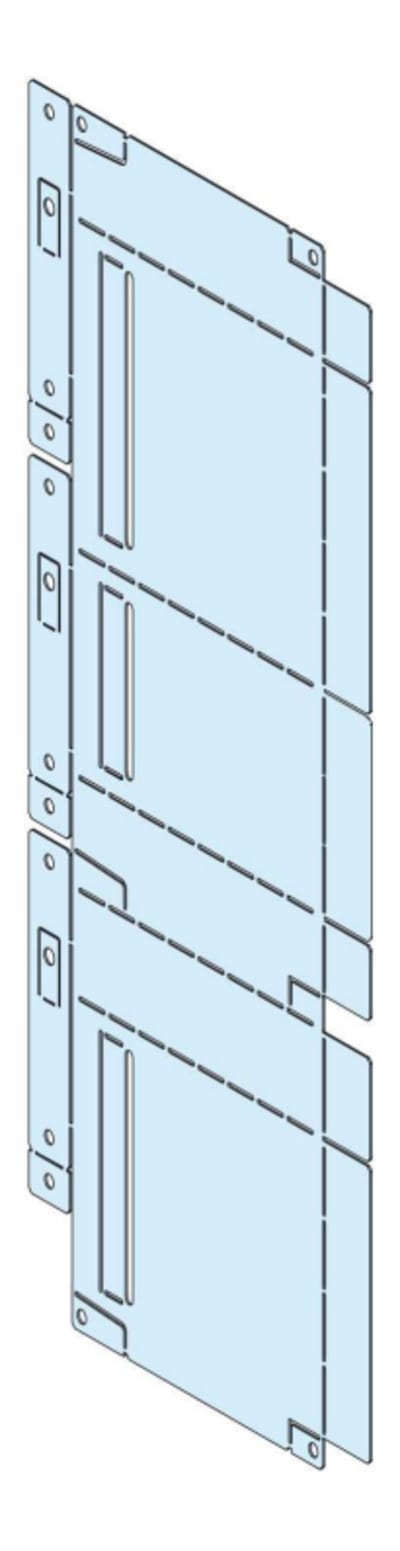

Schneider Electric Partition, PrismaSeT G, vertical, IP55 LVS08384
