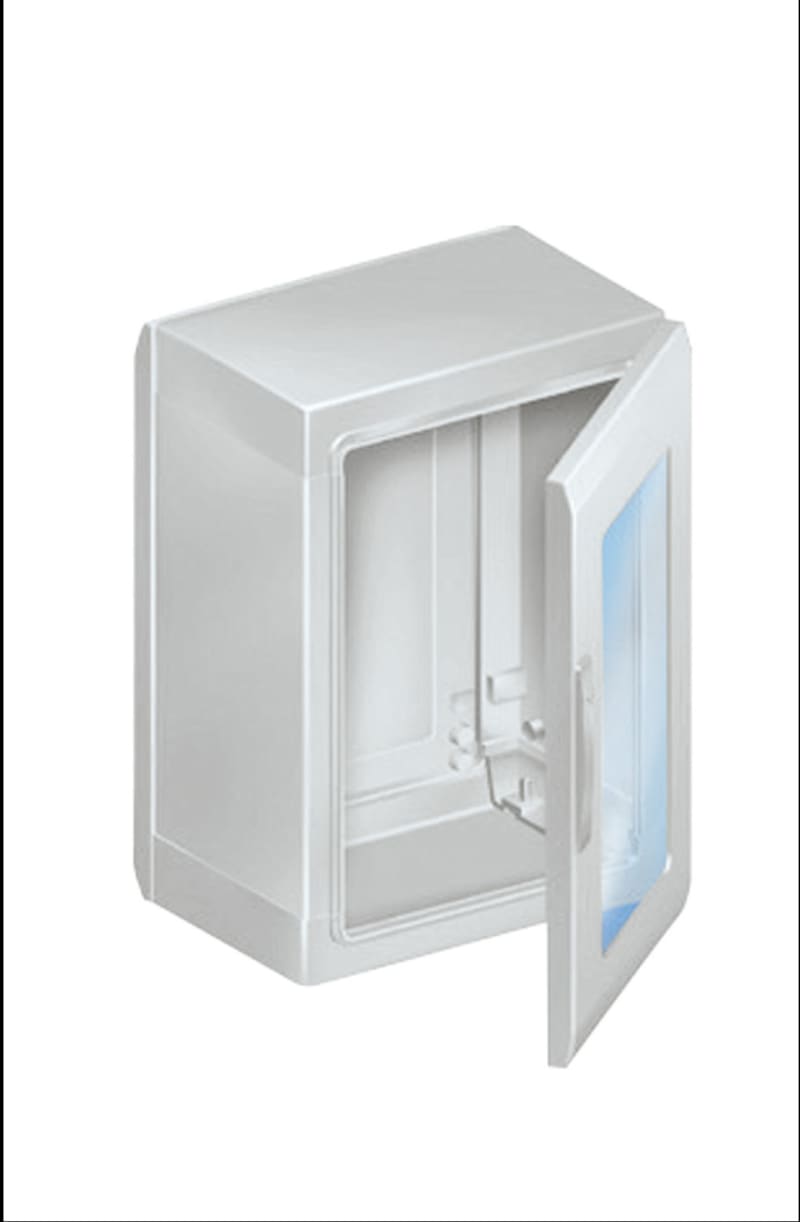

Schneider Electric Floor standing encl. polyester vers.PLA compl.sealed 1250X750X320 IP65 glazed NSYPLA1273TG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLA1273TG THALASSA 7035 1250x750x320 IP65 gl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLA1273TG
- EAN / GTIN
- 3606480774645
- Sales unit
- pcs
- Dimensions
- 1250×750×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLA
- Nominal height
- 1250 mm
- Nominal width
- 750 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door
- Body type
- Sealed top and bottom part assembled with side parts
- Door type
- Transparent front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 4 points lock, 5 mm double-bar
- Accessibility for operation
- Rear; Front
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- UL 508 A; IEC 62208
- NEMA degree of protection
- NEMA 2; NEMA 12; NEMA 3S; NEMA 5; NEMA 1; NEMA 3R; NEMA 13; NEMA 3; NEMA 3X
- Product certifications
- DNV Marine; UL/cUL listed; Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP65 conforming to IEC 60529 (completely sealed)
- IK degree of protection
- IK08 conforming to IEC 62262 (glazed door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 1250 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK08
- Degree of protection (IP)
- IP65
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1167 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480774645
- SAP 1000752434
- Code 8487324
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Cable trunking, PrismaSeT P & G, adhesive trunking 30X30 mm, L2000MM, Set of 30 LVS04233
Schneider Electric
Selector switch 2 POSITIONS WITH OFF POSITION3-POLE Ø22
K2F003UCH
Schneider Electric
CYB-BK12 Data cover STRAIGHT 4XRJ45
5970130
Schneider Electric
Load-break switch INS100, 4P red/yellow
28925
Schneider Electric
APC SRT 19" Rail Kit 5/6/8/10KVA
SRTRK2
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, ≤440V, 32A, 110V DC coil, screw clamp terminals LC1D32FD
Schneider Electric
Schneider Electric Preventa XPE, Single foot switch, metal, orange, with cover, trigger mechanism, 2 NO + 2 NC XPER511
Schneider Electric
Schneider Electric A9F94410 ACTI9 IC60L Miniature Circuit Breaker 4P 10 A, Curve C
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPLA1273TG?
- NSYPLA1273TG can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPLA1273TG.
- What is the HS code for NSYPLA1273TG?
- The customs tariff (HS) code for NSYPLA1273TG is 9403.70.
- Who manufactures NSYPLA1273TG?
- NSYPLA1273TG is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPLA1273TG?
- Yes — the NSYPLA1273TG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPLA1273TG?
- The minimum order quantity is 1.
- Is NSYPLA1273TG available?
- Yes — NSYPLA1273TG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
