PLA105 Telequick mounting plate
Pricing
Request a quote
We reply within 24 hours
Product Description

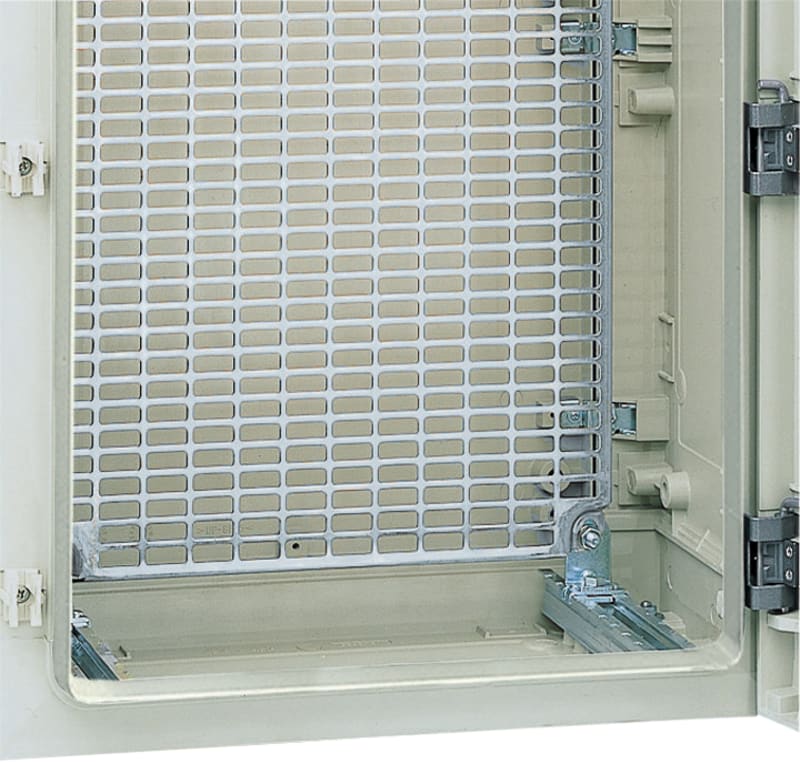

Schneider Electric NSYPMR105 PLA105 Telequick mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMR105
- EAN / GTIN
- 3606480194313
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Back inserts; Step slide
- Mounting plate description
- Telequick perforated
- Range compatibility
- PanelSeT PLA; PanelSeT PHD
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 1000 mm; Real: 870 mm
- Width
- Nominal: 500 mm; Real: 376 mm
- Depth
- Real : 15 mm
- Cut-out dimensions
- 11 x 26 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.000 cm
- Package 1 Width
- 37.500 cm
- Package 1 Length
- 87.000 cm
- Package 1 Weight
- 2.508 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 46
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 128.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480194313
- SAP 1000470295
- Code 8786880
