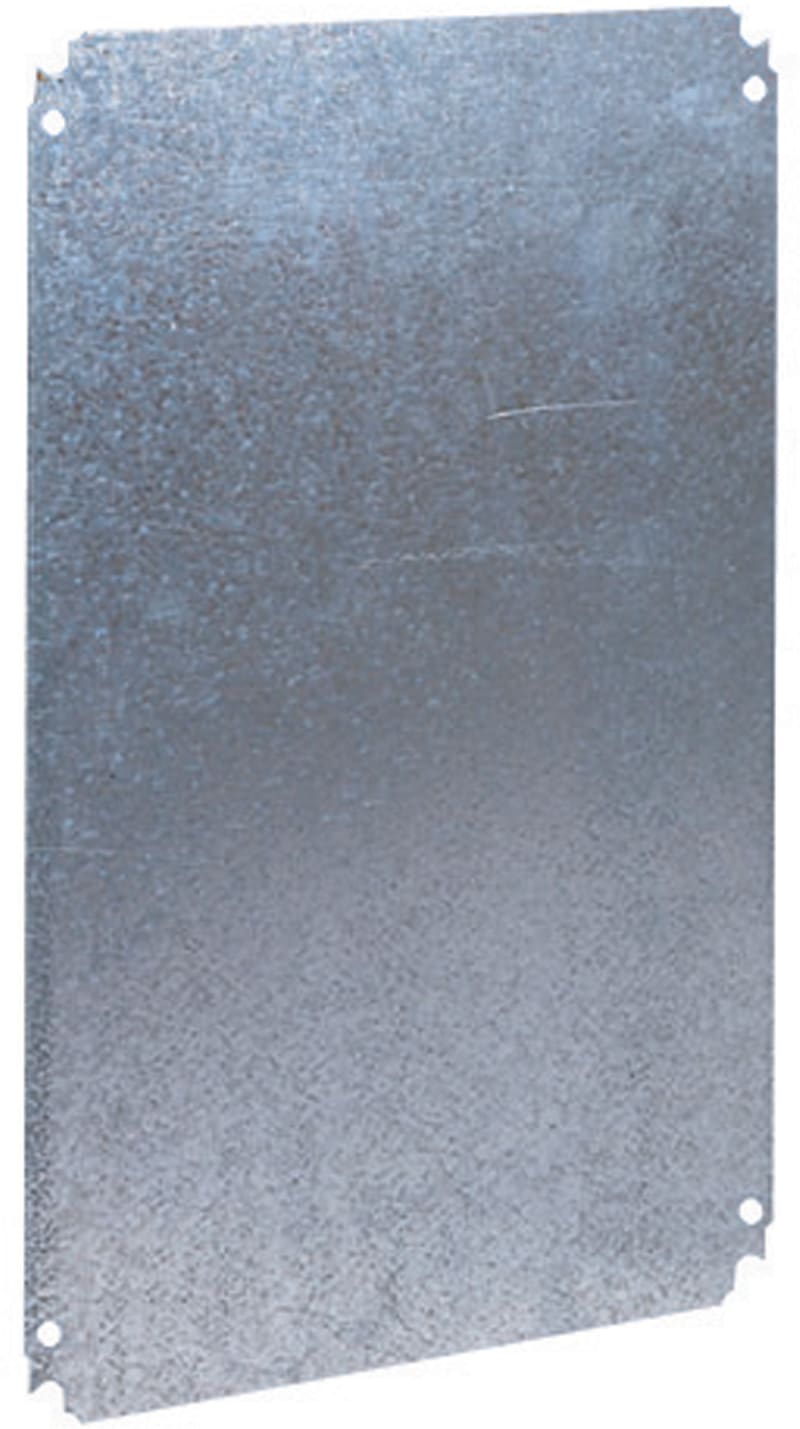

Mounting plate 750X750
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPMM77 Mounting plate 750X750.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMM77
- EAN / GTIN
- 3606480193804
- Sales unit
- pcs
- Dimensions
- 750×750 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Back inserts; Step slide
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT PLA PLA; PanelSeT PHD
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 750 mm; Real: 640 mm
- Width
- Nominal: 750 mm; Real: 625 mm
- Depth
- Real : 125 mm
- thickness
- 2.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480193804
- SAP 1000318061
- Code 8826986
Product Documentation
