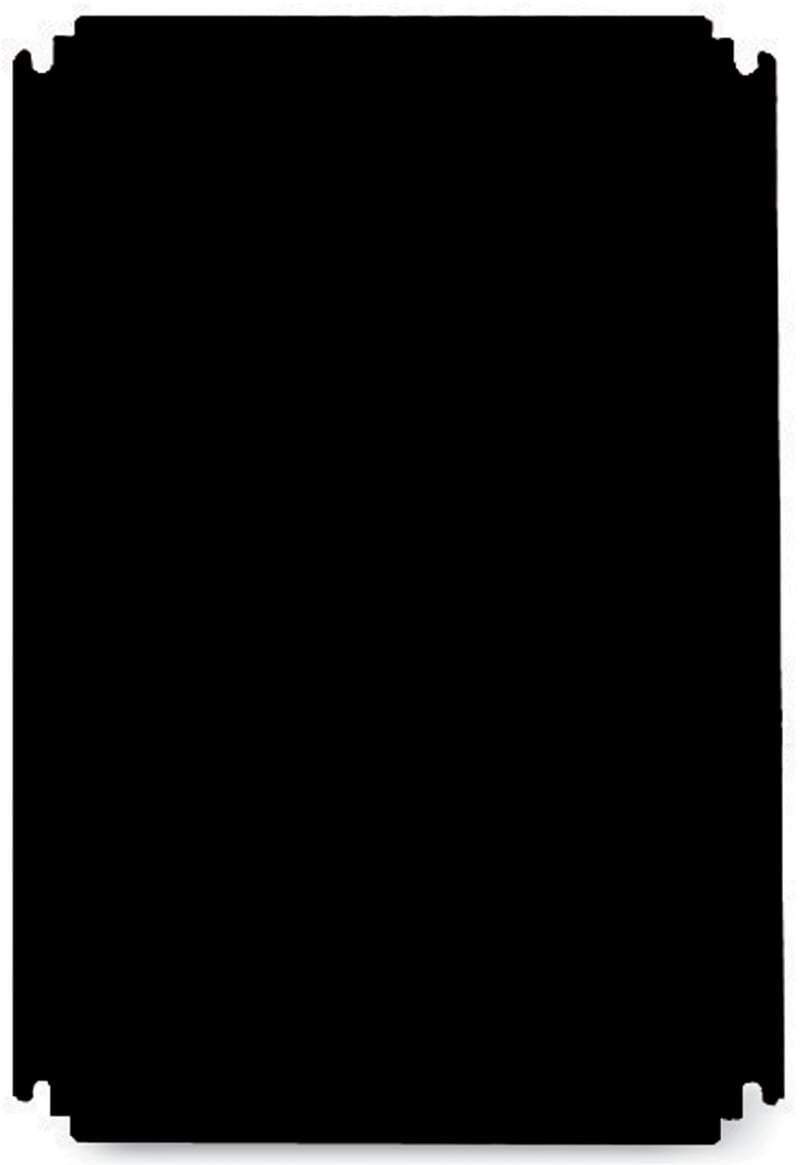

Bakelite Mounting Plate for PLA 1010 Enclosure
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPMB1010 bakelite (insulating) mounting plate for Thalassa PLA 1010 polyester enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMB1010
- EAN / GTIN
- 3606480194177
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Back inserts; Step slide
- Mounting plate description
- Insulating
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Bakelite
- Colour
- Black (RAL 9005)
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 1000 mm; Real: 890 mm
- Width
- Nominal: 1000 mm; Real: 875 mm
- Depth
- Real : 125 mm
- thickness
- 5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480194177
- SAP 1000318018
- Code 8824014
