Modular unit 64M 600X400X200
Pricing
Request a quote
We reply within 24 hours
Product Description

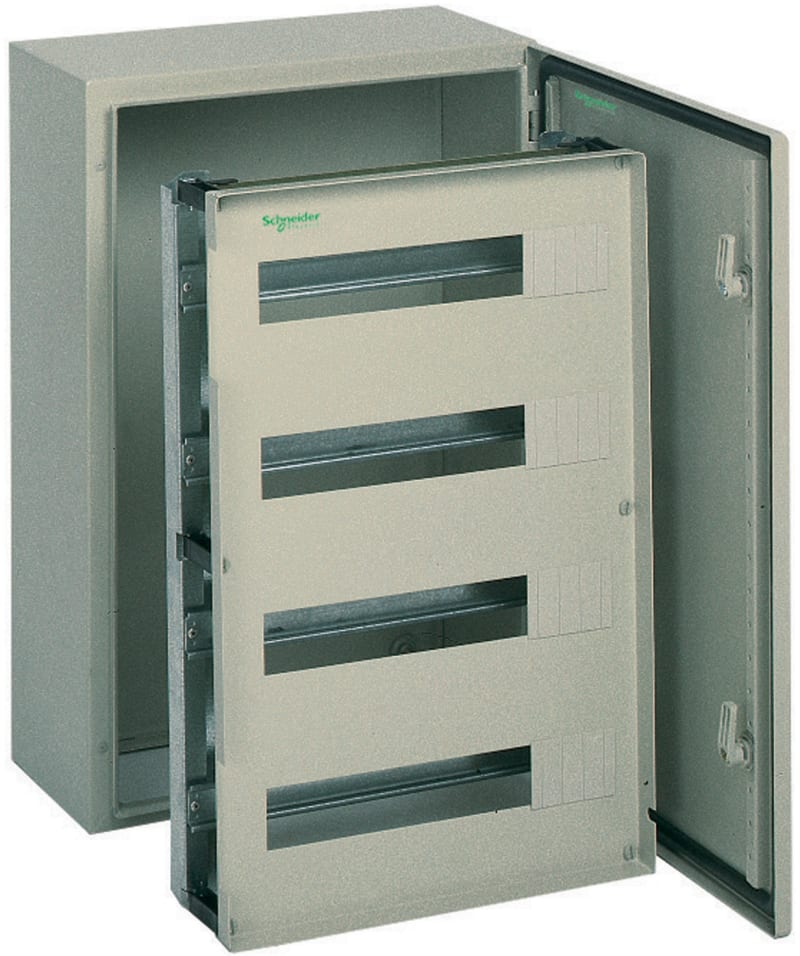

Schneider Electric NSYDLCR64 Modular unit 64M 600x400x200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLCR64 EAN / GTIN: 3606480162671 Sales unit: pcs Dimensions: 600×400×200 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Modular distribution application; Multi-purpose Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 4 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 4 Total number of 18 mm modules: 64 Type of front plate: Plain and cut-out plates Number of cut-out: 4 cut-outs Height: 555 mm Width: 355 mm Depth: 110 mm Number of Units in Package 1: 1 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 4 Number of modular spacings per DIN-rail: 16 With N-PE clamp: Yes Country of origin: Spain
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162671
- SAP 1000317794
- Code 8342805
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric NSYTRACR22 Linergy TR End Cover for Terminal Block, 2.5 mm² 2-Point, Grey
Schneider Electric
Plinth 7035 PLAZ 200X535X410
NSYZZ254G
Schneider Electric
Angleconnection 3P G630-800 (LA9G3682)
Schneider Electric
Schneider Electric Bracket Kit, 0U PDU, Compaq/Dell AP7400
Schneider Electric
Schneider Electric Partition, PrismaSeT G, horizontal, W850, IP30/IP55 LVS04336
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100F AC/DC, 18KA/415VAC, 2 poles, TMD trip unit 25A C10F2TM025
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MicroLogic 6.2E trip unit 40A C10V36E040
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 3 poles, MicroLogic 2.3 trip unit 400A C40R32D400
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLCR64?
- NSYDLCR64 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLCR64.
- What is the HS code for NSYDLCR64?
- The customs tariff (HS) code for NSYDLCR64 is 9403.99.
- Who manufactures NSYDLCR64?
- NSYDLCR64 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLCR64?
- Yes — the NSYDLCR64 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLCR64?
- The minimum order quantity is 1.
- Is NSYDLCR64 available?
- Yes — NSYDLCR64 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
