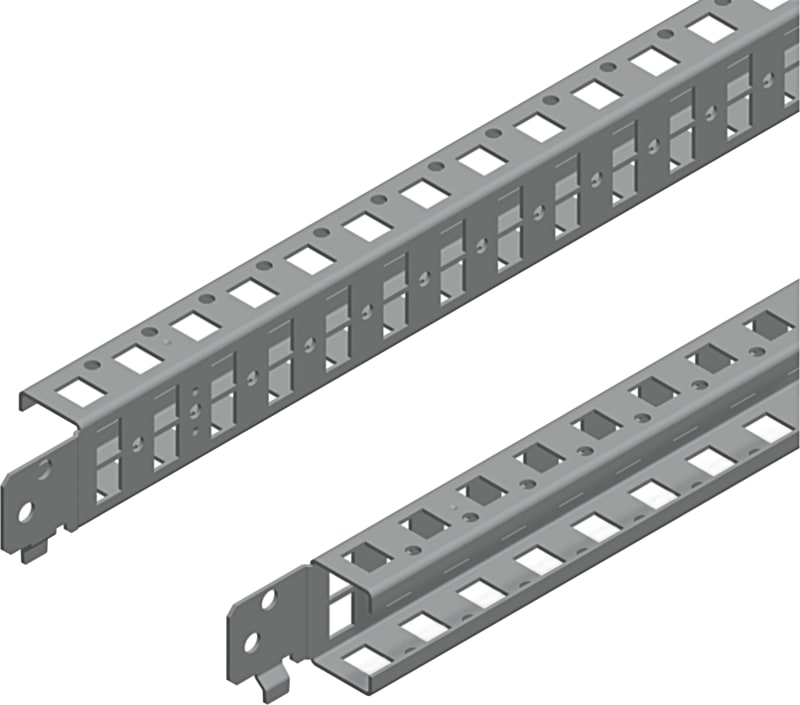

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1000MM, 1 row, set of 2 NSYSQCR40100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR40100 Spacial SF/SM - 2 enkle rails - Cross-arm - B:40 mm - H:1000 - 1-row.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR40100
- EAN / GTIN
- 3606485132624
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 1
- Maximum load
- 30 kg
- Height
- Nominal: 1000 mm; Useful: 910 mm
- Width
- 40 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 204
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 1000 mm
- Max. load capacity
- 30 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132624
- SAP 1000470350
- Code 8787066
Product Documentation
More from Schneider Electric
Schneider Electric
2 hulls gland plate 800X1000 SF
NSYEC8102
Schneider Electric
Connectionsforlengels 3P G265-500
LA9G3602
Schneider Electric
Schneider Electric PM5341 Meter, ethernet, up to 31ST H, 256K 2DI/2DO 35 alarms, MID METSEPM5341
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/3E, <=440V, 25A, 24V AC 50/60Hz coil, snap-in terminals LC1D25AB7
Schneider Electric
FDP 252/ 292 mounting enclosure
FFS00703958
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400N, 50KA/415VAC, 3 poles, MicroLogic 1.3M trip unit 320A C40N31M320
Schneider Electric
Aluminium cylinder Ø 10.5 mm for current transformer
METSECT5CYL2
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 3 poles, MicroLogic 6.2E trip unit 250A C25V36E250
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSQCR40100?
- NSYSQCR40100 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSQCR40100.
- What is the HS code for NSYSQCR40100?
- The customs tariff (HS) code for NSYSQCR40100 is 7326.90.
- Who manufactures NSYSQCR40100?
- NSYSQCR40100 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSQCR40100?
- Yes — the NSYSQCR40100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSQCR40100?
- The minimum order quantity is 1.
- Is NSYSQCR40100 available?
- Yes — NSYSQCR40100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
