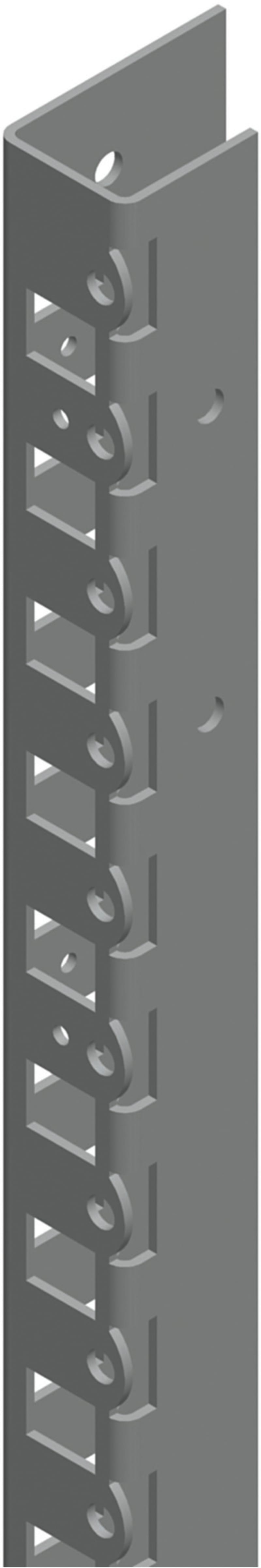

Schneider Electric PanelSeT SM horizontal adaptation profiles - 1600 mm NSYSMHR16
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMHR16 2 horizontal profiles 1600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMHR16
- EAN / GTIN
- 3606480146718
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Adaptation profile
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SM
- Mounting location
- Top and bottom front of enclosure
- Installation direction
- Horizontal
- Device composition
- fixing screws; 2 profile
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - on front fixing point location
- Height
- 24.5 mm
- Width
- Real: 1380 mm; Nominal: 1600 mm
- Depth
- 42 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 30.000 cm
- Package 1 Length
- 139.000 cm
- Package 1 Weight
- 2.332 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 100
- Package 2 Height
- 25.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 265.200 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Number of height units
- 32
- Surface finishing
- Powder coating
- Length
- 1600 mm
- Mounting method
- Screw mounting
- Profile height busbar
- 24.5 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146718
- SAP 1000317619
- Code 8822986
Product Documentation
More from Schneider Electric
Schneider Electric
Push Button Cap flush org
ZBAF5
Schneider Electric
Schneider Electric Modicon TM3 - 4 analog inputs, 2 analog output (screw) 24VDC TM3AM6
Schneider Electric
Schneider Electric variable speed drive, ATV930, 5,5kW, 400/480V, with braking unit, IP21 ATV930U55N4
Schneider Electric
Front plate INS630 Horizontal PrismaSeT G
LVS03271
Schneider Electric
Schneider Electric variable speed drive ATV650 - 90KW/125HP - 380...480V - IP55 ATV650D90N4
Schneider Electric
Triple Push Button, Complete, Harmony XB5
XB5AA731327
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, spring terminals GV2ME163
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 3 poles, TMD trip unit 16A, lugs/busbars C11B3TM016B
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSMHR16?
- NSYSMHR16 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSMHR16.
- What is the HS code for NSYSMHR16?
- The customs tariff (HS) code for NSYSMHR16 is 7326.90.
- Who manufactures NSYSMHR16?
- NSYSMHR16 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSMHR16?
- Yes — the NSYSMHR16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSMHR16?
- The minimum order quantity is 1.
- Is NSYSMHR16 available?
- Yes — NSYSMHR16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
