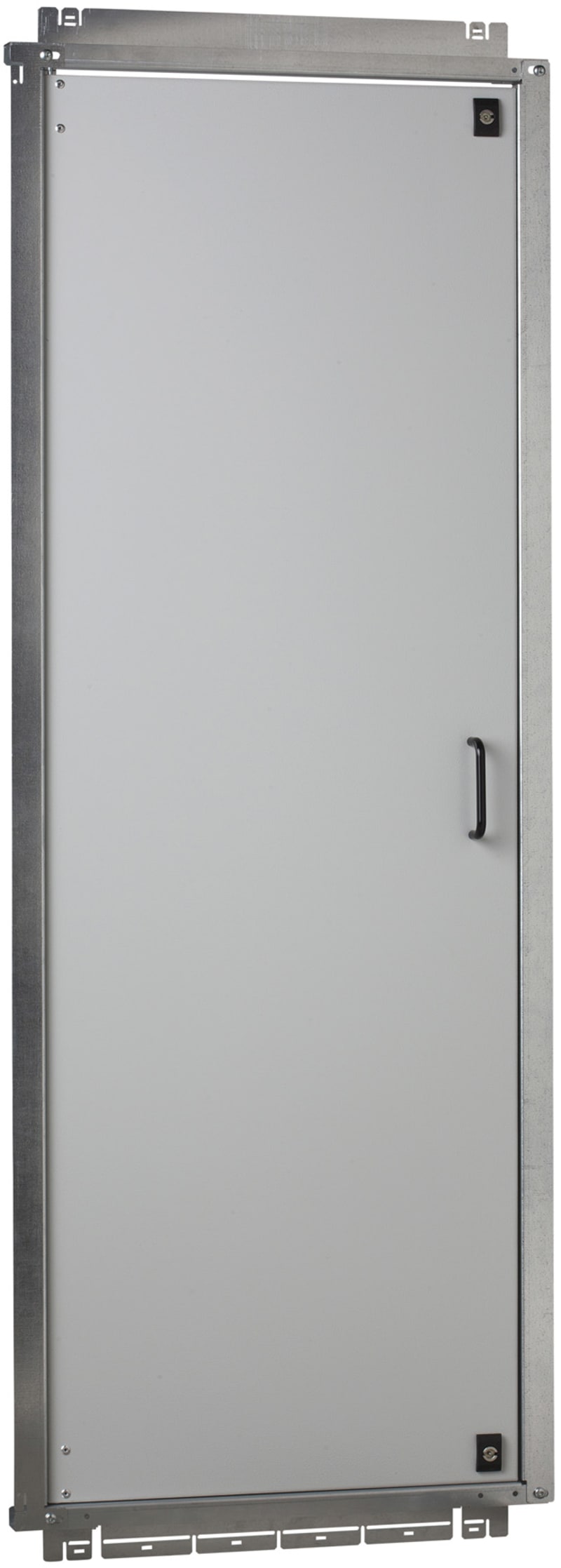

Innerdoor SF SM 1600X600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYID166 Inner door SF SM 1600x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYID166
- EAN / GTIN
- 3606485126999
- Sales unit
- pcs
- Dimensions
- 1600×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT SF; PanelSeT SM
- Device composition
- 1 door; 2 lock with 3 mm double bar insert; 1 handle; fixing elements
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 3 mm double bar
- Number of locks
- 2
- Adjustment
- Adjustable in depth every 25 mm
- Door type
- Internal plain
- Door opening side
- Reversible
- Maximum load
- 15 kg/m²
- Height
- Nominal: 1600 mm; Real: 1465 mm
- Width
- Nominal: 600 mm; Real: 500 mm
- Depth
- 19.5 mm
- Number of Units in Package 1
- 1
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Inner door
- EMC-version
- No
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606485126999
- SAP 1000317502
- Code 81014843
Product Documentation
More from Schneider Electric
Schneider Electric
PLA55 Telequick mounting plate
NSYPMR55
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 600V AC 50/60Hz coil, snap-in terminals LC1D12AX7
Schneider Electric
Schneider Electric Trip unit TM25G, ComPacT NSX100/160, 4 poles 4D (neutral fully protected), thermal magnetic protections, generator, 25A C104MG025
Schneider Electric
Schneider Harmony XB4 Illuminated Push-Button Head, Projecting White, BA9s
ZB4BW11
Schneider Electric
Floor-standing cabinet SFN m/m.pl 1800X1200X500 2DOOR
NSYSFN1812502DP
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 18A, 72 V DC low consumption coil, snap-in terminals LC1D18ASL
Schneider Electric
Extra Ceiling for PrismaSeT G IP55 B600
LVS08386
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 240V AC standard coil, snap-in terminals CAD32AU7
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYID166?
- NSYID166 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYID166.
- What is the HS code for NSYID166?
- The customs tariff (HS) code for NSYID166 is 8538.10.
- Who manufactures NSYID166?
- NSYID166 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYID166?
- Yes — the NSYID166 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYID166?
- The minimum order quantity is 1.
- Is NSYID166 available?
- Yes — NSYID166 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
