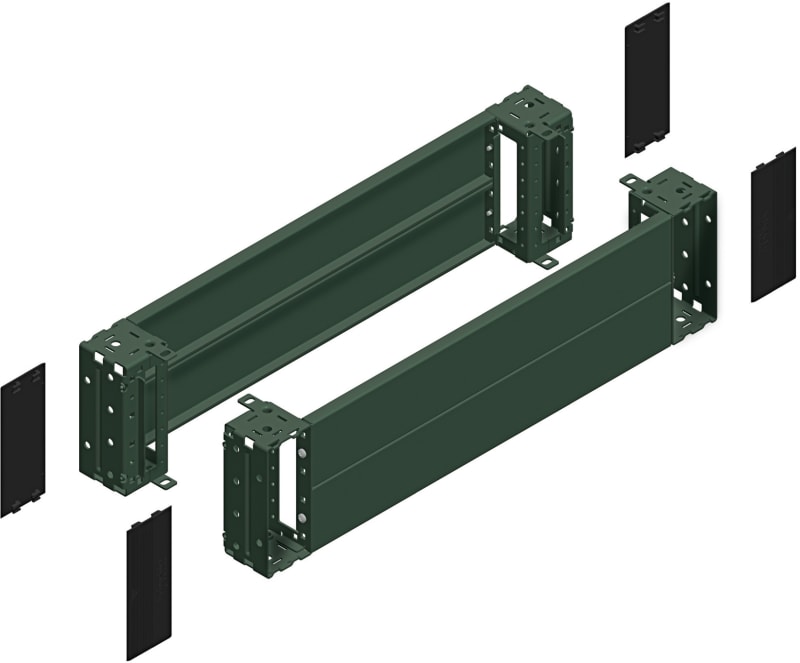

Basefront 200X400 (NSYSPF4200)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSPF4200 Plinth Front 200x400 for Spacial.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF4200
- EAN / GTIN
- 3606485126661
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth front
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 4 corner; 2 front panel; 2 rear panel
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 200 mm
- Width
- Nominal: 400 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 21.500 cm
- Package 1 Width
- 20.500 cm
- Package 1 Length
- 41.500 cm
- Package 1 Weight
- 6.400 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 56
- Package 2 Height
- 100.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 371.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 400 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 400 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126661
- SAP 1000317650
- Code 8342614
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SM top/bottom adjustment rail - depth 400 mm NSYSTBR4
Schneider Electric

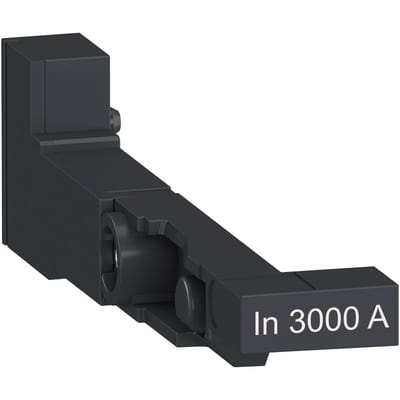

Schneider Electric Sensor plug, MasterPact MTZ2 with MicroLogic X, 3000A rating, spare part LV848825SP
Schneider Electric

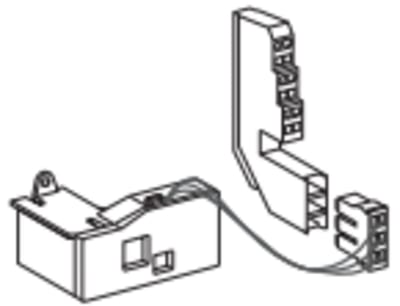

Autoreset (47346)
Schneider Electric

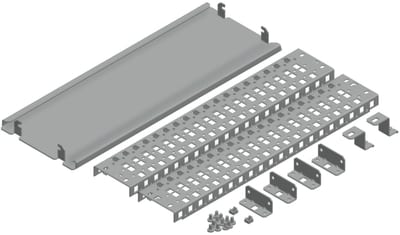

Horprof Set 2DOOR with MONTPL600
NSYSMP2D6
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 277V AC standard coil, snap-in terminals CAD32AW7
Schneider Electric

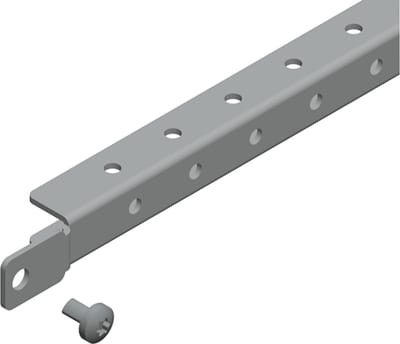

Schneider Electric PanelSet SF door cross rails - nominal width: 400 mm NSYSDCR4
Schneider Electric

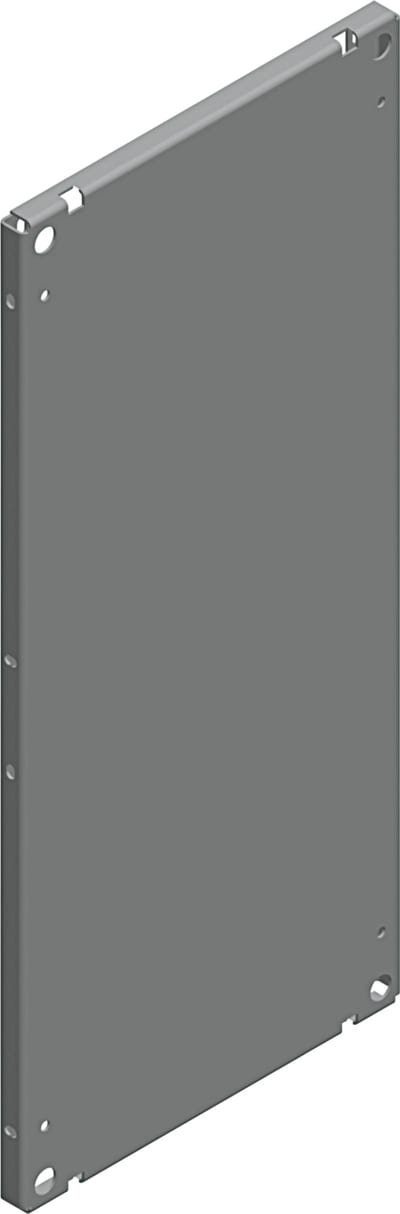

Mounting Plate 18X16
