Mounting Plate 12,5X5
Pricing
Request a quote
We reply within 24 hours
Product Description

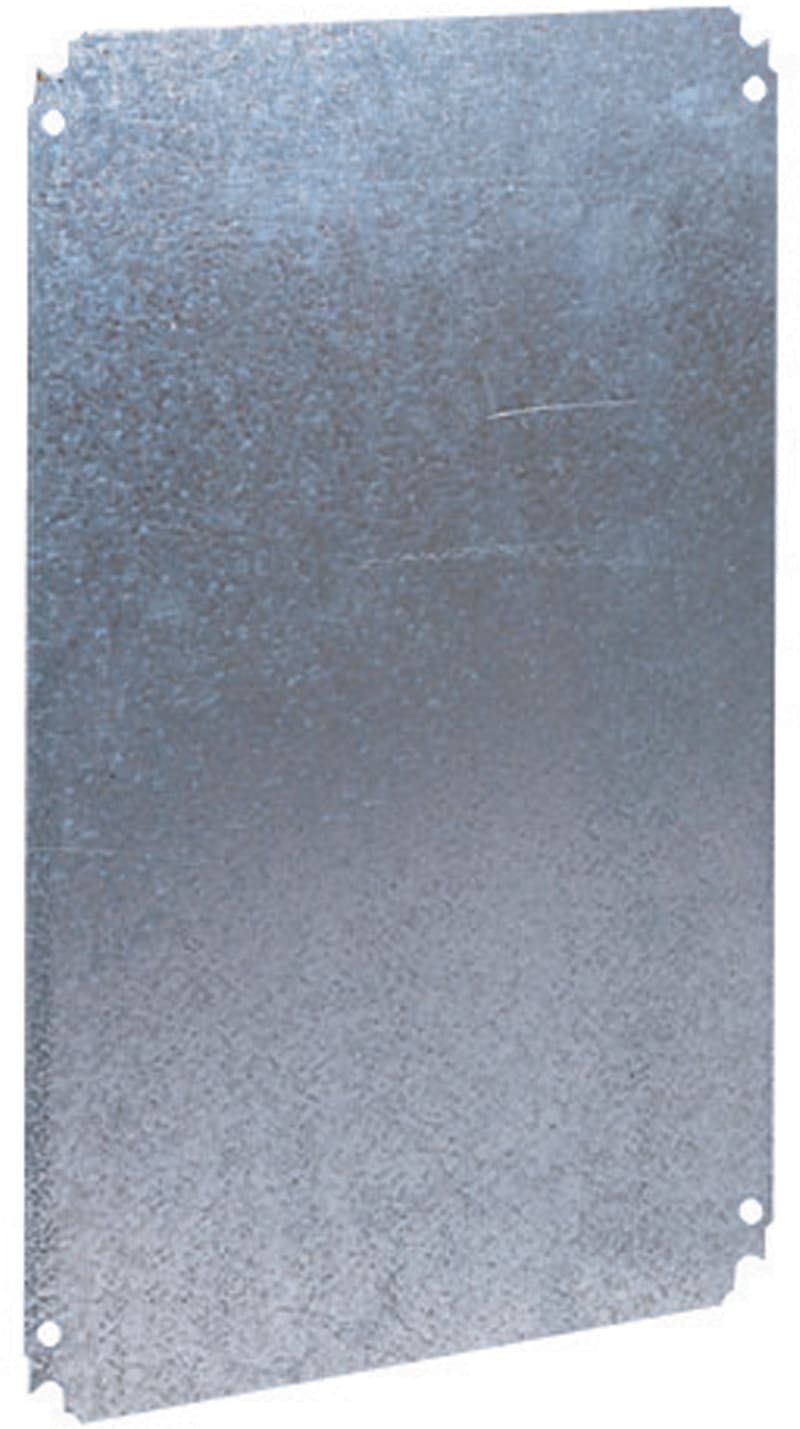

Schneider Electric NSYPMM125 MOUNTING PLATE 12,5X5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMM125
- EAN / GTIN
- 3606480193873
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Back inserts; Step slide
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT PLA PLA; PanelSeT PHD
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 1250 mm; Real: 1140 mm
- Width
- Nominal: 500 mm; Real: 375 mm
- Depth
- Real : 125 mm
- thickness
- 2.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 39.000 cm
- Package 1 Length
- 113.000 cm
- Package 1 Weight
- 8.470 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 70
- Package 2 Height
- 57.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 606.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480193873
- SAP 1000318050
- Code 8790031
