Schneider Electric Monobloc perforated plates H400XW600MM with universal perforations 11X26MM NSYMR46
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMR46 MOUNTING PLATE TELEQUICK 400X600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMR46
- EAN / GTIN
- 3606480183669
- Sales unit
- pcs
- Dimensions
- 400×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 400 mm W: 600 mm
- Mounting location
- Direct fixing on backstuds; Step slide
- Mounting plate description
- Telequick perforated
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Height
- 345 mm
- Width
- 551 mm
- Depth
- 15 mm
- thickness
- 2 mm
- Product weight
- 1.518 kg
- Number of slots
- 456
- Variant particularity
- Installation in rear of enclosure
- Cut-out dimensions
- 11 x 26 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 234
- Country of origin
- IN
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480183669
- SAP 1000470432
- Code 8113733
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric flush mounted red selector switch head 3 pos return center ZB5FD504
Schneider Electric
Schneider Electric LV833172SP Door Interlock for Drawout Masterpact MTZ1
Schneider Electric
Schneider Electric Central upright, PrismaSeT G, combination profile 12M, IP30 LVS01064
Schneider Electric
Schneider Electric NSYSFNV18 Vertical Upright for PanelSeT SFN, 1800 mm
Schneider Electric

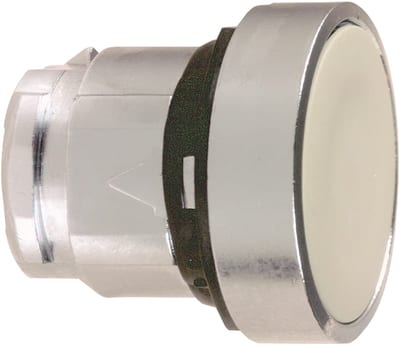

Push-Button Head GREY (ZB4BA8)
