DIN-RAIL Stand (NSYMD75)
Pricing
Request a quote
We reply within 24 hours
Product Description

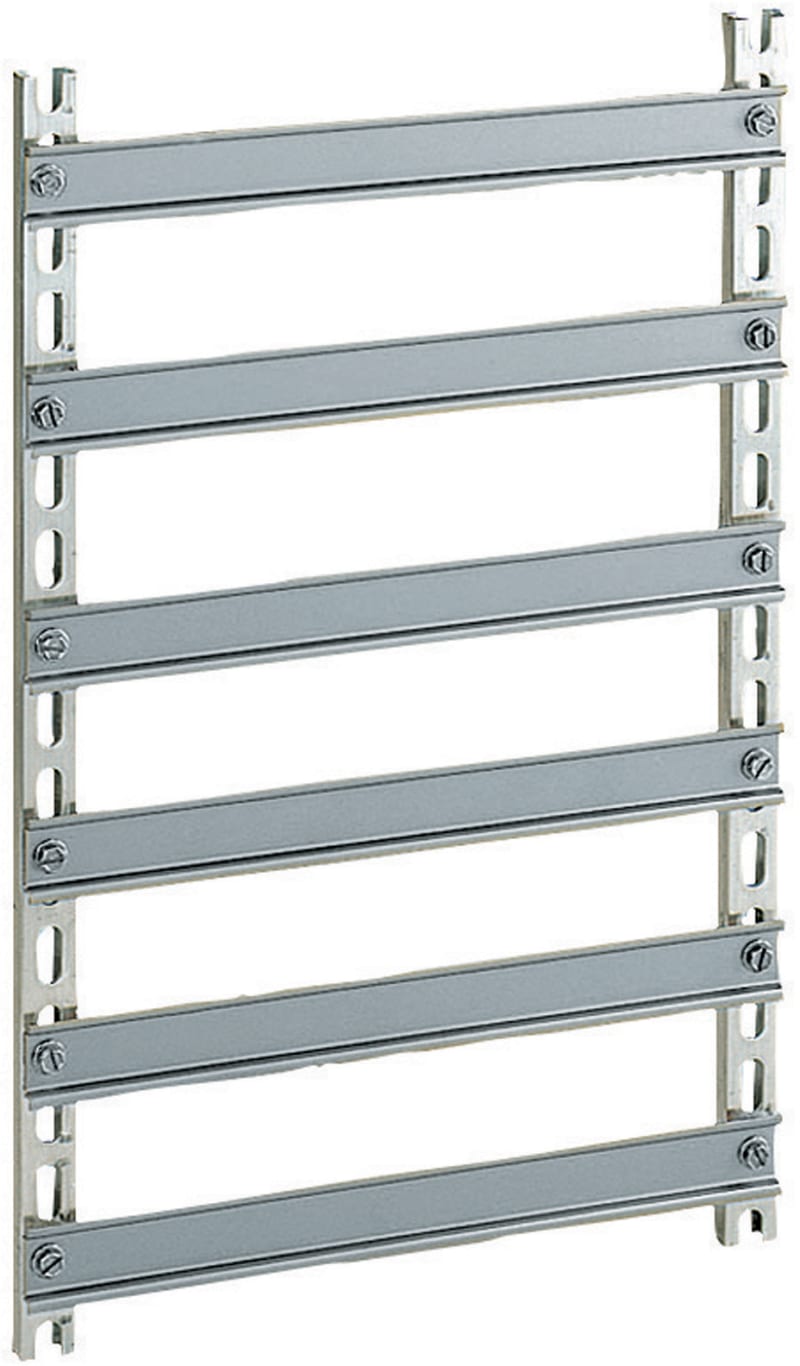

Schneider Electric NSYMD75 DIN-RAIL STAND.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMD75
- EAN / GTIN
- 3606480182860
- Sales unit
- pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Chassis
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Mounting support
- Direct fixing on backstuds; Step slide; Spacer
- Range compatibility
- PanelSeT CRN; PanelSeT S3D; PanelSeT PLM
- Device composition
- fixing elements; 6 DIN rail; 2 upright
- Quantity per set
- Set of 1
- Material
- Uprights: aluminium; Rail: steel
- Fixing mode
- Screwed on backstuds; By fixing element
- Adjustment
- On step slides, type NSYSDCR…, pitch 12.5 mm
- Height
- Real: 639.3 mm; Nominal: 700 mm
- Width
- Nominal: 500 mm; Real: 450 mm
- Depth
- Real : 30 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 64.000 cm
- Package 1 Weight
- 2.360 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 47.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 500 mm
- Suitable for enclosure building height
- 700 mm
- Colour
- Grey
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480182860
- SAP 1000470637
- Code 8580190
