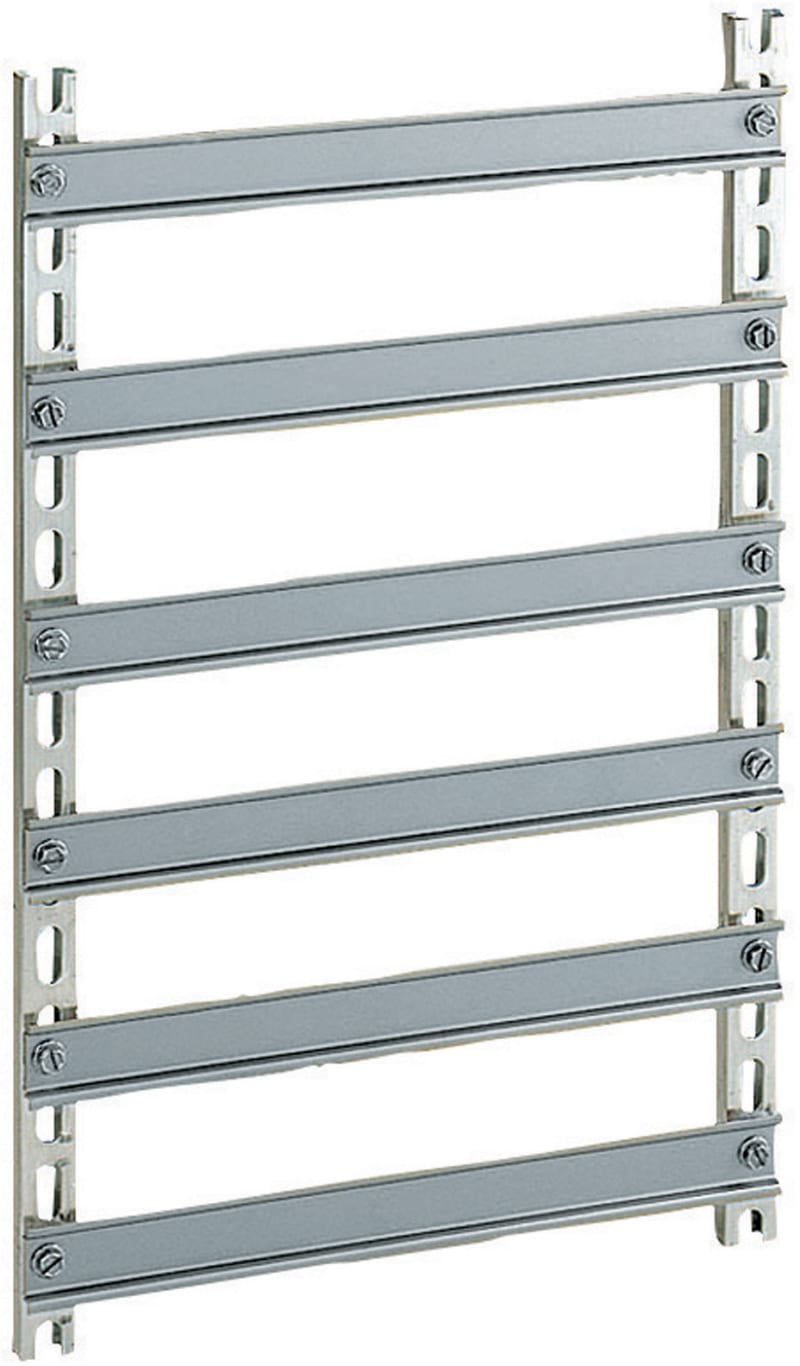

DIN-RAIL Stand (NSYMD54)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMD54 DIN-RAIL STAND.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMD54
- EAN / GTIN
- 3606480182839
- Sales unit
- pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Chassis
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Mounting support
- Direct fixing on backstuds; Step slide; Spacer
- Range compatibility
- PanelSeT CRN; PanelSeT S3D; PanelSeT PLM
- Device composition
- fixing elements; 2 upright; 4 DIN rail
- Quantity per set
- Set of 1
- Material
- Uprights: aluminium; Rail: steel
- Fixing mode
- Screwed on backstuds; By fixing element
- Adjustment
- On step slides, type NSYSDCR…, pitch 12.5 mm
- Height
- Nominal: 500 mm; Real: 439.3 mm
- Width
- Nominal: 400 mm; Real: 350 mm
- Depth
- Real : 30 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 45.000 cm
- Package 1 Weight
- 878.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 150
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 138.360 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building height
- 500 mm
- Colour
- Grey
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480182839
- SAP 1000470634
- Code 8787655
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 30KW/40 hp, 500V/690 V, IP00 ATV630D30Y6
Schneider Electric
Front plate 7035 FORDLA84/112M
NSYCTL600DLAG
Schneider Electric
Push-button flush white with text (ZB4FA131)
Schneider Electric
Link set OMCONNECTION, 40A-65A
LAD9R3S
Schneider Electric
Passiva filter 19A 460V 60Hz
VW3A46161
Schneider Electric

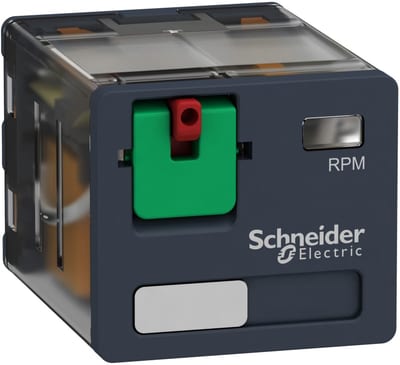

Schneider Electric Power plug-in relay, 15 A, 3 CO, 120 V AC RPM31F7
Schneider Electric

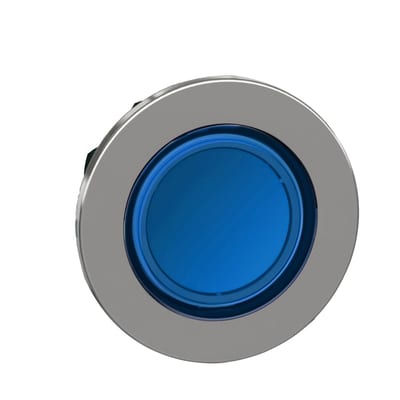

Indicator lamp flush blue (ZB4FV063)
