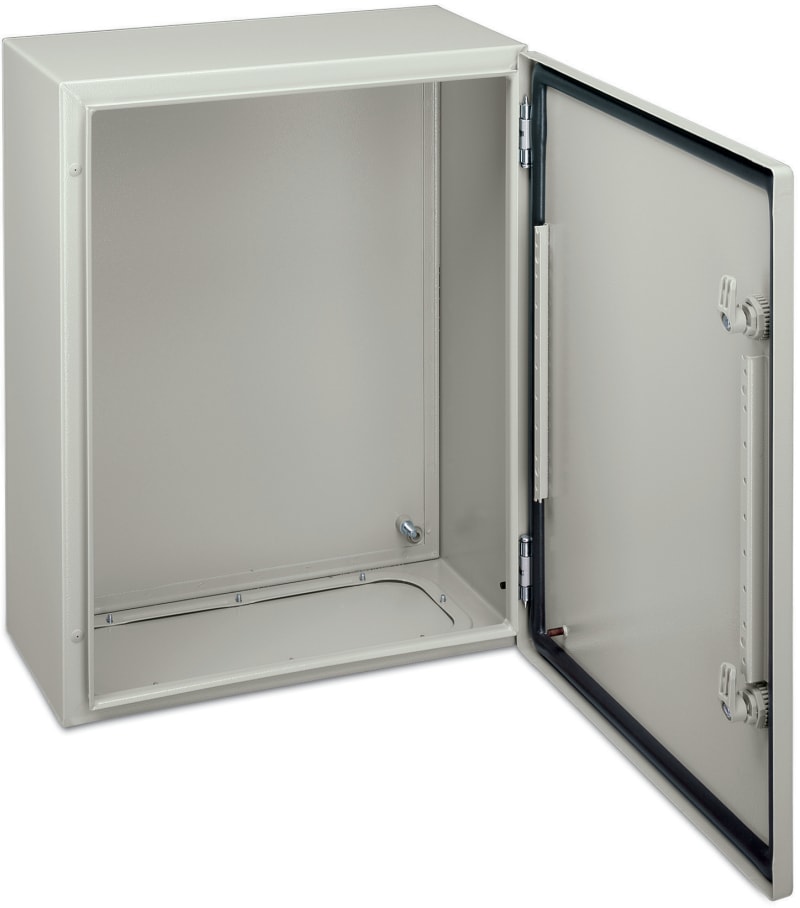

CRN 800X800X200 one plain door
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRN88200 CRN 800x800x200 one plain door.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRN88200
- EAN / GTIN
- 3606480211768
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Dimensions
- 800×800×200
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 800 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 200 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 2 cable gland plate: bottom
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- body type
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL; DNV-GL
- Product weight
- 25.813 kg
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 800 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Country of origin
- Spain
