Schneider Electric PanelSeT Door Cable-Guide Cross Rail 800 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

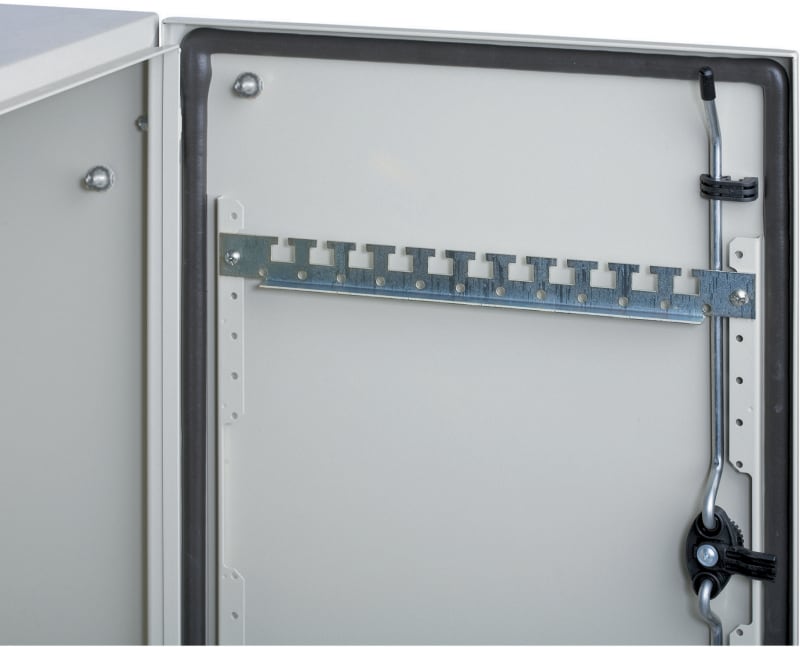

Schneider Electric NSYTFPCRN8 is a set of two door-mounted cable-guide cross rails for PanelSeT S3D, CRN and S3X enclosures. Rails are zinc-coated steel, 30 mm high by 14 mm deep, with a nominal 800 mm width (732 mm real). Fixed by two self-tapping screws to the door reinforcement frame at the required height.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTFPCRN8
- EAN / GTIN
- 3606480184932
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Product or component type
- Door cable-guide cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- On door reinforcement frame
- Range compatibility
- PanelSeT S3D, CRN, S3X enclosures
- Device composition
- Fixing elements; 2 x cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By 2 screws - screw type self tapping - on door reinforcement frame location
- Adjustment
- At the required height for on door reinforcement frame
- Height
- 30 mm
- Width
- Nominal: 800 mm; Real: 732 mm
- Depth
- 14 mm
- Product weight
- 0.746 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606480184932
- SAP 1000488862
- Code 8805756
