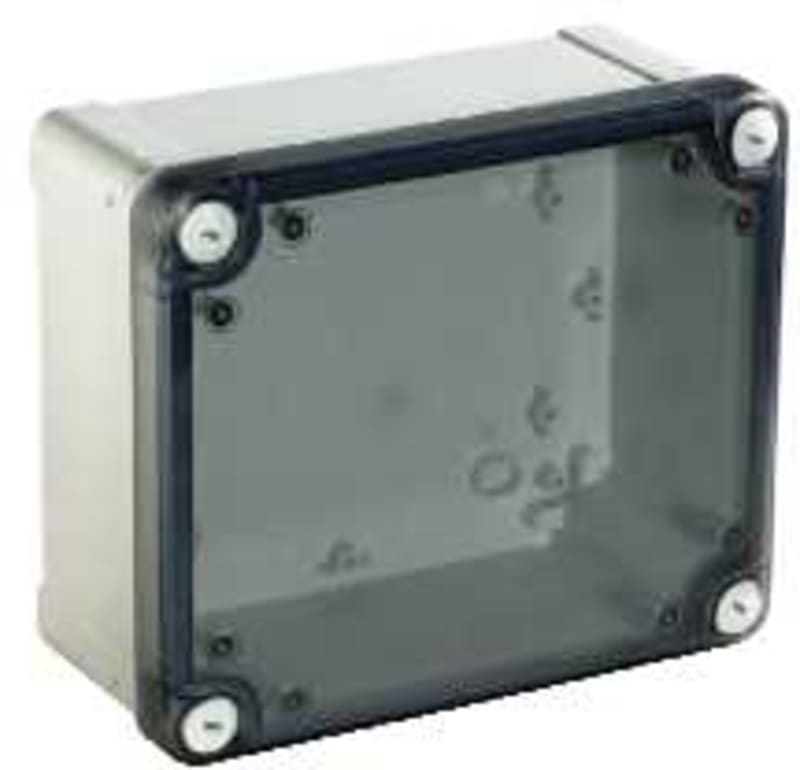

Schneider Electric ABS industrial box, PanelSeT TBS, 241X88X291MM, int. 225X80X275MM, low transparent cover, IP66, IK07, RAL 7035 NSYTBS29248T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS29248T 85035 Abs Box 291X241X88 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS29248T
- EAN / GTIN
- 3606480165528
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Dimensions
- 291×241×88
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 291 mm
- Width
- 241 mm
- Depth
- 88 mm
- Internal height
- 275 mm
- Internal width
- 225 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035); Transparent
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.92 kg
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165528
- SAP 1000090260
- Code 8893663
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive ATV212 - 1.5kW - 2hp - 480V - 3PH - EMC class C2 - IP55 ATV212WU15N4
Schneider Electric
Schneider Electric Speed Monitoring Expansion Module for 2 HTL Encoders, Screw Terminals
XPSMCMEN0200HT
Schneider Electric
Schneider Electric TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V DC low consumption coil CAD323BL
Schneider Electric
Schneider Electric Mechanical interlock, TeSys D contactors LC1D80-D95 AC coil LA9D50978
Schneider Electric
Push-button flush red with text (ZB4FL435)
Schneider Electric

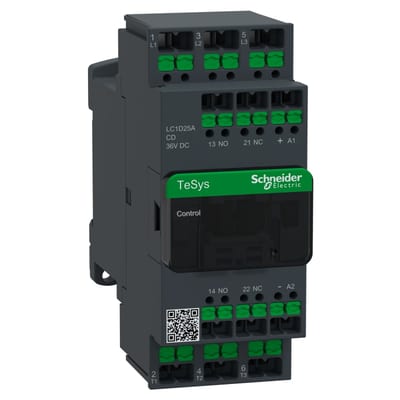

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 36V DC coil, snap-in terminals LC1D25ACD
Schneider Electric
SEALED Front Plate W800
NSYCTL800DLM
Schneider Electric

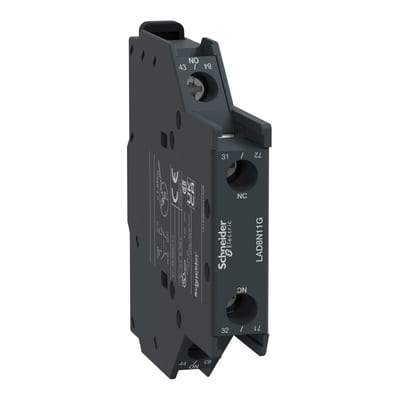

Schneider Electric Auxiliary contact block, TeSys D, 1NO + 1NC, side mounting, screw clamp terminals, EN 50012 LAD8N11G
