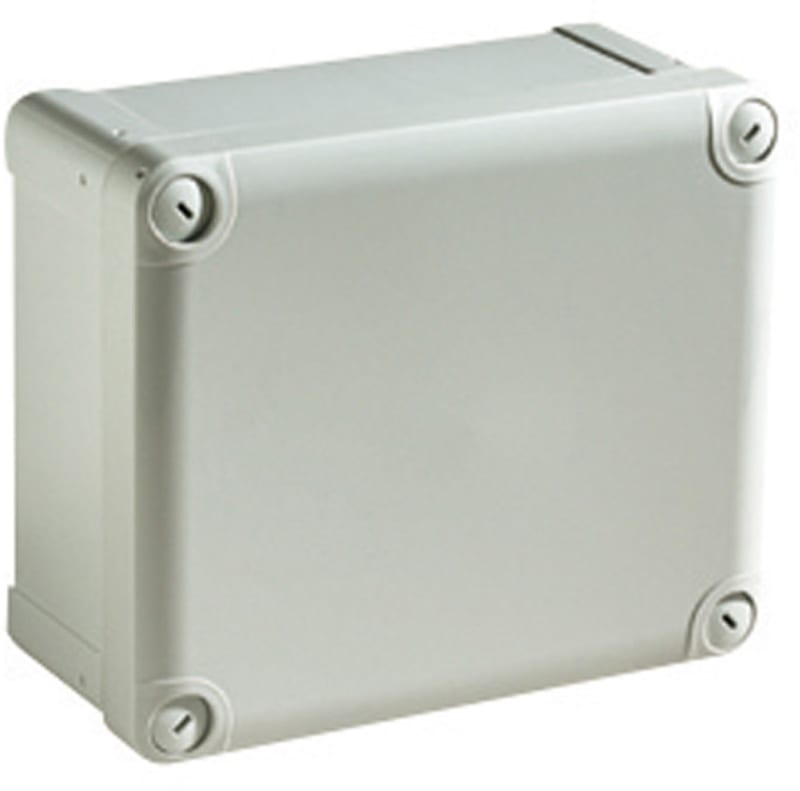

Schneider Electric PC box IP66 IK08 RAL7035 INT.H150W105D80 EXT.H164W121D87 opaque PC cover H20 NSYTBP16128

Schneider Electric NSYTBP16128 Thalassa insulated cabinet and boxes is made of fiberglass reinforced polyester, extremely motstandsdyktige.

Manufacturer part number (MPN)

NSYTBP16128 EAN / GTIN: 3606480165634 Sales unit: pcs Package quantity: 2 pcs Dimensions: 164×121×87 Range: PanelSeT Product name: PanelSeT TBP Device application: Multi-purpose Category: Industrial box Height: 164 mm Width: 121 mm Depth: 87 mm Internal height: 150 mm Internal width: 105 mm Internal depth: 80 mm Enclosure mounting: Wall mounted Device composition: 1 body; 1 cover; 4 cover screw Quantity per set: Set of 2 Body type: One piece moulded Type of front cover: Low plain cover Cover fixing: Plastic screws Lock type: Captive screw flat outside sealed area Removable parts: Cover by captive screws material: Polycarbonate Colour: Grey (RAL 7035) Standards: UL 508 A; IEC 62208 Product certifications: TÜV; UL Electrical insulation class: Class II Mounting location: Outdoor (with canopy or shelter and anticondensation valve) Product weight: 0.33 kg IP degree of protection: IP66 conforming to NEMA 4.4X IK degree of protection: IK08 conforming to IEC 62262 Fire resistance: 960 °C Ambient air temperature for storage: -15…60 °C Operating temperature: -25…80 °C Number of Units in Package 1: 1 Number of Units in Package 2: 2 Number of Units in Package 3: 32 Country of origin: HU Warranty (in months): 18 RAL-number: 7035 With mounting plate: No Impact strength: IK08 Degree of protection (IP): IP66

HS Code

3925.90

• EAN 3606480165634
• SAP 1000090193
• Code 8924931
