Floor-Standing Cabinet 16X8X3 U.PL.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM16830 Floor-standing cabinet 16X8X3 U.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM16830
- EAN / GTIN
- 3606485120577
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 1 cable gland plate; 1 locking system with handle: door; 4 mounting plate bracket; 1 door
- Removable parts
- Door by screws hinge; Mounting plate bracket by screws
- Enclosure nominal height
- 1600 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 300 mm
- Number of doors
- Front: 1 door(s)
- Door opening side
- Reversible (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 64 kg
- Standards
- IEC 62208
- Product certifications
- UL; DNV; BV
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1600 mm
- Depth
- 300 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120577
- SAP 1000090006
- Code 8892714
Product Documentation
More from Schneider Electric
Schneider Electric
Polyester mounting plate 600X400
NSYMPP64
Schneider Electric
Selector Switch Head flush 2 fixed black
ZB4FD2
Schneider Electric
Push-button, flush, black, raised (ZB4FH2)
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 240V AC 50/60Hz coil, snap-in terminals LC1D12AU7
Schneider Electric

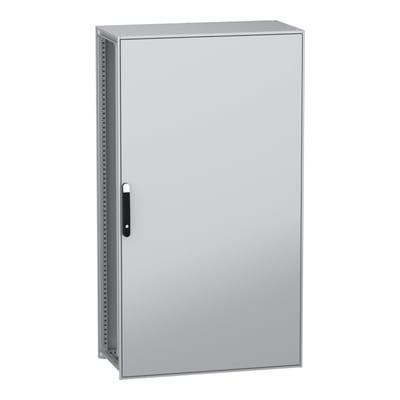

Floor-standing cabinet SFN m/m.pl 1800X1000X500
NSYSFN181050P
Schneider Electric

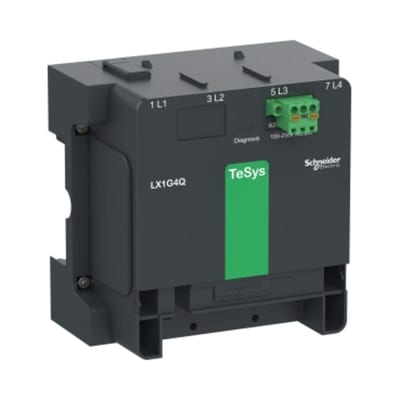

Coil 48-130V Std 4P G265-330
LX1G4REHEN
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 277V AC 50/60Hz coil, snap-in terminals LC1D09AW7
Schneider Electric

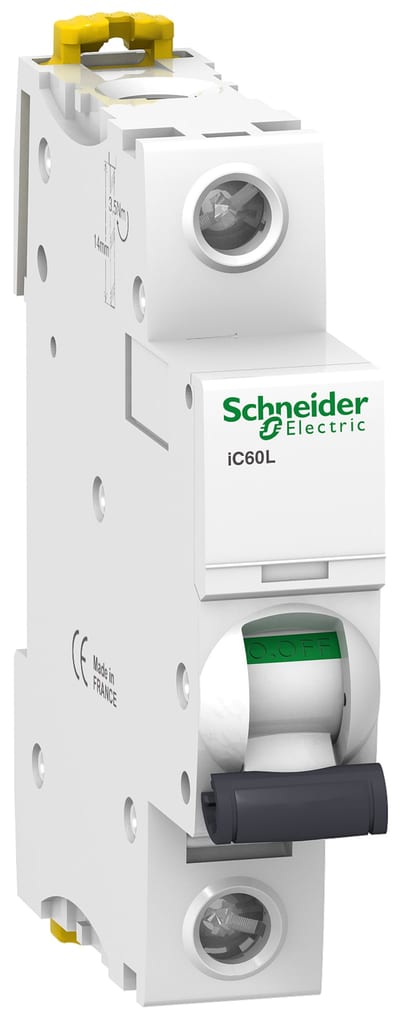

Schneider Electric A9F92103 ACTI9 IC60L Miniature Circuit Breaker 1P 3 A, Curve Z
