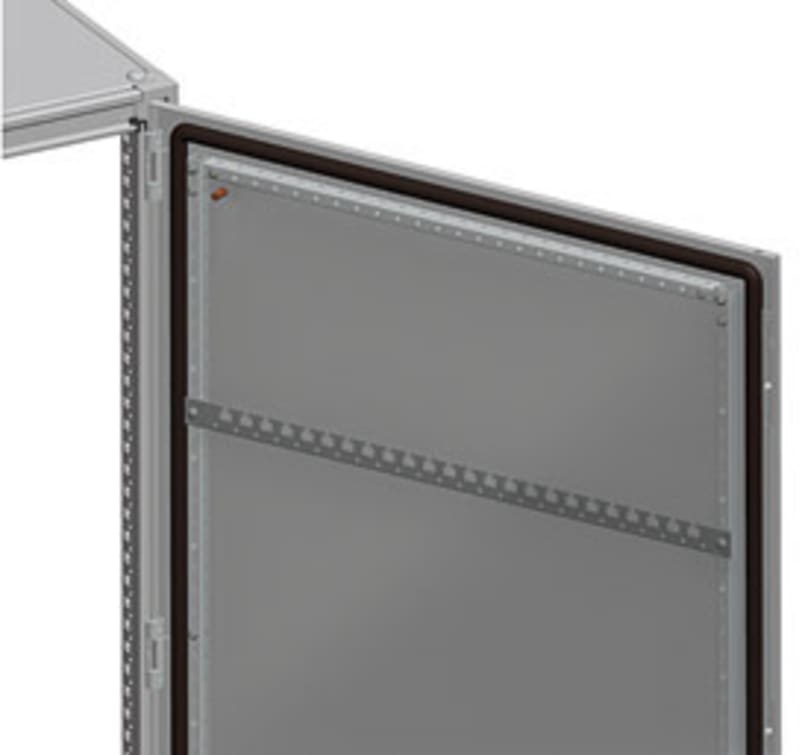

Schneider Electric NSYSDGCR8 PanelSeT Door Cable-Guide Cross Rail 800 mm

Schneider Electric NSYSDGCR8 is a galvanised-steel door cable-guide cross rail for the PanelSeT SF, SFN, SM, SFX and SMX enclosure ranges, with a nominal width of 800 mm and fixing centres of 650 mm. The set of two rails mounts on the door reinforcement frame with 25 mm height adjustment.

Manufacturer part number (MPN)

NSYSDGCR8

EAN / GTIN

3606485131412

Sales unit

pcs

Range

PanelSeT

Product or component type

Door cable-guide cross rail

Application

Multi-purpose

Nominal dimensions of the housing

-

Mounting location

On door reinforcement frame

Range compatibility

PanelSeT SF SF, SM, SFX and SMX enclosures

Device composition

Fixing elements; 2 x cross rails

Quantity per set

Set of 1

Material

Steel

Surface finish

Galvanized

Adjustment

Adjustable in height every 25 mm for on door reinforcement frame

Height

30 mm

Width

Nominal: 800 mm; Fixing centers: 650 mm

Depth

13 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

4.500 cm

Package 1 Length

68.500 cm

Package 1 Weight

780.000 g

Unit Type of Package 2

PAL

Number of Units in Package 2

50

Package 2 Height

29.000 cm

Package 2 Width

37.500 cm

Package 2 Length

120.000 cm

Package 2 Weight

39.000 kg

Country of origin

FR

Warranty (in months)

18

Model

Cable guard rail

Suitable for 19 inch mounting

No

Number of height units

16

HS Code

7326.90

• EAN 3606485131412
• SAP 1000089769
• Code 8883561
