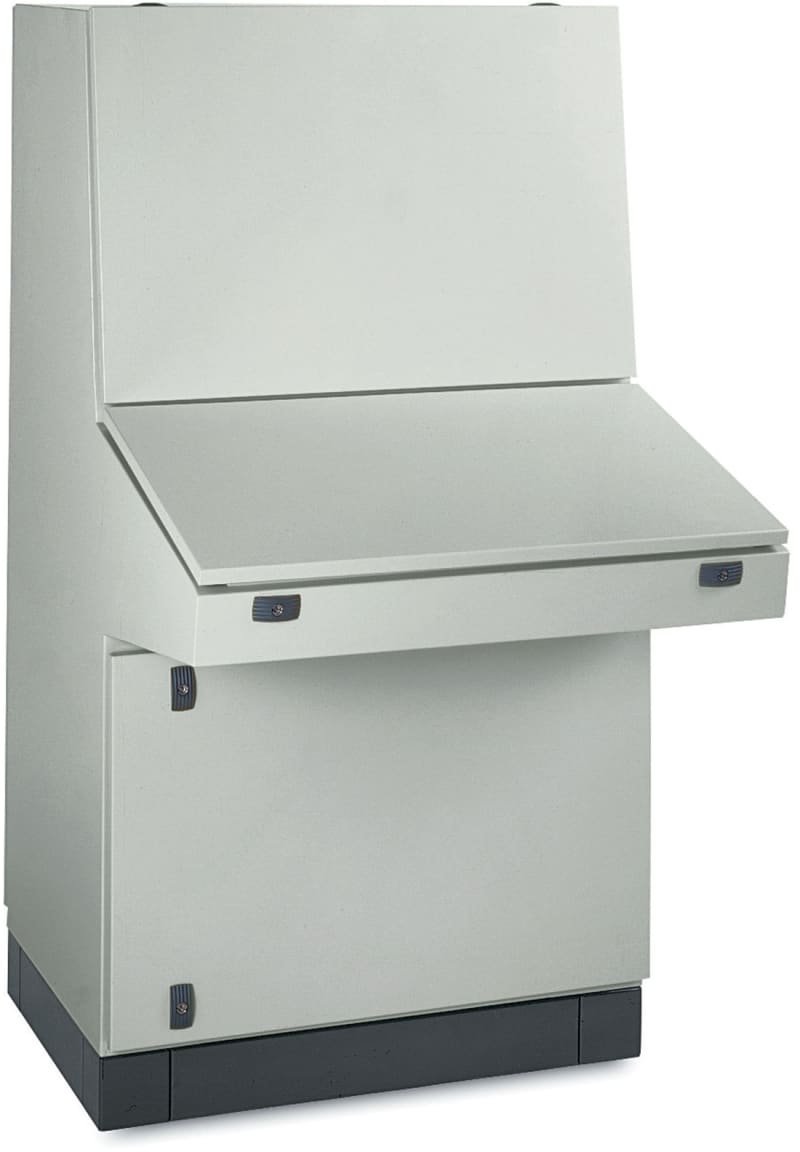

Schneider Electric PanelSeT SD Control desk with console - H1400XW1200XD845 - IP55 NSYSDF128
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDF128 Control desk 12X14X4.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDF128
- EAN / GTIN
- 3606480162930
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Control desk with console and desk
- Nominal height
- 1400 mm
- Nominal width
- 1200 mm
- Nominal depth
- 845 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid; 1 front console door; 1 desk lid; 2 mechanical stay: front console door; 6 lock: front door; 1 handle lock: rear door; 2 front door; 2 rear door
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 2 door(s); Rear: 2 door(s)
- Door opening side
- Reversible 120 ° front and rear doors; Folding 75 ° desk lid and console cover
- Lock type
- Handle lock, 5 mm double bar; 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Front; Rear
- Removable parts
- Desk lid by hinges; Cable gland plate by clipping screws; Front door by hinges; Front console door by hinges; Rear door by hinges
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 154.000 cm
- Package 1 Width
- 122.500 cm
- Package 1 Length
- 86.000 cm
- Package 1 Weight
- 119.800 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1400 mm
- Depth
- 845 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Desk console
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480162930
- SAP 1000089761
- Code 8915155
Product Documentation
More from Schneider Electric
Schneider Electric
Glassdoor SFN/SM 1200X800
NSYSFND128T
Schneider Electric
Mounting Plate TELEQ. 450X800
NSYSTMP4580
Schneider Electric

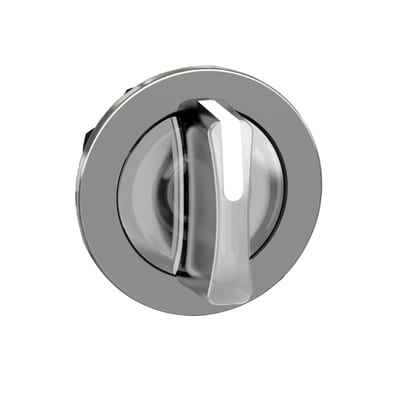

Selector switch flush for LED 3 pos white (ZB4FK1513)
Schneider Electric
Mounting Plate TELEQ. 450X1000
NSYSTMP45100
Schneider Electric

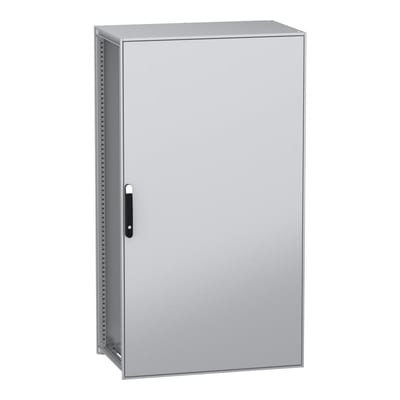

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1000X600MM, IP55 NSYSFN181060
Schneider Electric

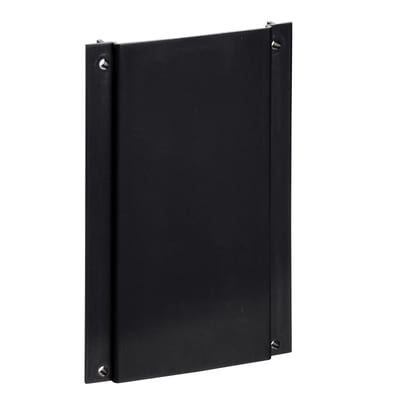

Fr.connection.top MTZ32 3PFAST res.
LV847992SP
Schneider Electric
PLA57 Telequick mounting plate
NSYPMR57
Schneider Electric

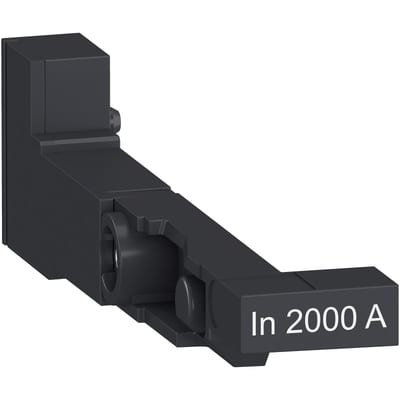

Schneider Electric Sensor plug, MasterPact MTZ2 with MicroLogic X, 2000A rating, spare part LV833982SP
