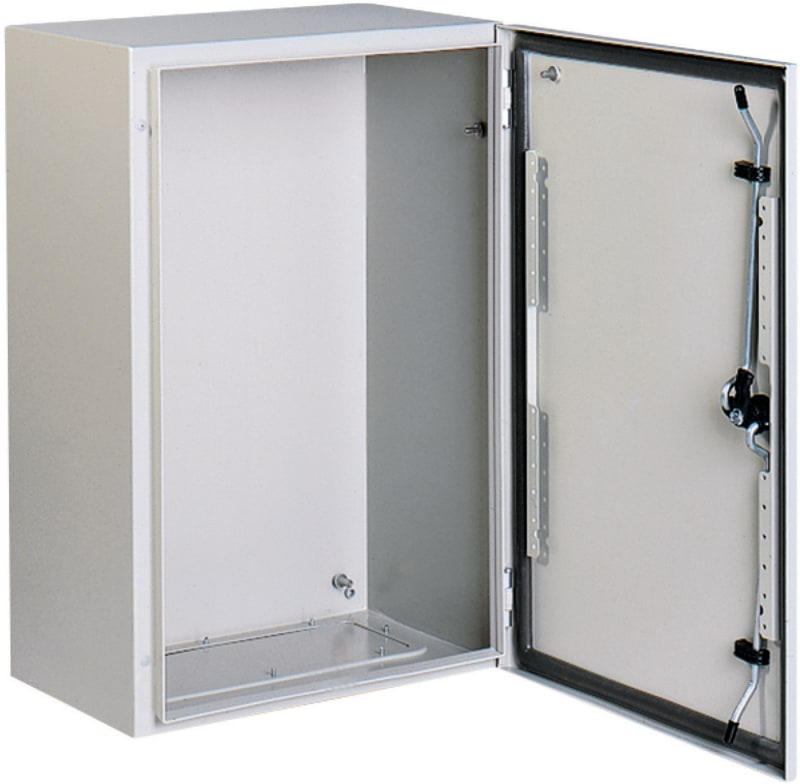

Schneider Electric PanelSet S3DEX (ATEX certified) H500XW400XD200 .IP66 IK10 RAL7035. NSYS3DEX5420
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DEX5420 S3D Eex 5X4X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DEX5420
- EAN / GTIN
- 3606480158636
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3DEX
- Application
- ATEX certified application
- Category
- Compact enclosure
- Enclosure nominal height
- 500 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting
- Product destination
- For potentially explosive atmosphere
- Device composition
- 1 door; 1 lock; body with clamped blind nut
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- Double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- EN 60079-0:2012; EN 60079-7:2007; EN 60079-31:2009
- Marking
- II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
- Product weight
- 9.5 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529 (enclosures with single door)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25.000 cm
- Package 1 Width
- 41.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 8.580 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 30
- Package 2 Height
- 170.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 270.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 400 mm
- Height
- 500 mm
- Depth
- 200 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- Yes
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158636
- SAP 1000089668
- Code 8840135
