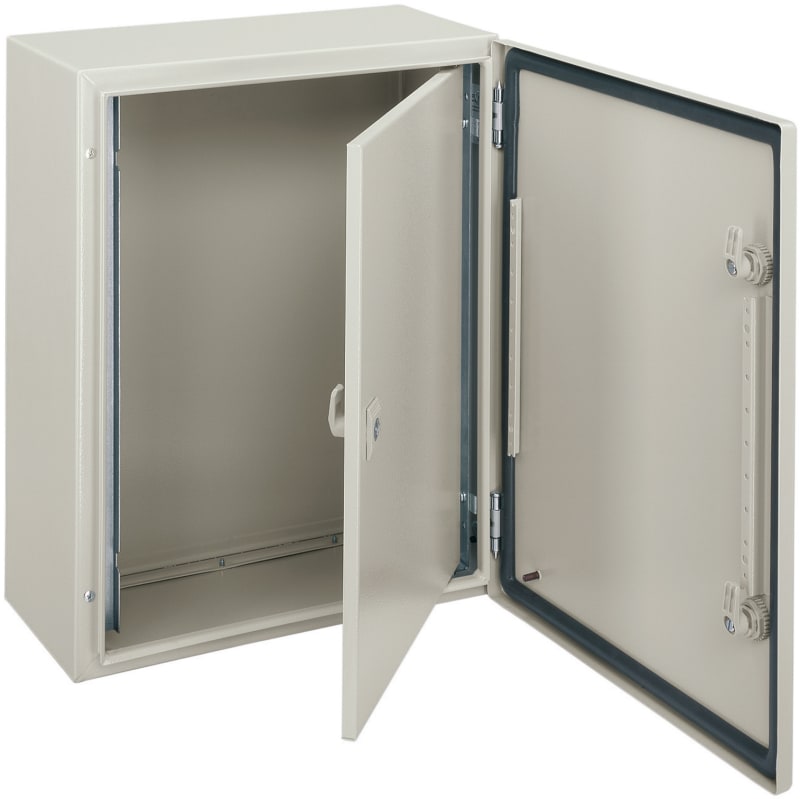

Innerdoor 8X6 (NSYPIN86)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPIN86 Inner door 8X6.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPIN86
- EAN / GTIN
- 3606480168536
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Step slide; Front side
- Range compatibility
- PanelSeT CRN; PanelSeT S3D; PanelSeT S3X
- Device composition
- 1 door; 4 fixing brackets; 2 mounting uprights
- Material
- Door: sheet steel
- Colour
- All faces: grey (RAL 7035)
- Surface finish
- Polyester powder
- Lock type
- Lock 3 mm double bar
- Number of locks
- 1
- Adjustment
- Pitch 25 mm (on step slides)
- Door type
- Internal plain
- Door opening side
- Reversible
- Maximum load
- 30 kg/m²
- Height
- Nominal: 800 mm
- Width
- Nominal: 600 mm
- Product weight
- 6.2 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 56.000 cm
- Package 1 Length
- 77.000 cm
- Package 1 Weight
- 6.150 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 20
- Package 2 Height
- 63.500 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 136.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Inner door
- Depth
- 12 mm
- EMC-version
- No
- Degree of protection (IP)
- IP66
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480168536
- SAP 1000089319
- Code 8914143
