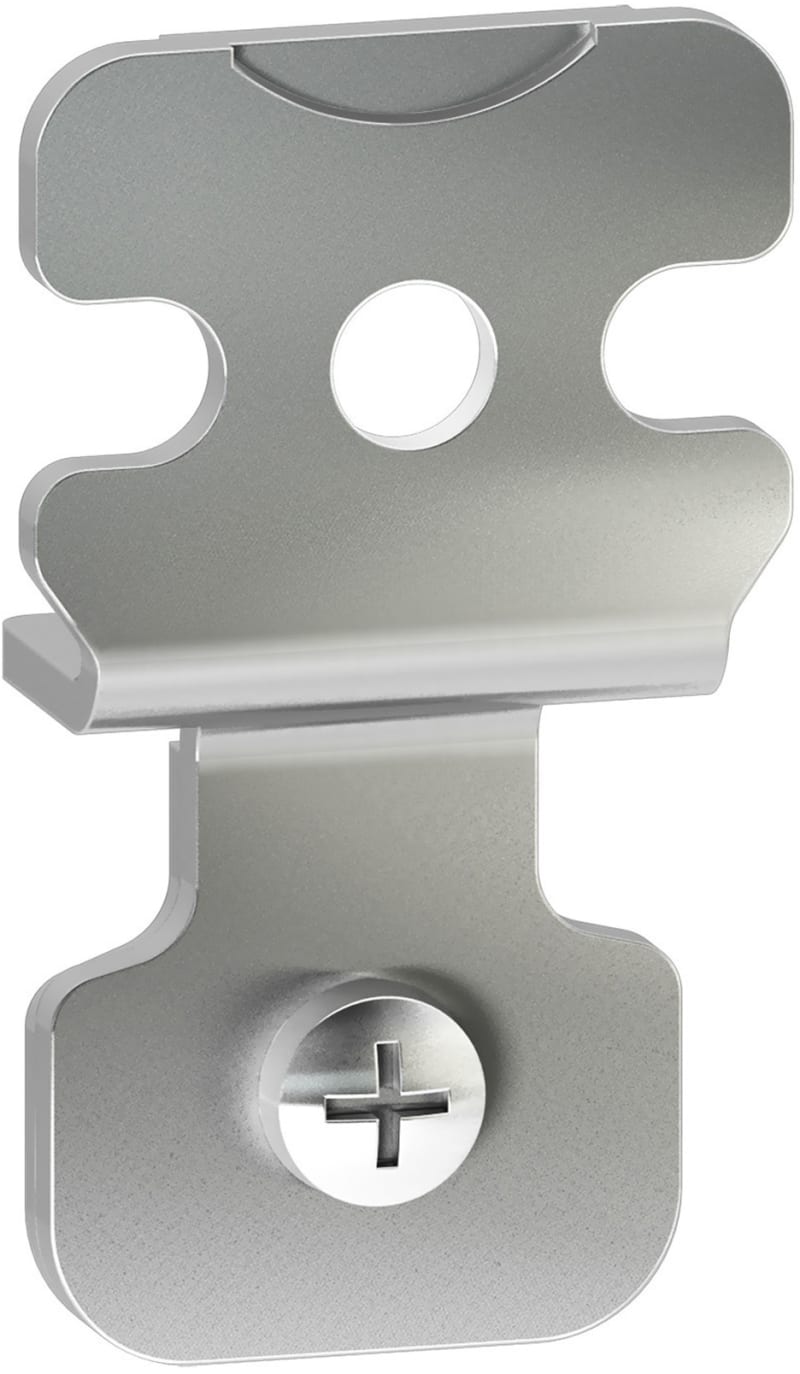

Schneider Electric NSYPFCX 4 wall fixing brackets in stainless steel AISI 304 for PanelSeT S3X
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYPFCX 4 wall fixing brackets in stainless steel AISI 304 for PanelSeT S3X is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 4 pcs; Range: PanelSeT; Product or component type: Wall fixing support; Device application: Multi-purpose; Mounting location: Rear of enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPFCX
- EAN / GTIN
- 3606480154867
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Wall fixing support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Rear of enclosure
- Installation accessory type
- Horizontal or vertical position
- Range compatibility
- PanelSeT CRN; PanelSeT S3X
- Device composition
- fixing screws; 4 lug; 4 pre-mounted sealing gasket
- Quantity per set
- Set of 1
- Material
- Stainless steel 304
- Fixing mode
- Screwed - screw type M8; Screwed - screw type M6
- Permanent permissible load
- 250 kg; 249.9 kg
- Height
- Real: 74 mm
- Width
- Real: 42 mm
- Depth
- Wall-enclosure separation : 12 mm; Wall-enclosure separation : 11.94 mm
- Product weight
- 0.3 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 15.500 cm
- Package 1 Length
- 8.000 cm
- Package 1 Weight
- 292.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 40
- Package 2 Height
- 26.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 12.050 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 480
- Package 3 Height
- 100.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 158.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
Standards & Compliance
- HS Code
- 8302.41
Cross References
- EAN 3606480154867
- SAP 1000089310
- Code 8914122
Product Documentation
More from Schneider Electric
Schneider Electric
UFB-900 FLOORB.GR .Complete
5197055
Schneider Electric
Schneider Electric Set of 2 lifting eyes M8. Maximum load: 210kg NSYAELYTCRG8
Schneider Electric
Screw Clip TCS-C5M 8-12 White
2191510
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A C10N4TM080
Schneider Electric
Int. battery Micrologic X res.
LV833593SP
Schneider Electric
Exxact KNX Pressure 4-Button White
WDE002933
Schneider Electric

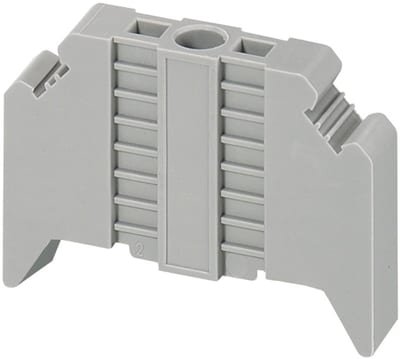

End stop 9,5mm for 35mm DIN
NSYTRAABV35
Schneider Electric

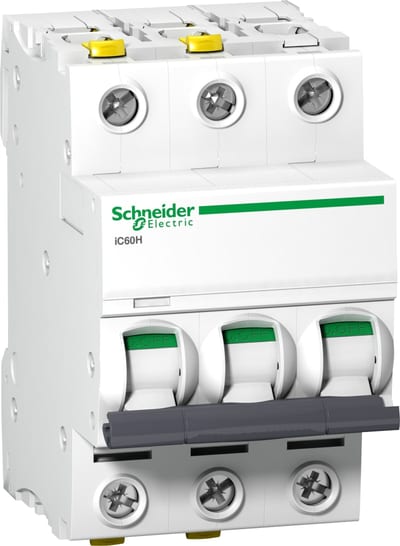

Schneider Electric A9F07301 ACTI9 IC60H Miniature Circuit Breaker 3P 1 A, Curve C
