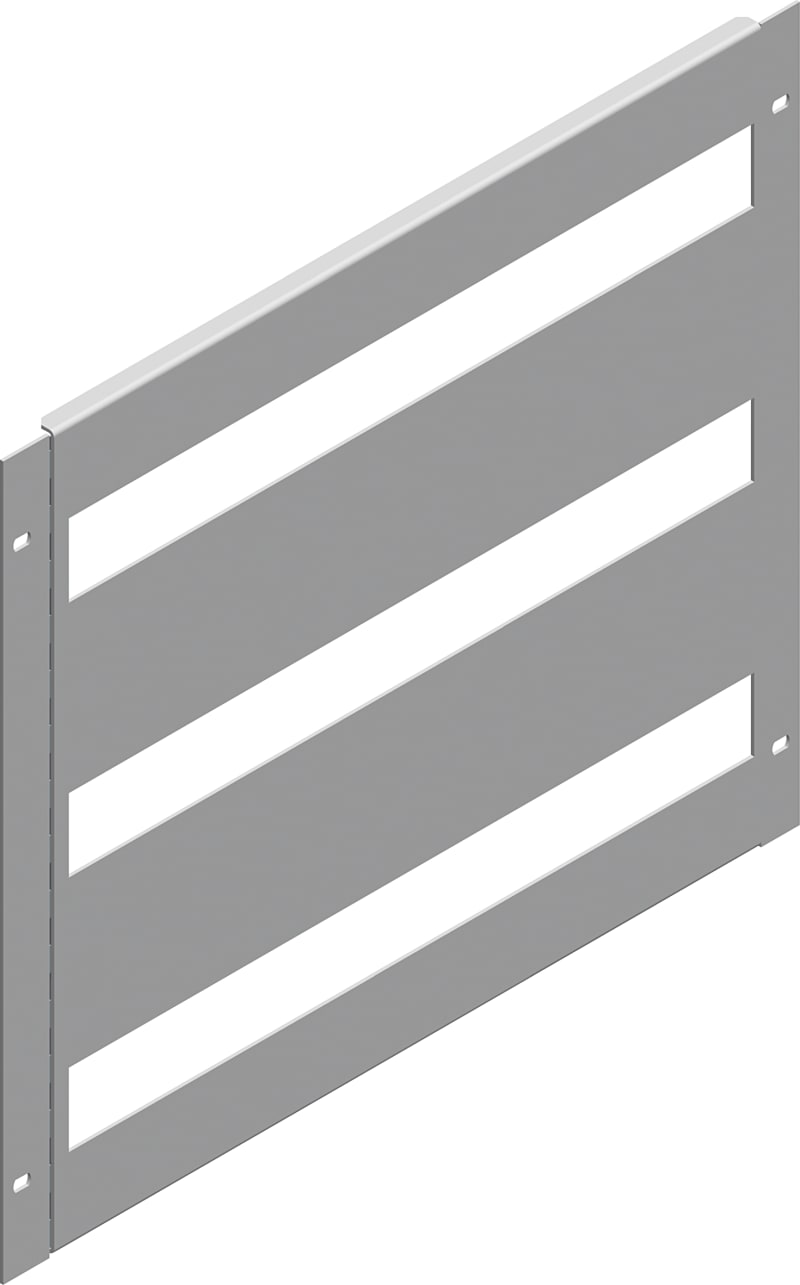

Modular Cover with Hinge (NSYMUCH408)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMUCH408 Modular Cover With Hinge.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMUCH408
- EAN / GTIN
- 3606480066405
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Cover plate
- Anwendung
- Multi-purpose
- Range compatibility
- PanelSeT SF SF; PanelSeT SM
- Nominal dimensions of the housing
- - H: 400 mm W: 800 mm
- Mounting location
- On chassis coupling set
- Device composition
- fixing elements; 1 cover plate
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws
- Number of horizontal rows
- 2
- Total number of 18 mm modules
- 72
- Type of front plate
- Hinged with cut-out
- Number of cut-out
- 2 cut-outs
- Height
- Nominal: 400 mm; Real: 399.5 mm
- Width
- Nominal: 800 mm; Fixing centers: 678 mm; Real: 702 mm
- Depth
- Real : 12 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 40.000 cm
- Package 1 Length
- 71.000 cm
- Package 1 Weight
- 4.086 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 20
- Package 2 Height
- 34.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 94.430 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cover
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480066405
- SAP 1000089300
- Code 8581645
Product Documentation
