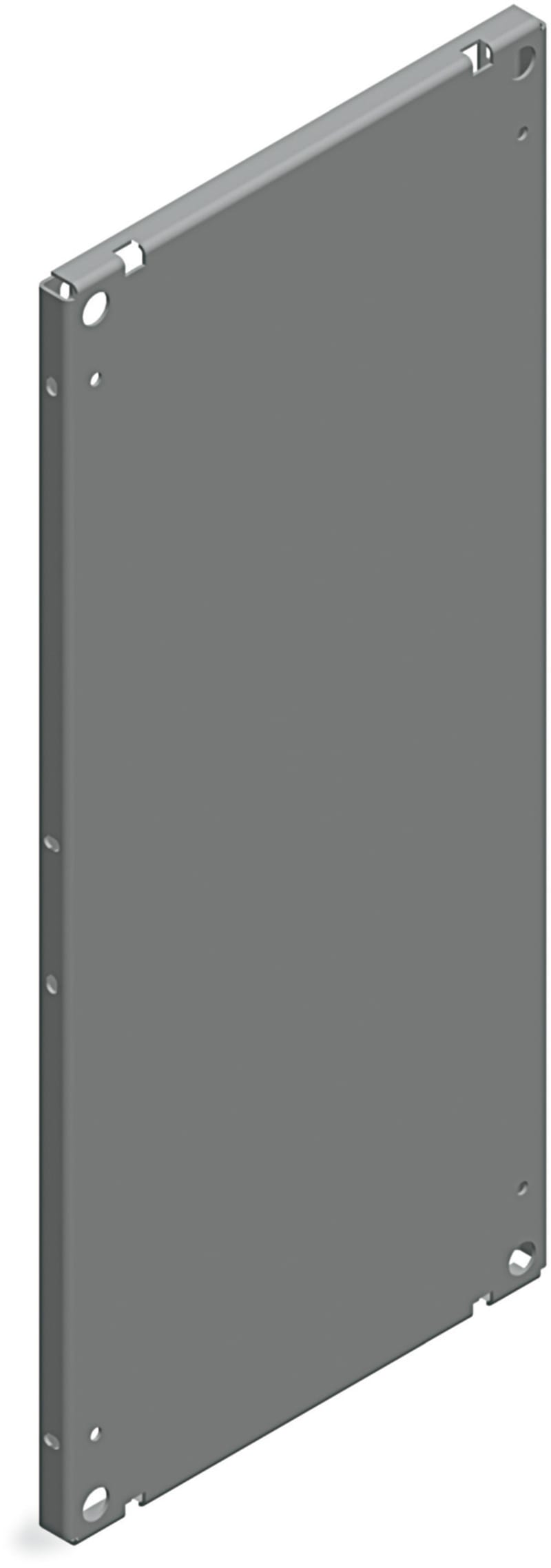

Mounting Plate 16X8 (NSYMP168)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP168 Mounting plate 16X8.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP168
- EAN / GTIN
- 3606485126814
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1600 mm W: 800 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1450 mm; Nominal: 1600 mm; Real: 1497 mm
- Width
- Nominal: 800 mm; Fixing centers: 650 mm; Real: 696 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 70.000 cm
- Package 1 Length
- 150.000 cm
- Package 1 Weight
- 25.500 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 80.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 540.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126814
- SAP 1000089210
- Code 8838871
Product Documentation
More from Schneider Electric
Schneider Electric
Side Plates SFN 1200X500 (NSY2SPN126)
Schneider Electric
Push-Button Head GREY (ZB5AA8)
Schneider Electric
Push-button, flush, red, raised (ZB4FH4)
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 110V AC standard coil, snap-in terminals CAD32AF7
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2000X1200X800 2DOOR
NSYSFN2012802DP
Schneider Electric
Doorer SFN/SM 2000X1000
NSYSFND20102D
Schneider Electric
Side Plates SFN 1600X600
NSY2SPN166
Schneider Electric
Innerdoor 7X5 (NSYPIN75)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYMP168?
- NSYMP168 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYMP168.
- What is the HS code for NSYMP168?
- The customs tariff (HS) code for NSYMP168 is 8302.42.
- Who manufactures NSYMP168?
- NSYMP168 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYMP168?
- Yes — the NSYMP168 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYMP168?
- The minimum order quantity is 1.
- Is NSYMP168 available?
- Yes — NSYMP168 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
