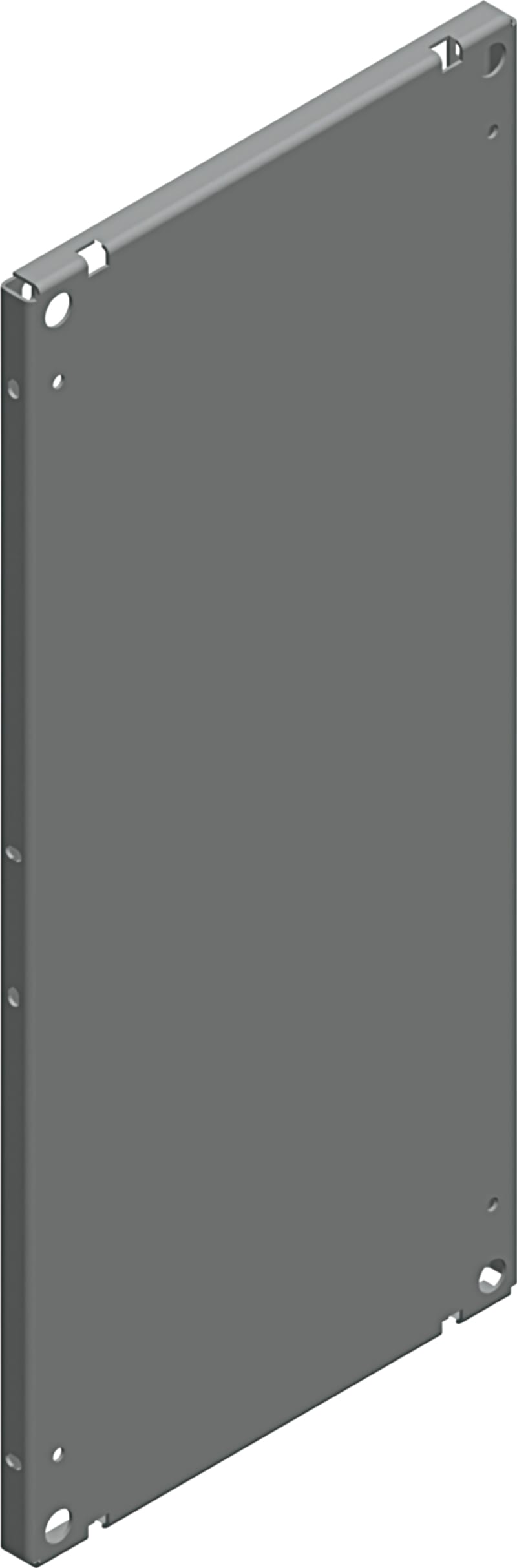

Mounting Plate 14X8 (NSYMP148)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP148 Mounting plate 14X8.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP148
- EAN / GTIN
- 3606485126791
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1400 mm W: 800 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1250 mm; Nominal: 1400 mm; Real: 1297 mm
- Width
- Nominal: 800 mm; Fixing centers: 650 mm; Real: 696 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 71.000 cm
- Package 1 Length
- 131.500 cm
- Package 1 Weight
- 21.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 79.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 461.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126791
- SAP 1000089206
- Code 8882146
Product Documentation
More from Schneider Electric
Schneider Electric
Side Plates SFN 2200X400
NSY2SPN224
Schneider Electric
Screw Terminal for XPSMC16
XPSMCTS16
Schneider Electric

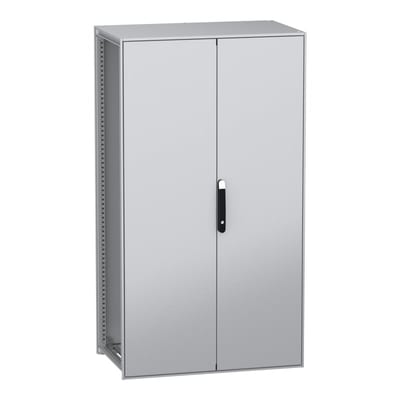

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1000X600MM, 2 doors, IP55 NSYSFN1810602D
Schneider Electric
Floor-Standing Cabinet 20X10X5 U.PL.
NSYSM2010502D
Schneider Electric
Floor-Standing Cabinet 18X10X4 M.PL. (2493782)
Schneider Electric

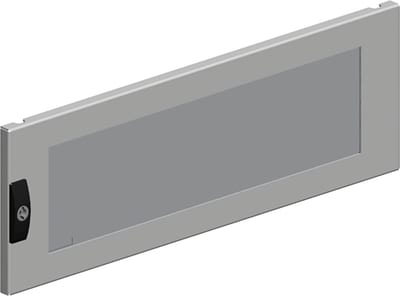

Schneider Electric PanelSet SF transparent door - 600X800 mm NSYMPD68T
Schneider Electric

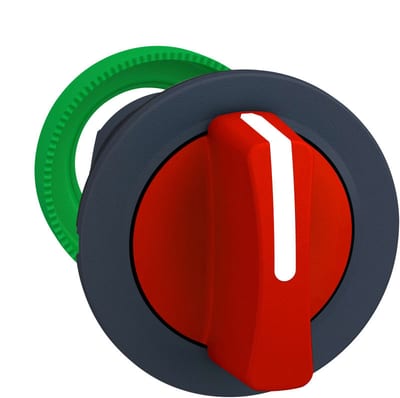

Schneider Electric flush mounted red selector switch head 3 pos stay put ZB5FD304
Schneider Electric

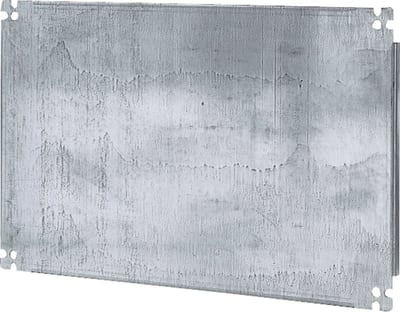

GALV.MOUNTING Plate 250X800
