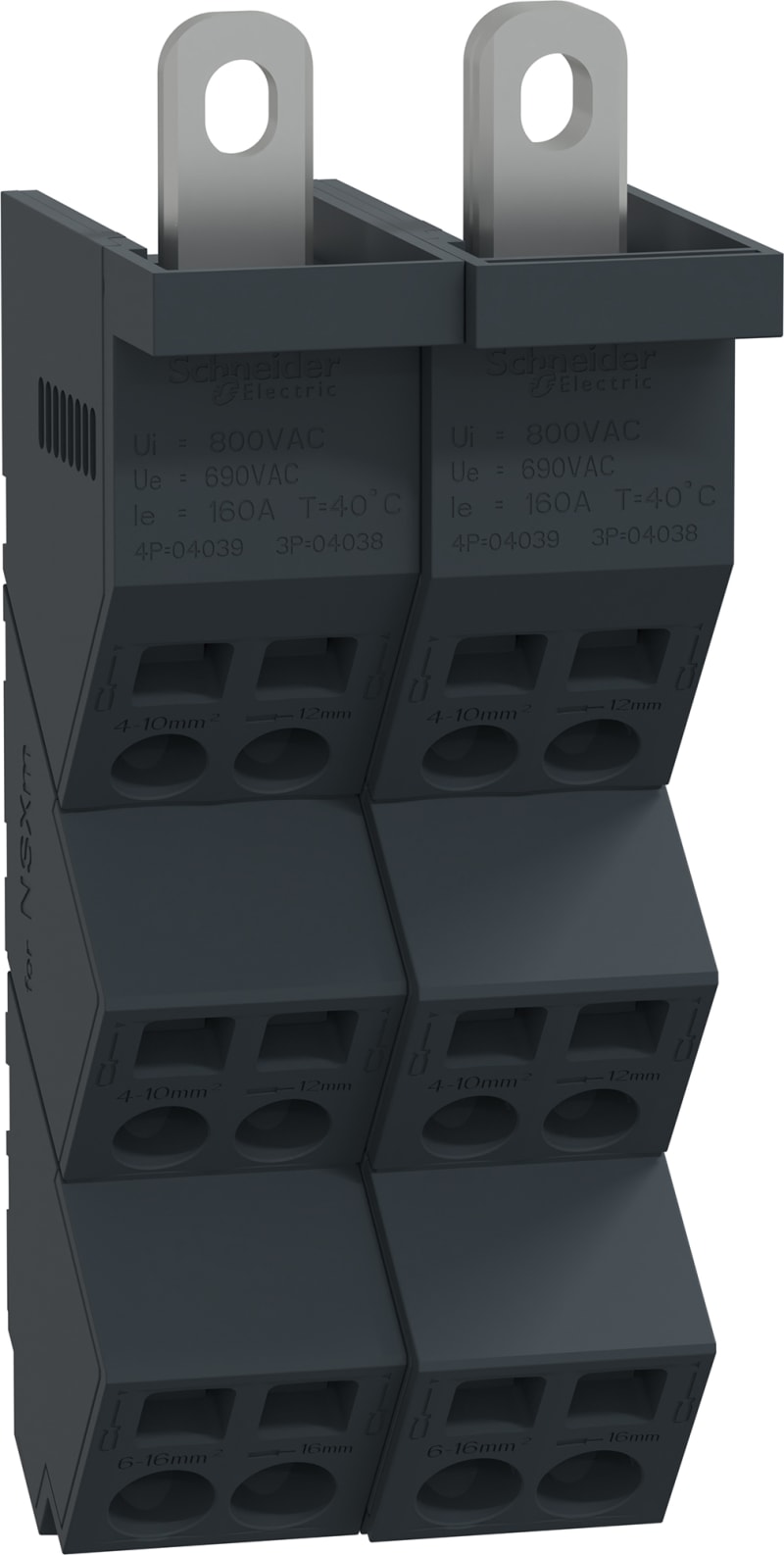

Schneider Electric LINERGY DP DISTRIBUTION BLOCK, 3P, 160 A, 18 OUTGOING TERMINALS, DIRECT CONNECTION TO NSXm LVS04038
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04038 Tilkoblingsblokk-3P-Linergy DP-for NSXm-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04038
- EAN / GTIN
- 3606481868138
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 3
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Distribution block
- Product name
- Linergy DP
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure; ComPact ComPact NSXm circuit breaker
- Accessory / separate part category
- Current distribution accessory
- IP degree of protection
- IPxx B
- Mounting support
- Prisma mounting plate; DIN rail
- Installed device
- ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm without earth leakage protection - control: direct front rotary handle - vertical installation
- Poles description
- 3P
- [Ue] rated operational voltage
- 690 V AC
- [Ui] rated insulation voltage
- 800 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 160 A at 40 °C
- [Ipk] rated peak withstand current
- 20 kA
- I²t on activation
- 4700000 A².s
- Connections - terminals
- Supply: lug (per phase) 70 mm²; Distribution: spring terminal (per phase) , 4 x 4…10 mm² (rigid or flexible) ; Distribution: spring terminal (per phase) , 2 x 6…16 mm² (rigid or flexible)
- 9 mm pitches
- 9
- Height
- 140 mm
- Width
- 81 mm
- Depth
- 58 mm
- Colour
- Anthracite grey (RAL 7016)
- Pollution degree
- 3
- Overvoltage category
- III
- Resistance to incandescent wire
- 960 °C conforming to IEC 60695-2-11
- Standards
- IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Ambient air temperature for operation
- -25…55 °C
- Country of origin
- FR
- Warranty (in months)
- 18
- Nominal current
- 160 A
- Mounting method
- DIN rail
- Connection type
- Without screws
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868138
- SAP 1200547269
- Code 82880347
