Schneider Electric

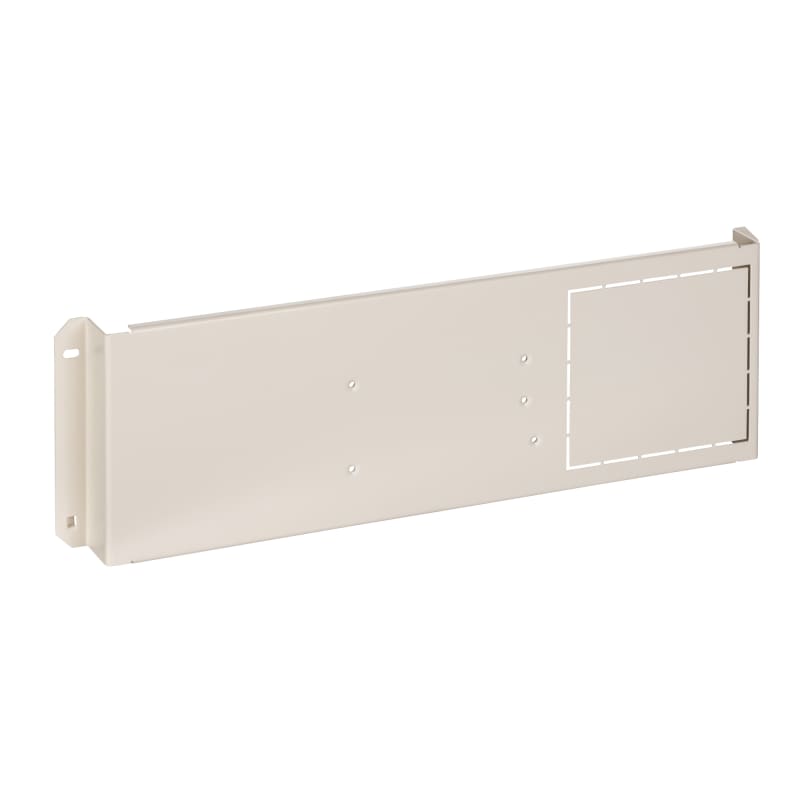

Mounting plate horizontal.-drei-NSXm PrismaSeT G
Part numberLVS03021EAN / GTIN3606481871473HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03021 Mounting plate horizontal.-drei-NSXm PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03021
- EAN / GTIN
- 3606481871473
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 850 mm; Floor-standing enclosure + duct - width 600 + 300 mm; Wall-mounted enclosure + duct - width 600 + 300 mm
- Mounting plate description
- Dedicated
- Installed device
- ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation
- Poles description
- 1 x 3P or 4P: fixed NSXm horizontal installation
- Number of vertical modules [50 mm]
- 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct; 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct; 3 module(s): NSXm without earth leakage protection , direct in 850 mm Widefloor-standing enclosure
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 470 mm
- Height
- 150 mm
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm; 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Number of Units in Package 3
- 128
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481871473
- SAP 1200547255
- Code 82879558
Product Documentation
Document preview: Schneider Electric LVS03021 — OEM Product Page
More from Schneider Electric
Schneider Electric
Mounting Plate 18X12
NSYMP1812
Schneider Electric
Mounting plate f/box 206X156
NSYPMD2015
Schneider Electric
PLA155 Telequick mounting plate
NSYPMR155
Schneider Electric

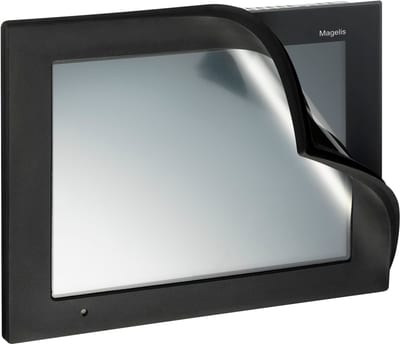

Schneider Electric HMIZDCOV7 Harmony GTU 15 in. Protective Cover, IP67
Schneider Electric

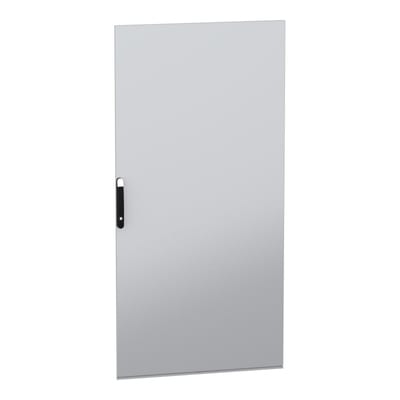

Door SFN/SM 2000X1000
NSYSFND2010
Schneider Electric

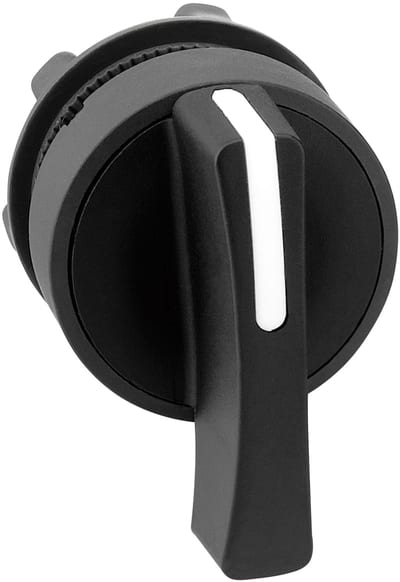

Selector Switch Head L.3 POSITIONS RET/FROM H
ZB5AJ8
Schneider Electric

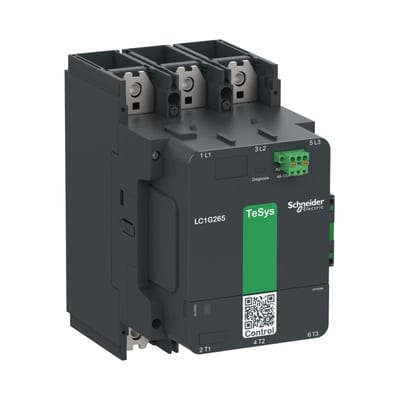

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 48…130V wide band AC/DC coil LC1G500EHEN
Schneider Electric

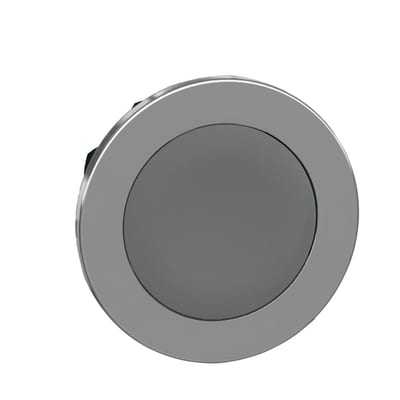

Push-button flush grey
