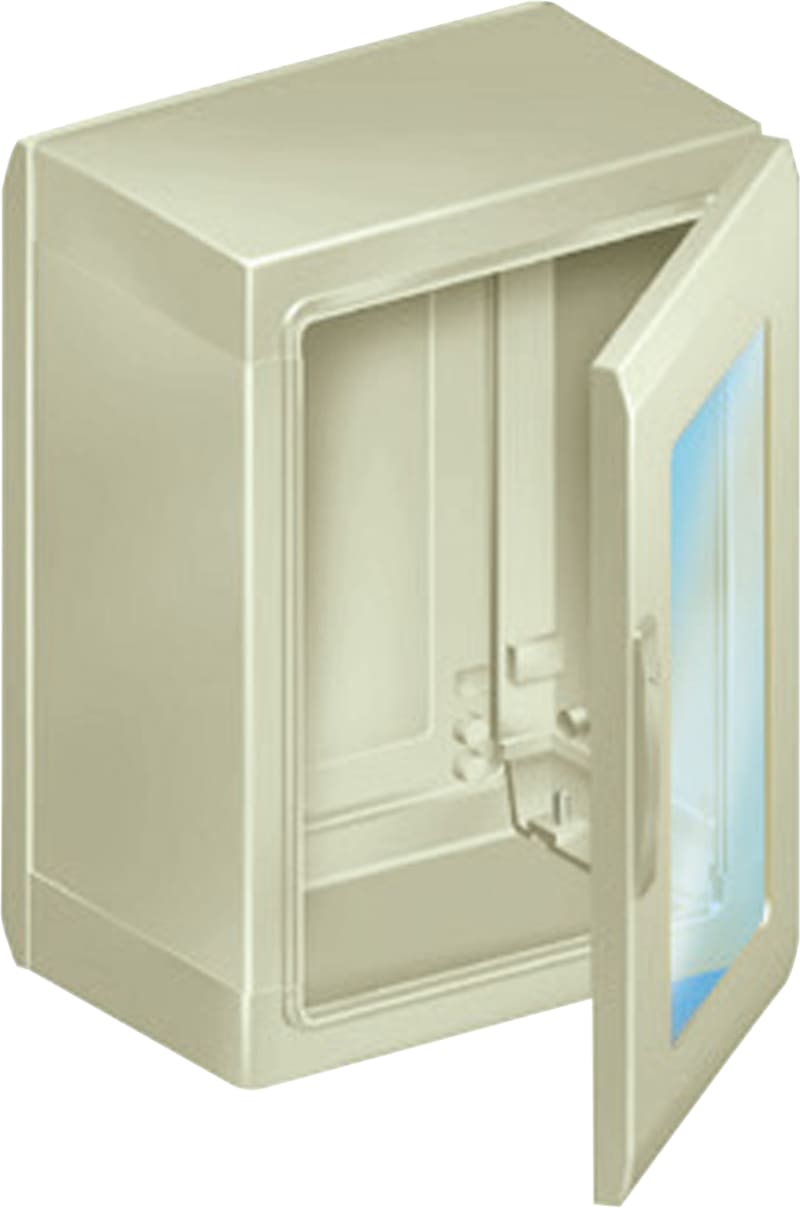

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 27X27X23CM NSYPLS2727AG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLS2727AG Transp PLS 7035 box27x27x23.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLS2727AG
- EAN / GTIN
- 3606480776847
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT PLS
- Device short name
- PLS
- Enclosure type
- Multi-purpose
- Category
- Insulating modular box
- Nominal height
- 270 mm
- Nominal width
- 270 mm
- Nominal depth
- 230 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 cover: on enclosure; 1 rear part: on enclosure; locking screws
- Body type
- One piece moulded
- Type of front cover
- High transparent cover
- Lock type
- Slot screw
- Removable parts
- Cover locking screw
- Material
- Cover: polycarbonate; Rear: polyester reinforced with fibreglass
- Colour
- Body: grey (RAL 7035)
- Standards
- NEMA 4X; IEC 62208; NEMA classification 13
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -30…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 28.500 cm
- Package 1 Length
- 28.500 cm
- Package 1 Weight
- 1.973 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 80
- Package 2 Height
- 132.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 178.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 270 mm
- Height
- 270 mm
- Depth
- 230 mm
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Polyester
- Impact strength
- IK09
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776847
- SAP 1200013080
- Code 81383408
