Schneider Electric

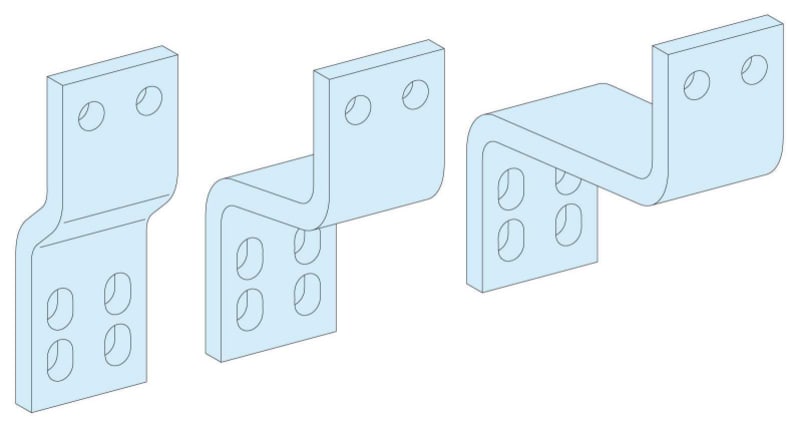

Canalis Connection-Front-NS/MTZ1 3P
Part numberLVS04711EAN / GTIN3606481884695HS code8536.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04711 Canalis Connection-NS/MTZ1-3P-Front Connection-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04711
- EAN / GTIN
- 3606481884695
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm: front
- Installed device
- ComPact: drawout NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: drawout NS1250 - control: direct front rotary handle vertical installation; ComPact: drawout NS630b...1000 - control: motor mechanism vertical installation; ComPact: drawout NS1250 - control: motor mechanism vertical installation; ComPact: drawout NS630b...1000 - control: toggle vertical installation; ComPact: drawout NS1250 - control: toggle vertical installation; ComPact: fixed NS630b...1000 - control: toggle vertical installation; ComPact: fixed NS1250 - control: toggle vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism vertical installation; ComPact: fixed NS1250 - control: motor mechanism vertical installation; Masterpact: fixed NT06...10 - control: toggle vertical installation; Masterpact: fixed NT06...10 - control: motor mechanism vertical installation; Masterpact: fixed NT12 - control: toggle vertical installation; Masterpact: fixed NT12 - control: motor mechanism vertical installation
- [Ie] rated operational current
- 1250 A
- Colour
- Natural
- Height
- 110 mm
- Width
- 50 mm
- Product weight
- 2.96 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 3P 1 front connection on Canalis 17
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Warranty (in months)
- 18
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481884695
- SAP 1200547472
- Code 82880351
