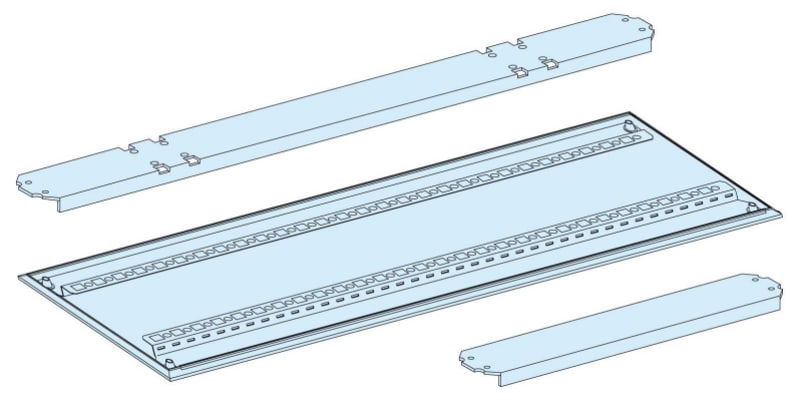

Schneider Electric Enclosure, PrismaSeT G, wall mounted/floor standing, without plinth, 11M, W600MM, H650MM, IP55 LVS08303
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08303 Wall-mount cabinet PrismaSeT G-630A-IP55 11 modules-width 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08303
- EAN / GTIN
- 3606481876515
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 11 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form; Weatherproof enclosure; Metal enclosure; Indoor enclosure
- Enclosure/cubicle description
- Wall-mounted enclosure - width 600 mm
- Kit composition
- uprights; rear plate; 2 side panel; top plate; bottom plate; 4 mouting bracket
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without to be ordered separately
- Number of vertical modules [50 mm]
- 11
- Number of 18 mm modules per row
- 24
- Standards
- IEC 61439-1; IEC 61439-2; IEC 62208
- Product certifications
- ASTA; EAC
- [Ui] rated insulation voltage
- 1000 V on main rear busbars conforming to IEC 61439-2
- Network frequency
- 50/60 Hz
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Short-circuit current
- 50 kA
- [Icw] rated short-time withstand current
- 25 kA 1 s conforming to IEC 61439-1
- [Ipk] rated peak withstand current
- 53 kA conforming to IEC 61439-1
- Electrical insulation class
- Class I
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 575 mm
- Height
- 650 mm
- Depth
- 260 mm
- Product weight
- 15.24 kg
- IP degree of protection
- IP55 with door
- IK degree of protection
- IK10 with door conforming to EN/IEC 62262
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606481876515
- SAP 1200547502
- Code 82880268
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting Plate from 3ME for 3P
LAD7X3
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 20 I O - 100..240 V AC - no clock - display SR2A201FU
Schneider Electric
Horizontal coupling 7035 PLA10X3
NSYMUPLA103G
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic multifunction circuit breaker - 12.5A 3P - Everlink GV4PEM12N
Schneider Electric
Floor-standing cabinet SFN m/m.pl 1800X800X500
NSYSFN18850P
Schneider Electric

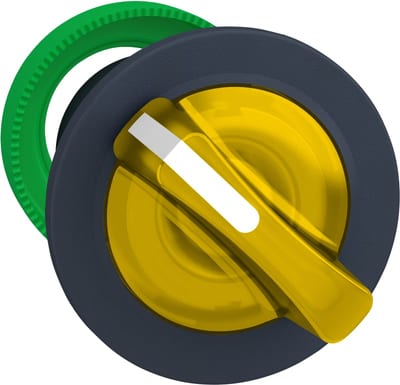

Selector switch flush for LED 2 pos yellow (ZB5FK1283)
Schneider Electric

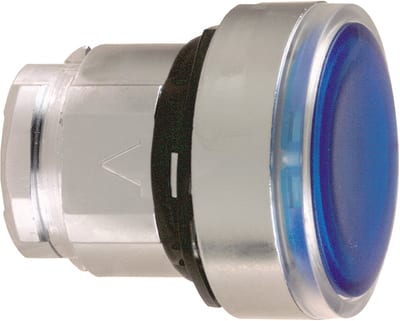

Push-Button Head BLUE TRANSP.
ZB4BA68
Schneider Electric

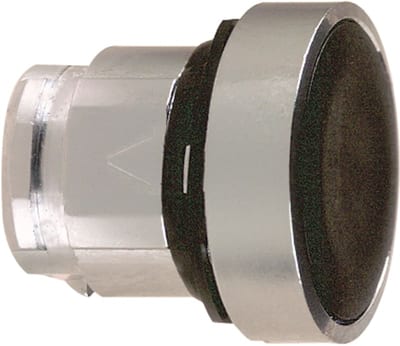

Push-Button Head Pressure/Pressure Black (ZB4BH02)
