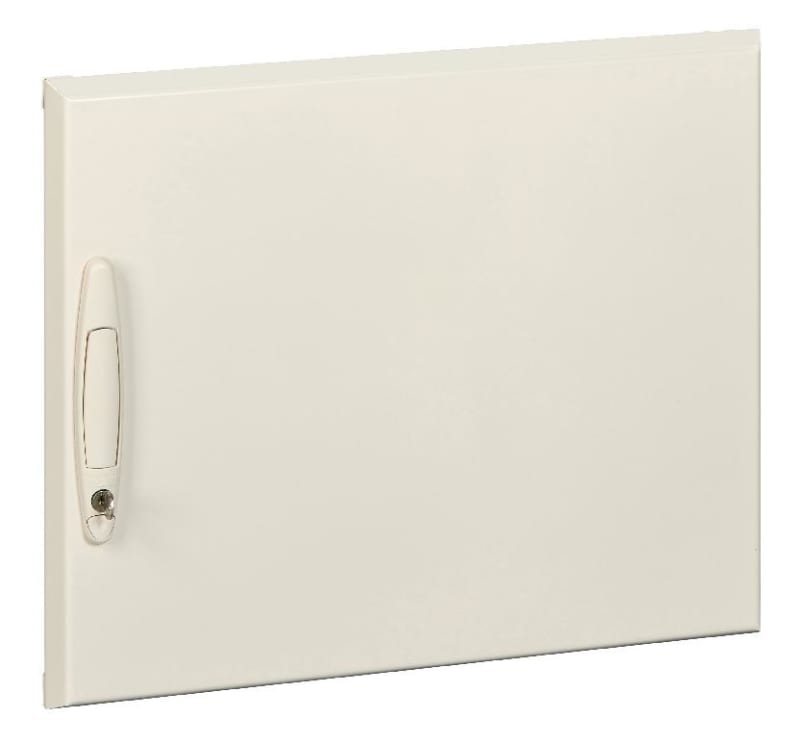

Door for PrismaSeT G cabinet 36MOD B600-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08225 Door for PrismaSeT G Floor-standing cabinet 36-modules -width 600mm-IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08225
- EAN / GTIN
- 3606481878236
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 36 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Plain
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Floor-standing enclosure - width 600 mm; Extension enclosure - width 600 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 36
- Enclosure material
- Handle: polyamide; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1816.6 mm
- Width
- 600 mm
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 33 mm
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878236
- SAP 1200546941
- Code 82880696
