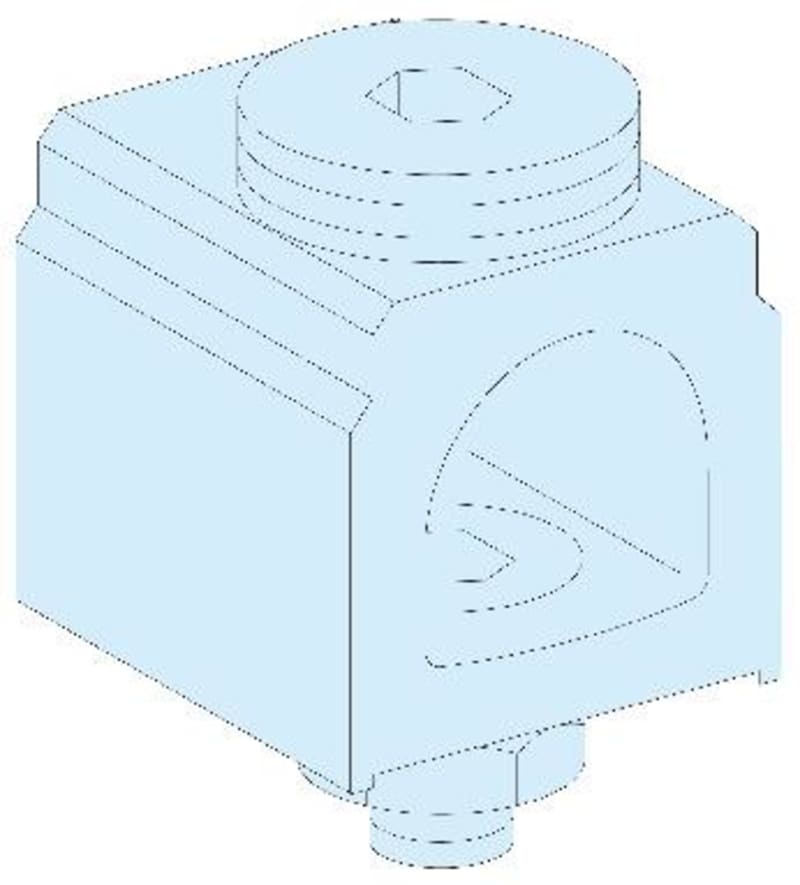

TERMINALS-4 pcs Cu/Al 400A 300 mm²-LINERGYBS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS07053 Terminals-4 pcs Cu/Al 400A 300mm2-Linergy BS rails-PrismaSeT.
Technical Specifications
- Manufacturer part number (MPN)
- LVS07053
- EAN / GTIN
- 3606481868312
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Rated current
- 400 A
- Conductor cross-section
- 300 mm²
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connector for cable
- Product name
- Linergy BS
- Accessory / separate part category
- Connection accessory
- Range compatibility
- Linergy Linergy BS busbar; PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Product compatibility
- M12 drilled busbar
- Poles description
- 1P
- Enclosure/cubicle description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- [Ie] rated operational current
- 400 A
- Connections - terminals
- Screw terminal300 mm² rigid
- Conductor material
- Copper; Aluminium
- Quantity per set
- Set of 4
- Height
- 37 mm
- Width
- 36 mm
- Depth
- 37 mm
- Product weight
- 0.545 kg
- Colour
- Natural
- Warranty (in months)
- 18
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868312
- SAP 1200547208
- Code 82880450
