TILK.1600A Hor.Rail 5MM/Linergy LGYE
Pricing
Request a quote
We reply within 24 hours
Product Description

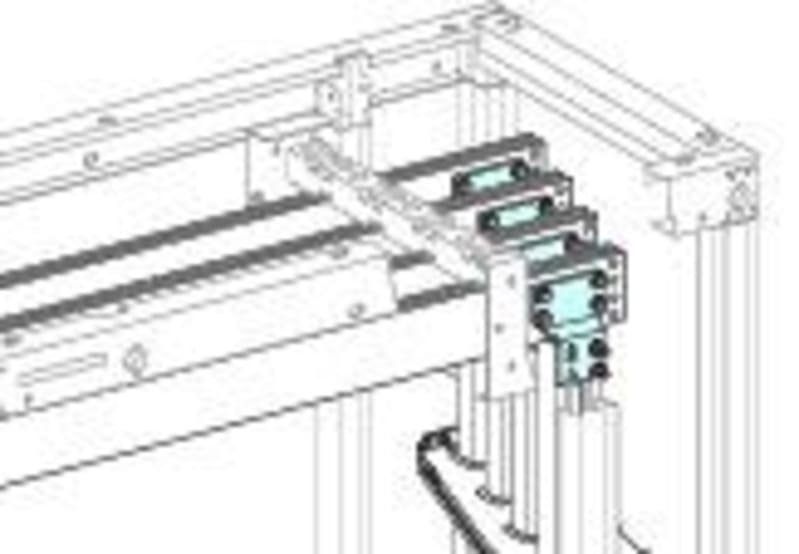

Schneider Electric LVS04635 Connection Plate between 5mm horizontal busbar and vertical Linergy LGYE-1600A-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04635
- EAN / GTIN
- 3606481884602
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGY
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar; 5 mm horizontal busbar
- installation description
- Cubicle duct - width 300 mm
- [Ie] rated operational current
- 1600 A
- Product weight
- 0.52 kg
- Quantity per set
- Set of 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 80
- Warranty (in months)
- 18
- Type of connection
- Field/field
- Rated current
- 1600 A
- Number of poles
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481884602
- SAP 1200546997
- Code 82880103
