Busbar Horizontal-LinergyLGYE 2500A

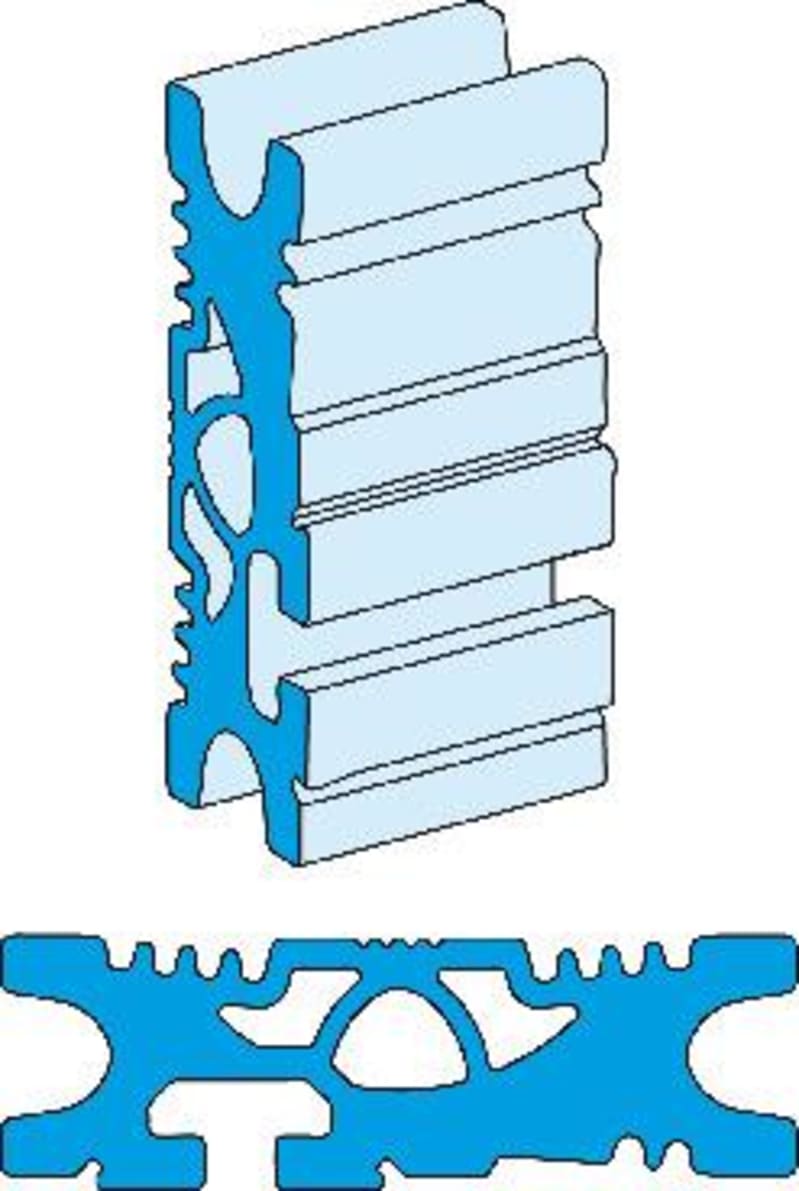

Schneider Electric LVS04566 Busbar Horizontal-Linergy LGYE for mounting in PrismaSeT P- length 2000mm- 2500A.

Manufacturer part number (MPN)

LVS04566

EAN / GTIN

3606481870605

Sales unit

pcs

Rated current

2500 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Accessory / separate part category

Busbar accessory

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

2500 A

[Icw] rated short-time withstand current

60 kA (1 s) for 2 supports (horizontal position); 85 kA (1 s) for 3 supports (horizontal position); 100 kA (1 s) for 4 supports (horizontal position)

Permissible current

2440 A at 35 °C: <= IP31; 2100 A at 35 °C: IP31

Length

2000 mm

Width

100 mm

Depth

31 mm

Product weight

9.25 kg

Colour

Natural

Type of busbar connection

Single t-slot

Connection pitch

Free connection position

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 cm

Package 1 Width

10.8 cm

Package 1 Length

210.4 cm

Package 1 Weight

10.662 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

48

Package 2 Height

41.0 cm

Package 2 Width

120.0 cm

Package 2 Length

202.0 cm

Package 2 Weight

536.0 kg

Country of origin

FR

Warranty (in months)

18

Model

Profile

Height

31 mm

Flexible

No

Surface protection

Untreated

Rated current In

2500 A

HS Code

7604.29

• EAN 3606481870605
• SAP 1200546981
• Code 82880151
